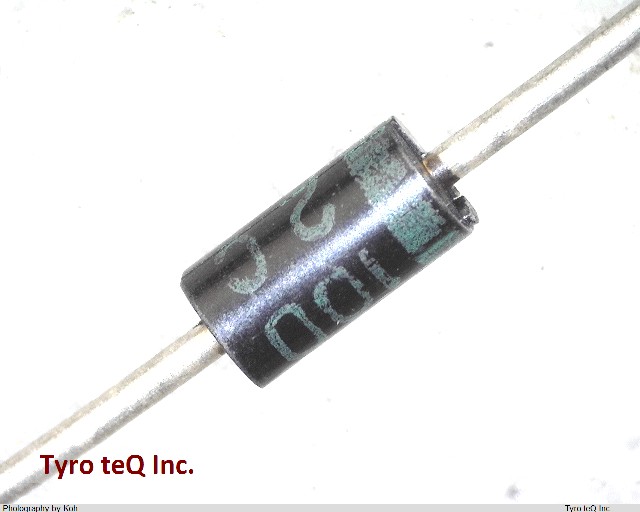

10D10
1
-
- 個
２営業日以内に回答いたします
10D10 の詳細情報
- 仕様・詳細
- メーカー情報
| 型番 | 10D10 |
|---|---|
| メーカー | IR |
| Application | GENERAL PURPOSE |
| Case Connection | ISOLATED |
| Configuration | SINGLE |
| Diode Element Material | SILICON |
| Diode Type | RECTIFIER DIODE |
| Forward Voltage-Max (VF) | 0.95 V |
| JEDEC-95 Code | DO-41 |
| JESD-30 Code | O-PALF-W2 |
| JESD-609 Code | e0 |
| Non-rep Pk Forward Current-Max | 50 A |
| Number of Elements | 1 |
| Number of Phases | 1 |
| Number of Terminals | 2 |
| Operating Temperature-Max | 150 Cel |
| Operating Temperature-Min | -40 Cel |
| Output Current-Max | 1 A |
| Package Body Material | PLASTIC/EPOXY |
| Package Shape | ROUND |
| Package Style | LONG FORM Meter |
| Qualification Status | Not Qualified |
| Rep Pk Reverse Voltage-Max | 1000 V |
| Sub Category | Rectifier Diodes |
| Surface Mount | NO |
| Terminal Finish | TIN LEAD |
| Terminal Form | WIRE |
| Terminal Position | AXIAL |
| 会社名称 | International Rectifier |
|---|---|
| 設立 | 1947 |
| 所在地 | 233 Kansas St., El Segundo, California 90245,USA |
| URL | http://www.irf.com/ |
