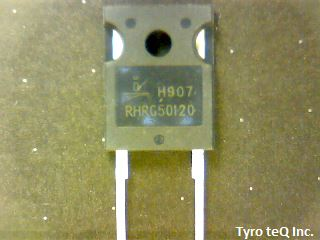

RHRG50120

Name: RHRG50120
Brand: INTERSIL
SKU: 280415457-0000-0000-0000

RHRG50120 - INTERSIL の商品詳細ページです。

２営業日以内に回答いたします

RHRG50120 の詳細情報

型番	RHRG50120
メーカー	INTERSIL
Additional Feature	FREE WHEELING DIODE
Application	HYPERFAST SOFT RECOVERY
Case Connection	CATHODE
Configuration	SINGLE
Diode Element Material	SILICON
Diode Type	RECTIFIER DIODE
Forward Voltage-Max (VF)	3.2 V
JEDEC-95 Code	TO-247
JESD-30 Code	R-PSFM-T2
JESD-609 Code	e0
Non-rep Pk Forward Current-Max	500 A
Number of Elements	1
Number of Phases	1
Number of Terminals	2
Operating Temperature-Max	175 Cel
Operating Temperature-Min	-65 Cel
Output Current-Max	50 A
Package Body Material	PLASTIC/EPOXY
Package Shape	RECTANGULAR
Package Style	FLANGE MOUNT Meter
Power Dissipation-Max	150 W
Qualification Status	Not Qualified
Rep Pk Reverse Voltage-Max	1200 V
Reverse Current-Max	500 uA
Reverse Recovery Time-Max	0.1 us
Sub Category	Rectifier Diodes
Surface Mount	NO
Technology	AVALANCHE
Terminal Finish	TIN LEAD
Terminal Form	THROUGH-HOLE
Terminal Position	SINGLE

会社名称	Intersil Americas LLC
設立	1967
所在地	1001 Murphy Ranch Road Milpitas, CA 95035 USA
URL	http://www.intersil.com/
