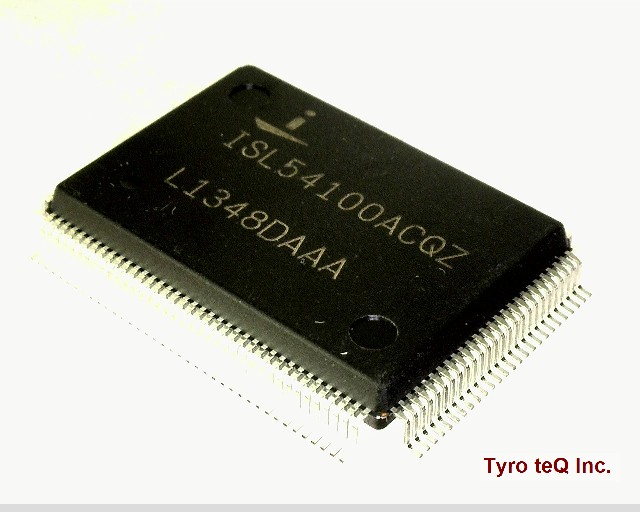

ISL54100ACQZ
1
-
- 個
２営業日以内に回答いたします
ISL54100ACQZ の詳細情報
- 仕様・詳細
- メーカー情報
| 型番 | ISL54100ACQZ |
|---|---|
| メーカー | INTERSIL |
| Consumer IC Type | CONSUMER CIRCUIT |
| JESD-30 Code | R-PQFP-G128 |
| JESD-609 Code | e3 |
| Length | 20 mm |
| Moisture Sensitivity Level | 2 |
| Number of Functions | 1 |
| Number of Terminals | 128 |
| Operating Temperature-Max | 70 Cel |
| Operating Temperature-Min | 0 Cel |
| Package Body Material | PLASTIC/EPOXY |
| Package Code | HFQFP |
| Package Equivalence Code | QFP128,.67X.93,20 |
| Package Shape | RECTANGULAR |
| Package Style | FLATPACK, HEAT SINK/SLUG, FINE PITCH Meter |
| Peak Reflow Temperature (Cel) | 260 |
| Power Supplies | 3.3 V |
| Qualification Status | Not Qualified |
| Seated Height-Max | 3.4 mm |
| Sub Category | Other Consumer ICs |
| Supply Current-Max | 435 mA |
| Supply Voltage-Max (Vsup) | 3.6 V |
| Supply Voltage-Min (Vsup) | 3 V |
| Surface Mount | YES |
| Temperature Grade | COMMERCIAL |
| Terminal Finish | MATTE TIN |
| Terminal Form | GULL WING |
| Terminal Pitch | 0.5 mm |
| Terminal Position | QUAD |
| Time@Peak Reflow Temperature-Max (s) | 30 |
| Width | 14 mm |
| 会社名称 | Intersil Americas LLC |
|---|---|
| 設立 | 1967 |
| 所在地 | 1001 Murphy Ranch Road Milpitas, CA 95035 USA |
| URL | http://www.intersil.com/ |
