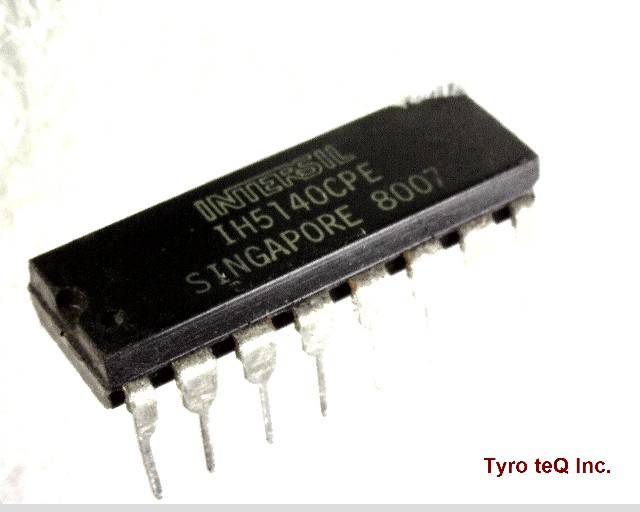

IH5140CPE データシート

Name: IH5140CPE
Brand: INTERSIL
SKU: 190052800-0000-0000-0000

IH5140CPE - INTERSIL の商品詳細ページです。

２営業日以内に回答いたします

IH5140CPE の詳細情報

型番	IH5140CPE
メーカー	INTERSIL
データシート
Analog IC - Other Type	SPST
JESD-30 Code	R-PDIP-T16
JESD-609 Code	e0
Length	19.17 mm
Moisture Sensitivity Level	1
Neg Supply Voltage-Nom (Vsup)	-15 V
Normal Position	NO V
Number of Channels	1
Number of Functions	1
Number of Terminals	16
Off-state Isolation-Nom	50 dB
On-state Resistance Match-Nom	5 ohm
On-state Resistance-Max (Ron)	75 ohm
Operating Temperature-Max	70 Cel
Operating Temperature-Min	0 Cel
Package Body Material	PLASTIC/EPOXY
Package Code	DIP
Package Equivalence Code	DIP16,.3
Package Shape	RECTANGULAR
Package Style	IN-LINE Meter
Peak Reflow Temperature (Cel)	245
Power Supplies	5,+-15 V
Qualification Status	Not Qualified
Seated Height-Max	4.572 mm
Sub Category	Multiplexer or Switches
Supply Voltage-Max (Vsup)	18 V
Supply Voltage-Min (Vsup)	4.5 V
Supply Voltage-Nom (Vsup)	15 V
Surface Mount	NO
Switch-off Time-Max	125 ns
Switch-on Time-Max	150 ns
Switching	BREAK-BEFORE-MAKE V
Technology	CMOS
Temperature Grade	COMMERCIAL
Terminal Finish	TIN LEAD
Terminal Form	THROUGH-HOLE
Terminal Pitch	2.54 mm
Terminal Position	DUAL
Width	7.62 mm
