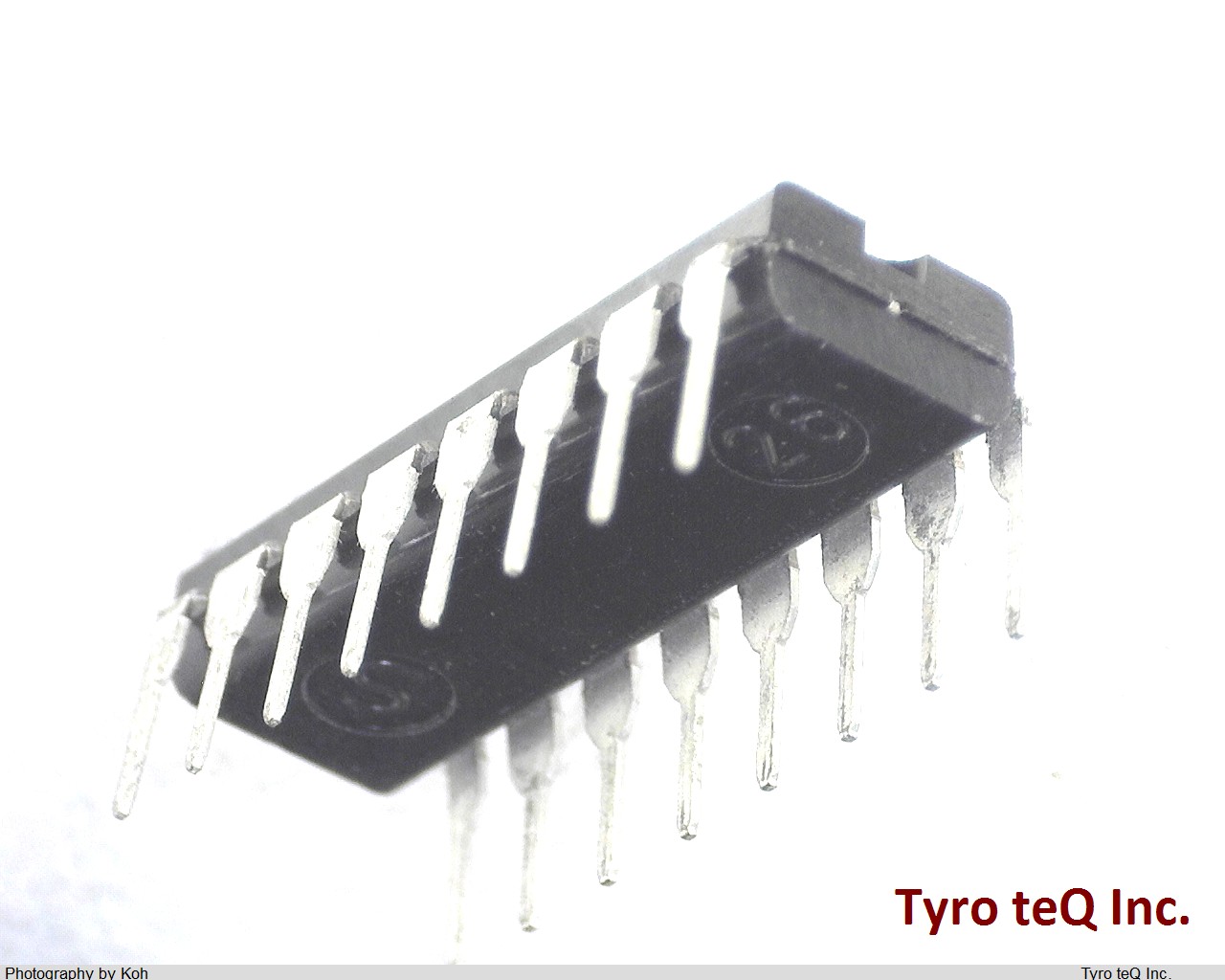

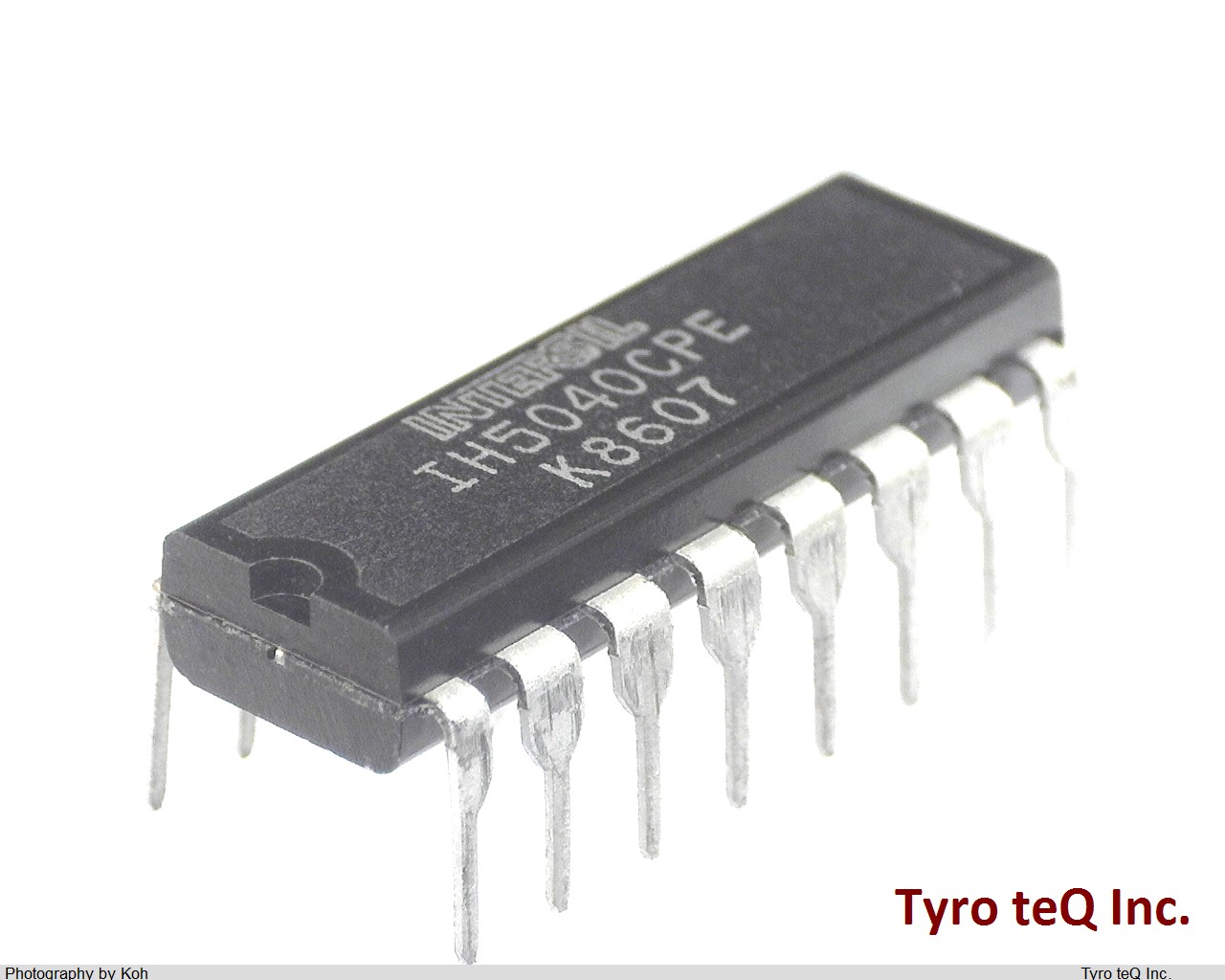

IH5040CPE

Name: IH5040CPE
Brand: INTERSIL
SKU: 190108131-0000-0000-0000

IH5040CPE - INTERSIL の商品詳細ページです。

２営業日以内に回答いたします

IH5040CPE の詳細情報

型番	IH5040CPE
メーカー	INTERSIL
Analog IC - Other Type	SPST
JESD-30 Code	R-PDIP-T16
JESD-609 Code	e0
Length	19.175 mm
Moisture Sensitivity Level	1
Neg Supply Voltage-Max (Vsup)	-18 V
Neg Supply Voltage-Min (Vsup)	-4.5 V
Neg Supply Voltage-Nom (Vsup)	-15 V
Normal Position	NO V
Number of Channels	1
Number of Functions	1
Number of Terminals	16
Off-state Isolation-Nom	50 dB
On-state Resistance Match-Nom	5 ohm
On-state Resistance-Max (Ron)	80 ohm
Operating Temperature-Max	70 Cel
Operating Temperature-Min	0 Cel
Package Body Material	PLASTIC/EPOXY
Package Code	DIP
Package Equivalence Code	DIP16,.3
Package Shape	RECTANGULAR
Package Style	IN-LINE Meter
Peak Reflow Temperature (Cel)	245
Power Supplies	5,+-15 V
Qualification Status	Not Qualified
Seated Height-Max	4.572 mm
Sub Category	Multiplexer or Switches
Supply Current-Max (Isup)	0.1 mA
Supply Voltage-Max (Vsup)	18 V
Supply Voltage-Min (Vsup)	4.5 V
Supply Voltage-Nom (Vsup)	15 V
Surface Mount	NO
Switch-off Time-Max	200 ns
Switch-on Time-Max	400 ns
Switching	BREAK-BEFORE-MAKE V
Technology	CMOS
Temperature Grade	COMMERCIAL
Terminal Finish	MATTE TIN
Terminal Form	THROUGH-HOLE
Terminal Pitch	2.54 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	30
Width	7.62 mm
