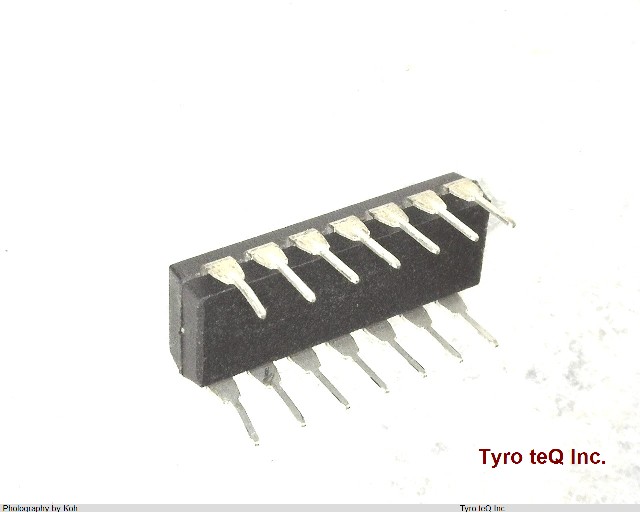

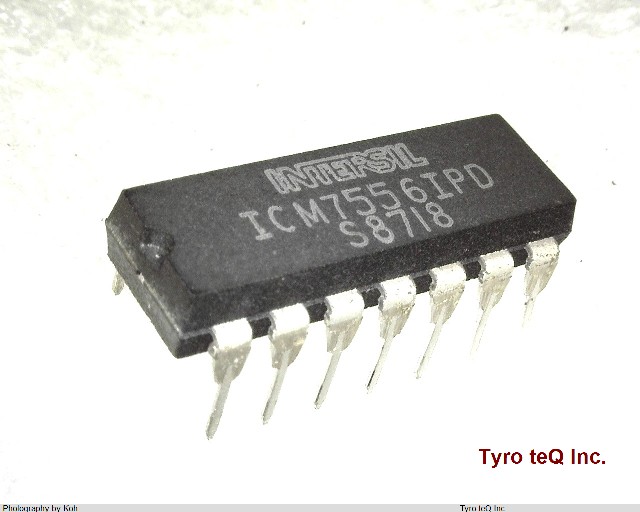

ICM7556IPD

Name: ICM7556IPD
Brand: INTERSIL
SKU: 190000845-0000-0000-0000

ICM7556IPD - INTERSIL の商品詳細ページです。

２営業日以内に回答いたします

ICM7556IPD の詳細情報

型番	ICM7556IPD
メーカー	INTERSIL
Analog IC - Other Type	PULSE; RECTANGULAR
JESD-30 Code	R-GDIP-T14
JESD-609 Code	e0
Length	19.05 mm
Moisture Sensitivity Level	1
Number of Functions	1
Number of Terminals	14
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-55 Cel
Output Frequency-Max	0.5 GHz
Package Body Material	CERAMIC, GLASS-SEALED
Package Code	DIP
Package Equivalence Code	DIP14,.3
Package Shape	RECTANGULAR
Package Style	IN-LINE Meter
Peak Reflow Temperature (Cel)	260
Power Supplies	5/15 V
Qualification Status	Not Qualified
Seated Height-Max	4.572 mm
Sub Category	Analog Waveform Generation Functions
Supply Current-Max (Isup)	0.4 mA
Supply Voltage-Max (Vsup)	16 V
Supply Voltage-Min (Vsup)	2 V
Supply Voltage-Nom (Vsup)	5 V
Surface Mount	NO
Technology	CMOS
Temperature Grade	COMMERCIAL EXTENDED
Terminal Finish	MATTE TIN
Terminal Form	THROUGH-HOLE
Terminal Pitch	2.54 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	30
Width	7.62 mm
