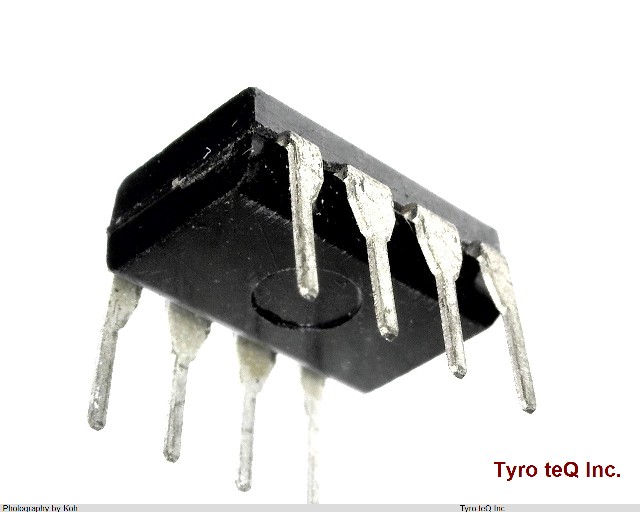

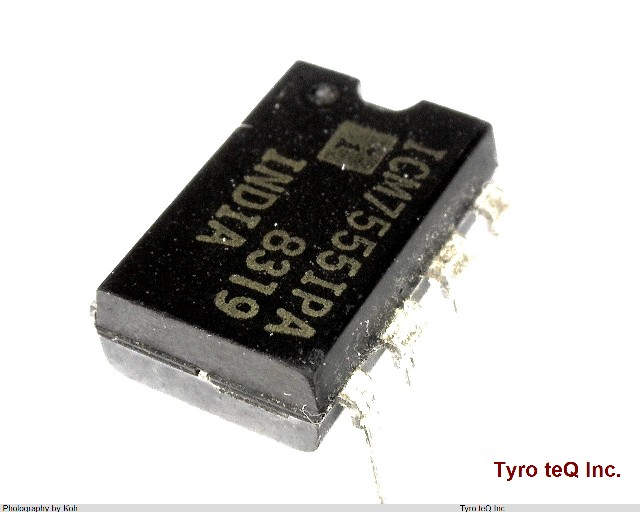

ICM7555IPA

Name: ICM7555IPA
Brand: INTERSIL
SKU: 190000844-0000-0000-0000

ICM7555IPA - INTERSIL の商品詳細ページです。

２営業日以内に回答いたします

ICM7555IPA の詳細情報

型番	ICM7555IPA
メーカー	INTERSIL
Analog IC - Other Type	PULSE; RECTANGULAR
JESD-30 Code	R-PDIP-T8
JESD-609 Code	e0
Length	9.375 mm
Moisture Sensitivity Level	1
Number of Functions	1
Number of Terminals	8
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-25 Cel
Output Frequency-Max	0.1 GHz
Package Body Material	PLASTIC/EPOXY
Package Code	DIP
Package Equivalence Code	DIP8,.3
Package Shape	RECTANGULAR
Package Style	IN-LINE Meter
Peak Reflow Temperature (Cel)	245
Power Supplies	5/15 V
Qualification Status	Not Qualified
Seated Height-Max	4.572 mm
Sub Category	Analog Waveform Generation Functions
Supply Current-Max (Isup)	0.2 mA
Supply Voltage-Max (Vsup)	16.5 V
Supply Voltage-Min (Vsup)	2 V
Supply Voltage-Nom (Vsup)	5 V
Surface Mount	NO
Technology	CMOS
Temperature Grade	COMMERCIAL EXTENDED
Terminal Finish	MATTE TIN
Terminal Form	THROUGH-HOLE
Terminal Pitch	2.54 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	30
Width	7.62 mm
