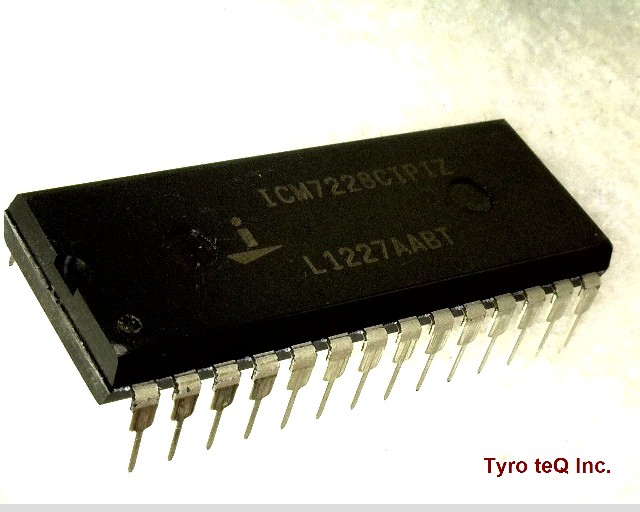

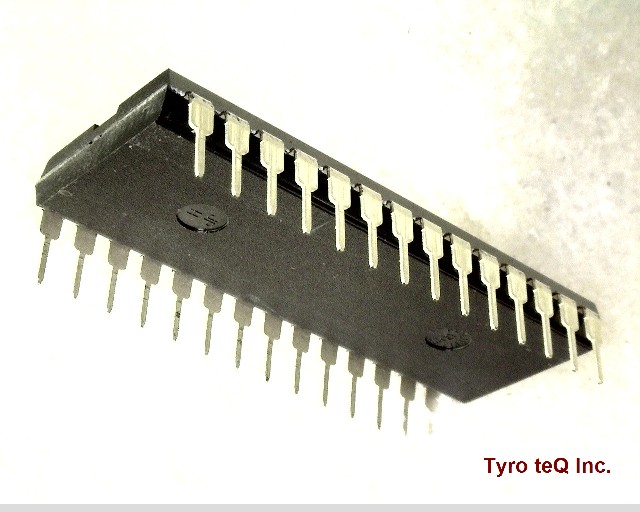

ICM7228CIPIZ データシート

Name: ICM7228CIPIZ
Brand: INTERSIL
SKU: 190008030-0000-0000-0000

ICM7228CIPIZ - INTERSIL の商品詳細ページです。

２営業日以内に回答いたします

ICM7228CIPIZ の詳細情報

型番	ICM7228CIPIZ
メーカー	INTERSIL
データシート
Additional Feature	COMMON-ANODE
Data Input Mode	PARALLEL
Display Mode	SEGMENT
Interface IC Type	LED DISPLAY DRIVER
JESD-30 Code	R-PDIP-T28
JESD-609 Code	e3
Length	37.4 mm
Multiplexed Display Capability	NO
Number of Digits/Characters	8-DIGIT
Number of Functions	1
Number of Segments	7
Number of Terminals	28
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Package Body Material	PLASTIC/EPOXY
Package Code	DIP
Package Equivalence Code	DIP28,.6
Package Shape	RECTANGULAR
Package Style	IN-LINE Meter
Power Supplies	5 V
Qualification Status	Not Qualified
Seated Height-Max	6.35 mm
Sub Category	Display Drivers
Supply Voltage-Max	5.5 V
Supply Voltage-Min	4 V
Supply Voltage-Nom	5 V
Surface Mount	NO
Technology	CMOS
Temperature Grade	INDUSTRIAL
Terminal Finish	MATTE TIN
Terminal Form	THROUGH-HOLE
Terminal Pitch	2.54 mm
Terminal Position	DUAL
Width	15.24 mm
