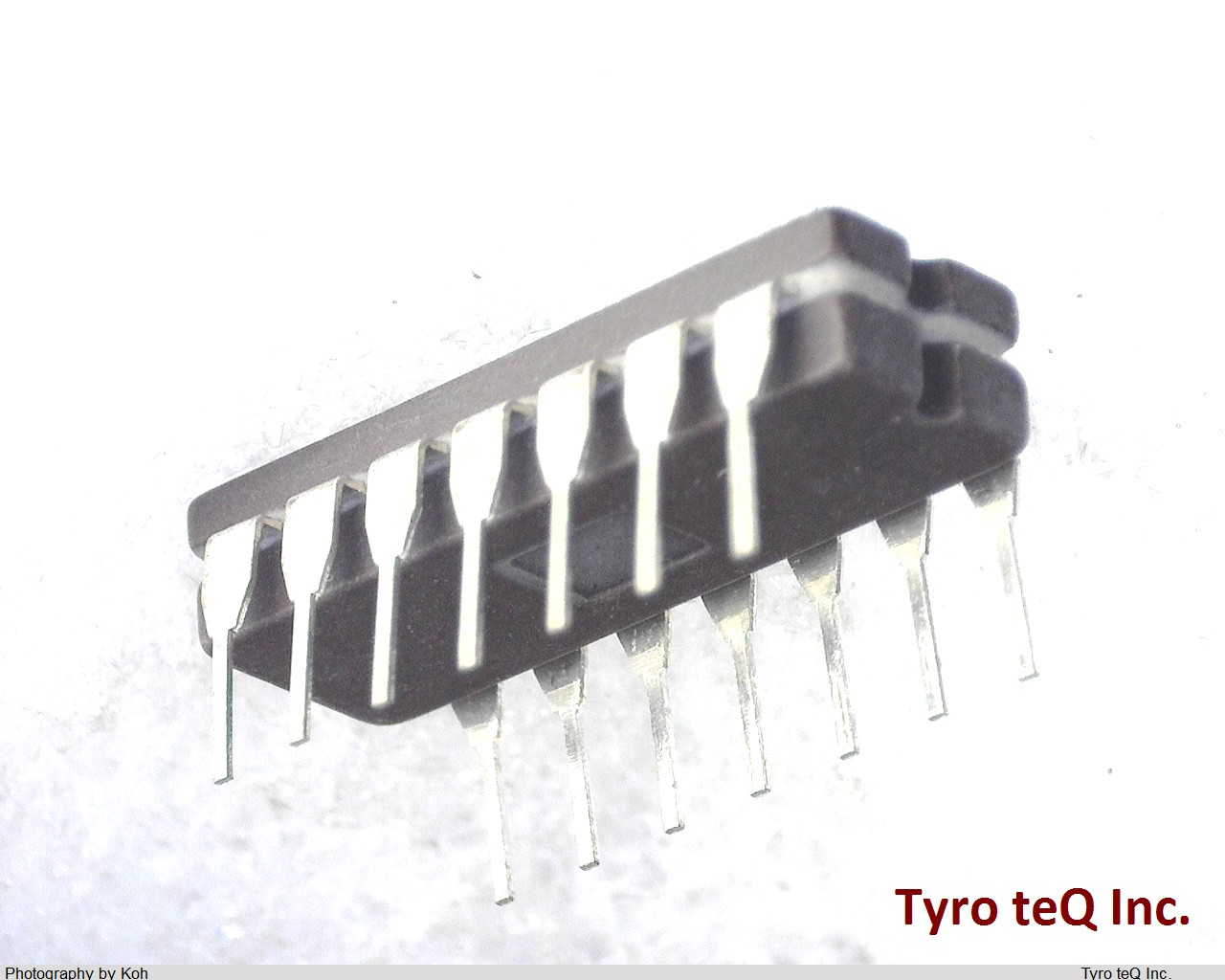

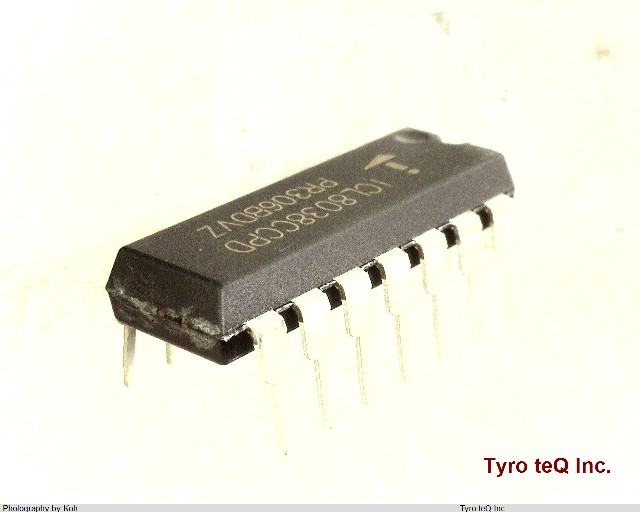

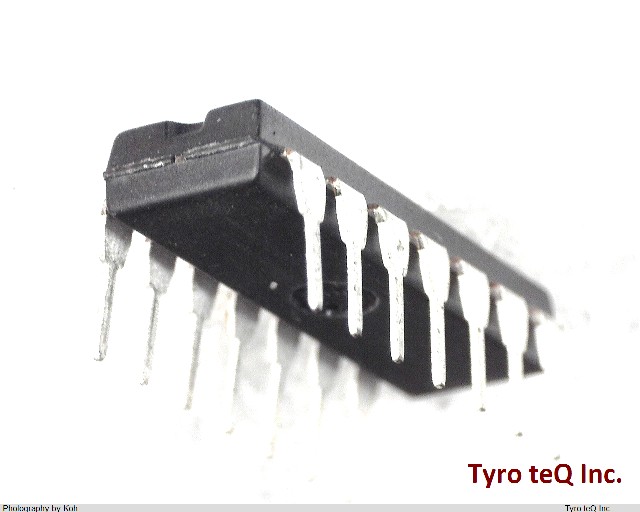

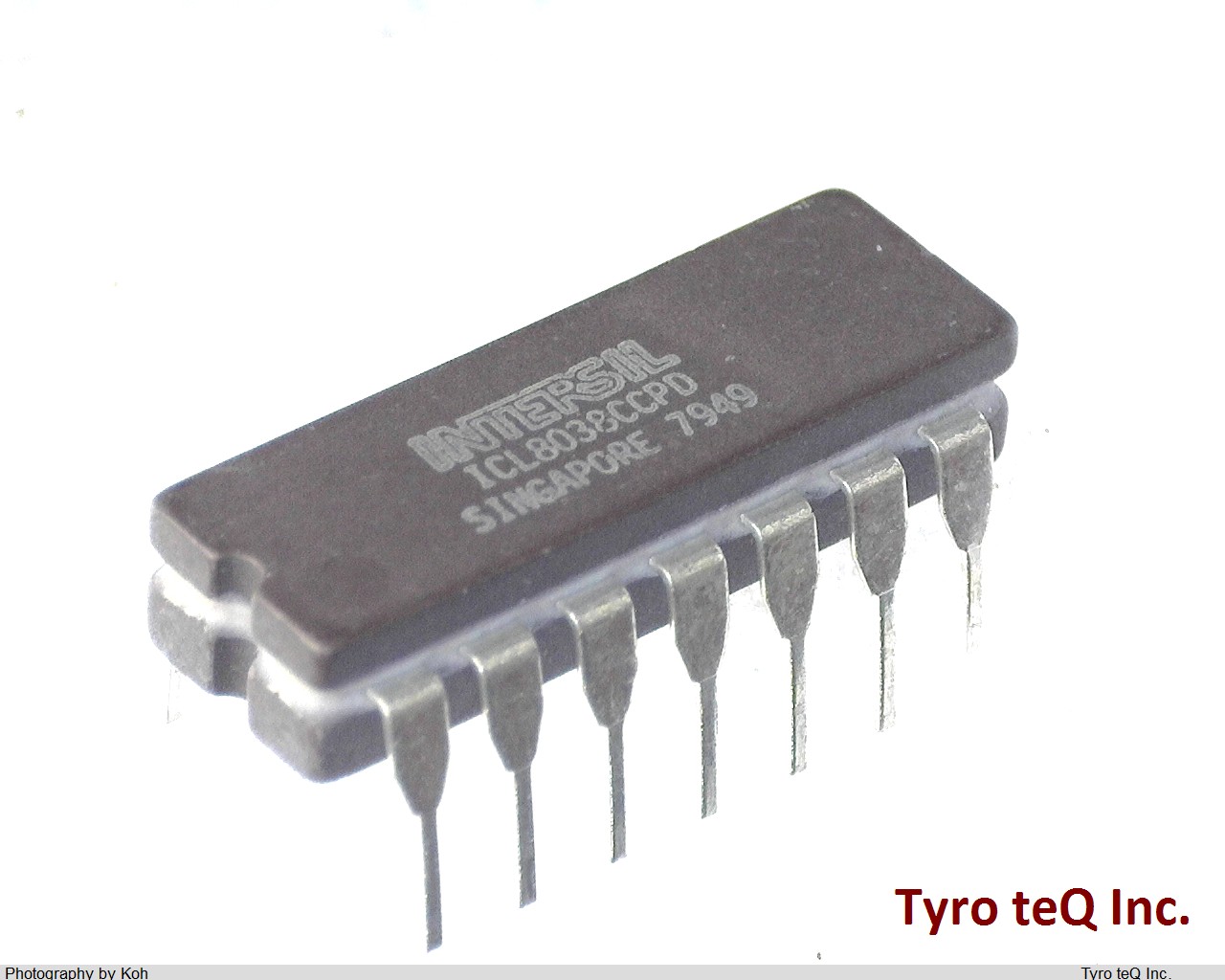

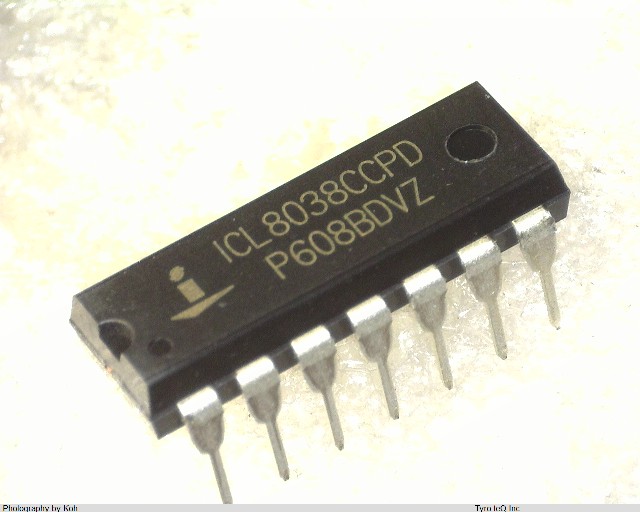

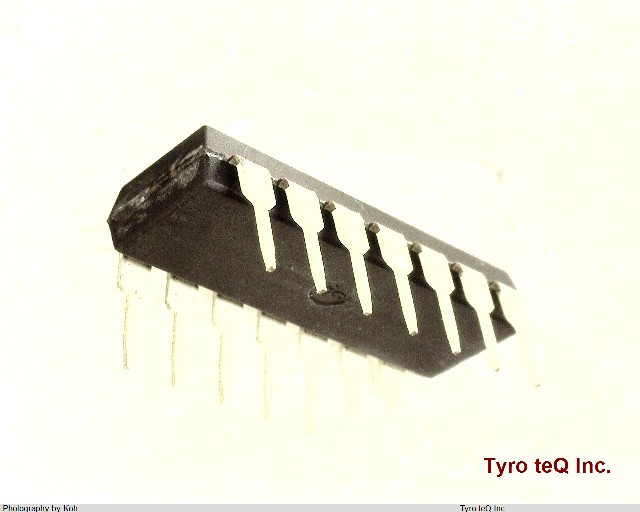

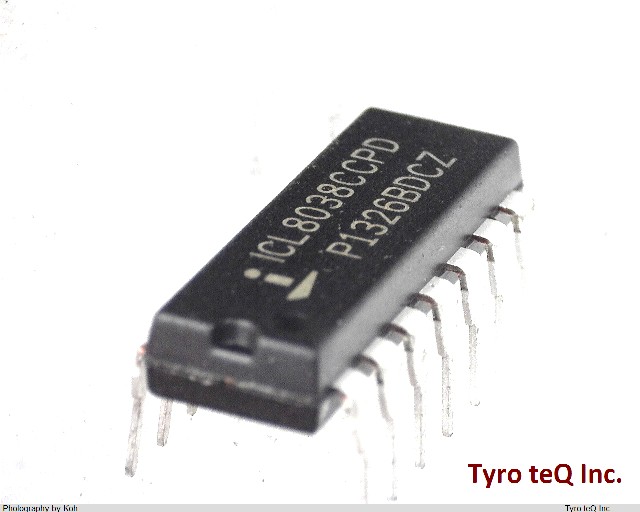

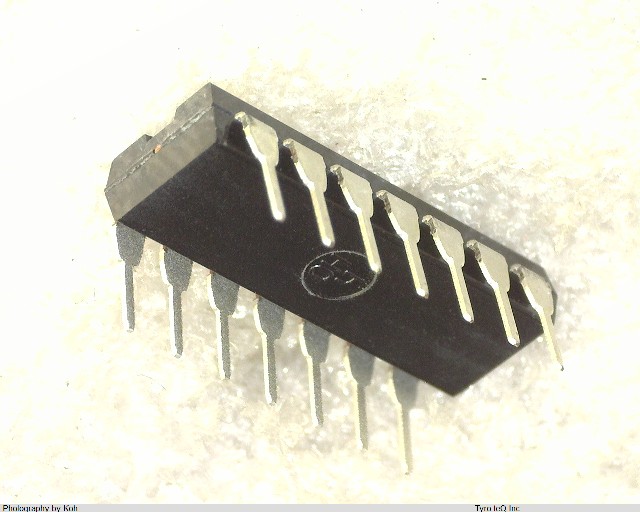

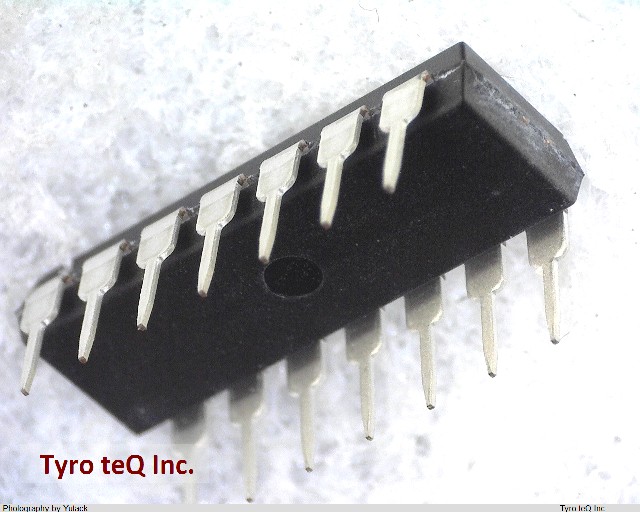

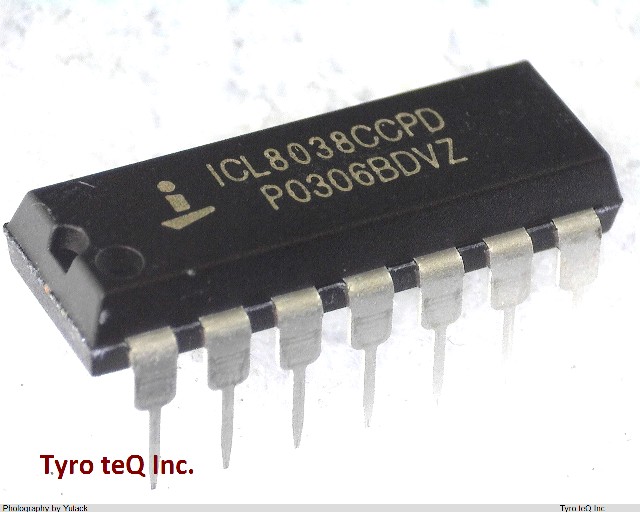

ICL8038CCPD データシート

Name: ICL8038CCPD
Brand: INTERSIL
SKU: 190000009-0000-0000-0000

ICL8038CCPD - INTERSIL の商品詳細ページです。

２営業日以内に回答いたします

ICL8038CCPD の詳細情報

型番	ICL8038CCPD
メーカー	INTERSIL
データシート
Additional Feature	ALSO OPEARTE AT 20V NOM(SINGLE SUPPLY)
Analog IC - Other Type	SQUARE; TRIANGULAR; SINE; SAWTOOTH; PULSE
JESD-30 Code	R-PDIP-T14
JESD-609 Code	e0
Length	19.17 mm
Neg Supply Voltage-Max (Vsup)	-15 V
Neg Supply Voltage-Min (Vsup)	-5 V
Neg Supply Voltage-Nom (Vsup)	-10 V
Number of Functions	1
Number of Terminals	14
Operating Temperature-Max	70 Cel
Operating Temperature-Min	0 Cel
Output Frequency-Max	0.1 GHz
Package Body Material	PLASTIC/EPOXY
Package Code	DIP
Package Equivalence Code	DIP14,.3
Package Shape	RECTANGULAR
Package Style	IN-LINE Meter
Power Supplies	+-5,+-15 V
Qualification Status	Not Qualified
Seated Height-Max	5.33 mm
Sub Category	Analog Waveform Generation Functions
Supply Current-Max (Isup)	20 mA
Supply Voltage-Max (Vsup)	15 V
Supply Voltage-Min (Vsup)	5 V
Supply Voltage-Nom (Vsup)	10 V
Surface Mount	NO
Technology	BIPOLAR
Temperature Grade	COMMERCIAL
Terminal Finish	Tin/Lead (Sn/Pb)
Terminal Form	THROUGH-HOLE
Terminal Pitch	2.54 mm
Terminal Position	DUAL
Width	7.62 mm
