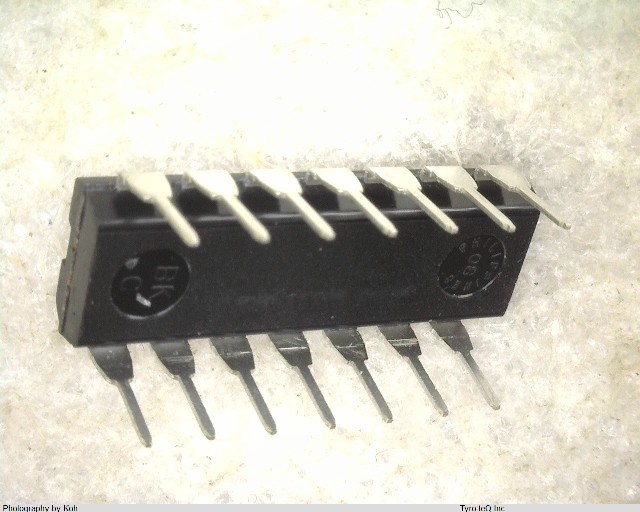

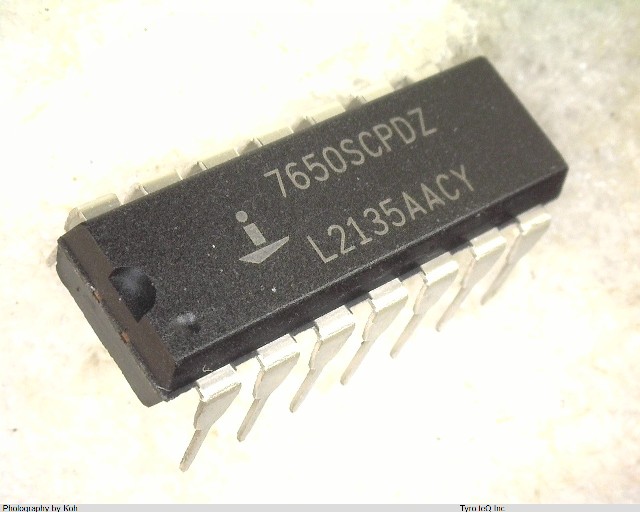

ICL7650SCPD データシート

Name: ICL7650SCPD
Brand: INTERSIL
SKU: 190007851-0000-0000-0000

ICL7650SCPD - INTERSIL の商品詳細ページです。

２営業日以内に回答いたします

ICL7650SCPD の詳細情報

型番	ICL7650SCPD
メーカー	INTERSIL
データシート
Amplifier Type	OPERATIONAL AMPLIFIER
Architecture	CHOPPER-STAB
Average Bias Current-Max (IIB)	2.0E-5 uA
Bias Current-Max (IIB) @25C	1.0E-5 uA
Common-mode Reject Ratio-Min	120 dB
Common-mode Reject Ratio-Nom	120 dB
Frequency Compensation	YES
Input Offset Voltage-Max	8 uV
JESD-30 Code	R-PDIP-T14
JESD-609 Code	e0
Length	19.17 mm
Low-Bias	YES
Low-Offset	YES
Micropower	NO
Neg Supply Voltage Limit-Max	-9 V
Neg Supply Voltage-Nom (Vsup)	-5 V
Number of Functions	1
Number of Terminals	14
Operating Temperature-Max	70 Cel
Operating Temperature-Min	0 Cel
Package Body Material	PLASTIC/EPOXY
Package Code	DIP
Package Equivalence Code	DIP14,.3
Package Shape	RECTANGULAR
Package Style	IN-LINE Meter
Packing Method	TUBE
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Power	NO
Power Supplies	+-2.5/+-8/5/16 V
Programmable Power	NO
Qualification Status	Not Qualified
Seated Height-Max	5.33 mm
Slew Rate-Nom	2.5 V/us
Sub Category	Operational Amplifier
Supply Current-Max	3.2 mA
Supply Voltage Limit-Max	9 V
Supply Voltage-Nom (Vsup)	5 V
Surface Mount	NO
Technology	CMOS
Temperature Grade	COMMERCIAL
Terminal Finish	MATTE TIN
Terminal Form	THROUGH-HOLE
Terminal Pitch	2.54 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Unity Gain BW-Nom	2000 kHz
Voltage Gain-Min	3162000
Wideband	NO
Width	7.62 mm
