ICL7621DCPAZ データシート Intersil

ICL7621DCPAZ - INTERSIL の商品詳細ページです。

1

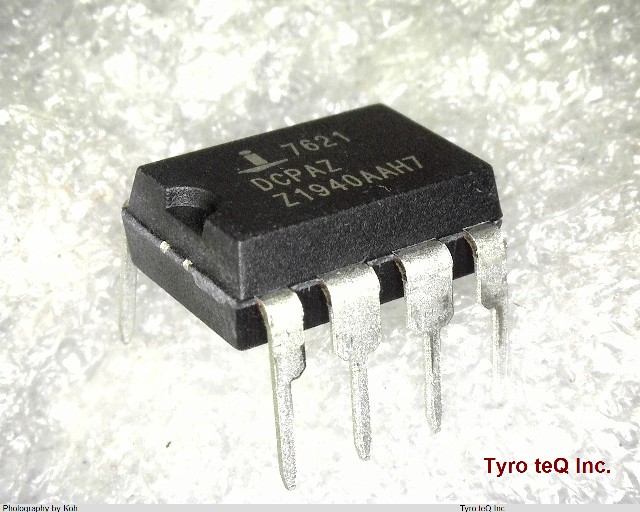

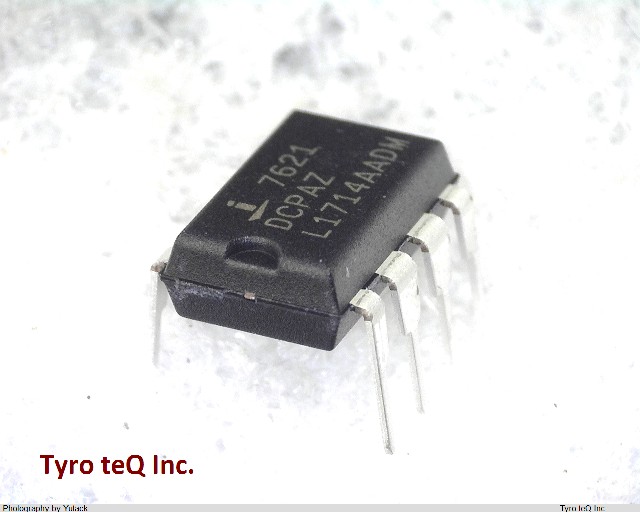

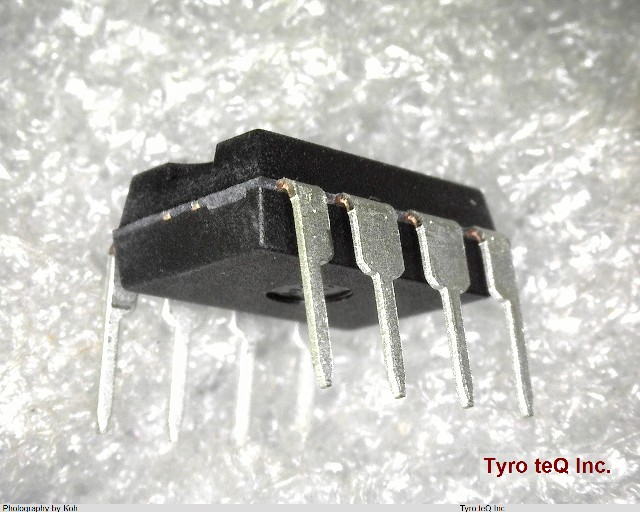

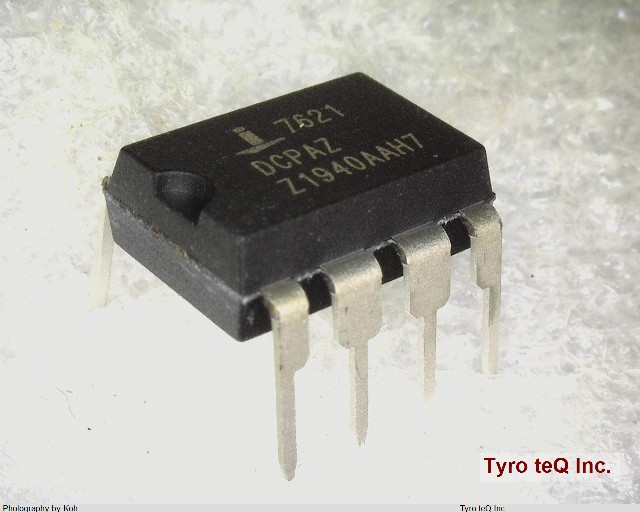

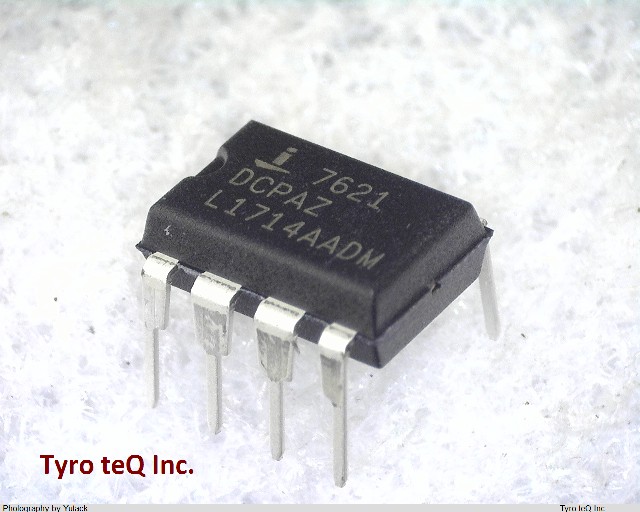

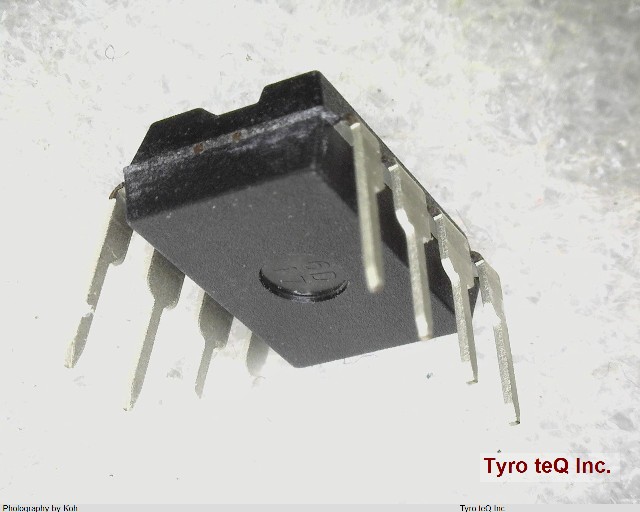

ICL7621DCPAZ
  • ICL7621DCPAZ
  • ICL7621DCPAZ
  • ICL7621DCPAZ
  • ICL7621DCPAZ
  • ICL7621DCPAZ
  • ICL7621DCPAZ
  • no_image
  • no_image
  • no_image
  • no_image
  • 個
２営業日以内に回答いたします
この商品のお問い合わせ

ICL7621DCPAZ の詳細情報

  • 仕様・詳細
  • メーカー情報
型番ICL7621DCPAZ
メーカーINTERSIL
データシートProduct_list_pdf
Amplifier Type OPERATIONAL AMPLIFIER
Architecture VOLTAGE-FEEDBACK
Average Bias Current-Max (IIB) 0.0004 uA
Bias Current-Max (IIB) @25C 5.0E-5 uA
Common-mode Reject Ratio-Nom 91 dB
Frequency Compensation YES
Input Offset Voltage-Max 20000 uV
JESD-30 Code R-PDIP-T8
JESD-609 Code e3
Length 9.585 mm
Low-Bias YES
Low-Offset NO
Micropower YES
Neg Supply Voltage Limit-Max -9 V
Neg Supply Voltage-Nom (Vsup) -5 V
Number of Functions 2
Number of Terminals 8
Operating Temperature-Max 70 Cel
Operating Temperature-Min 0 Cel
Package Body Material PLASTIC/EPOXY
Package Code DIP
Package Equivalence Code DIP8,.3
Package Shape RECTANGULAR
Package Style IN-LINE Meter
Packing Method TUBE
Power Supplies +-5 V
Qualification Status Not Qualified
Seated Height-Max 5.33 mm
Slew Rate-Nom 0.16 V/us
Sub Category Operational Amplifier
Supply Current-Max 0.5 mA
Supply Voltage Limit-Max 9 V
Supply Voltage-Nom (Vsup) 5 V
Surface Mount NO
Technology CMOS
Temperature Grade COMMERCIAL
Terminal Finish MATTE TIN
Terminal Form THROUGH-HOLE
Terminal Pitch 2.54 mm
Terminal Position DUAL
Unity Gain BW-Nom 480 kHz
Voltage Gain-Min 5600
Width 7.62 mm
会社名称Intersil Americas LLC
設立1967
所在地1001 Murphy Ranch Road Milpitas, CA 95035 USA
URLhttp://www.intersil.com/
