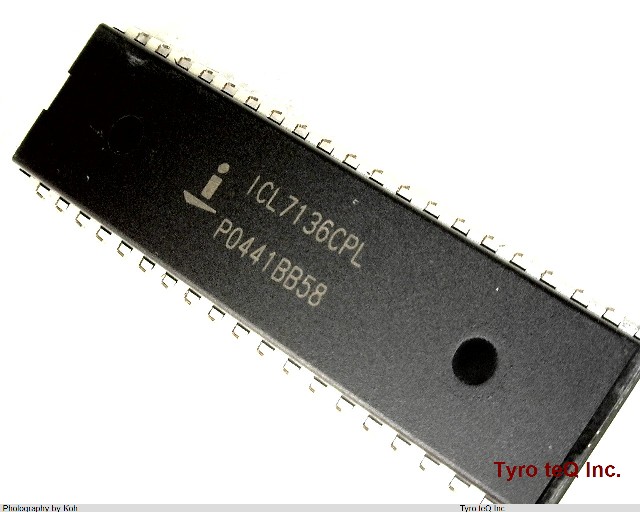

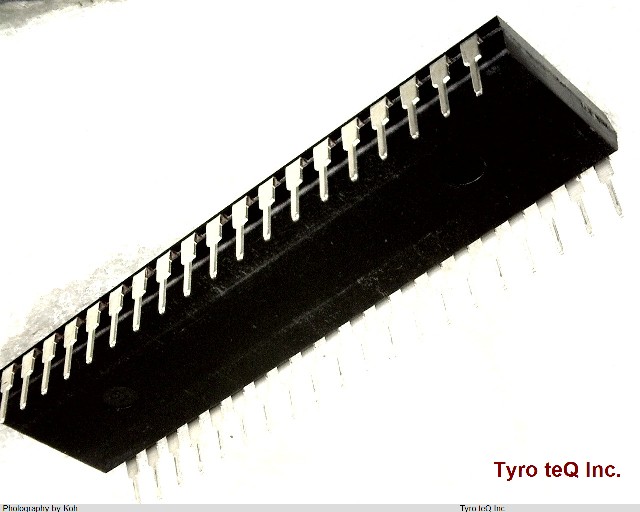

ICL7136CPL データシート

Name: ICL7136CPL
Brand: INTERSIL
SKU: 190106609-0000-0000-0000

ICL7136CPL - INTERSIL の商品詳細ページです。

２営業日以内に回答いたします

ICL7136CPL の詳細情報

型番	ICL7136CPL
メーカー	INTERSIL
データシート
Analog Input Voltage-Max	2 V
Conversion Time-Max	25 us
Converter Type	A/D CONVERTER
JESD-30 Code	R-PDIP-T40
JESD-609 Code	e0
Length	51.75 mm
Linearity Error-Max (EL)	0.0015 %
Moisture Sensitivity Level	1
Number of Analog In Channels	1
Number of Bits	3
Number of Functions	1
Number of Terminals	40
Operating Temperature-Max	70 Cel
Operating Temperature-Min	0 Cel
Output Bit Code	7-SEGMENT
Output Format	PARALLEL, WORD
Package Body Material	PLASTIC/EPOXY
Package Code	DIP
Package Equivalence Code	DIP40,.6
Package Shape	RECTANGULAR
Package Style	IN-LINE Meter
Peak Reflow Temperature (Cel)	245
Power Supplies	9 V
Qualification Status	Not Qualified
Seated Height-Max	5.08 mm
Sub Category	Analog to Digital Converters
Supply Current-Max	0.12 mA
Supply Voltage-Nom	9 V
Surface Mount	NO
Technology	CMOS
Temperature Grade	COMMERCIAL
Terminal Finish	MATTE TIN
Terminal Form	THROUGH-HOLE
Terminal Pitch	2.54 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	30
Width	15.24 mm
