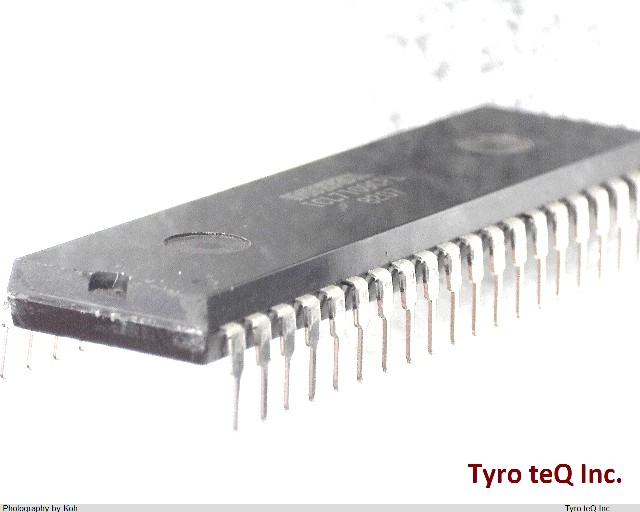

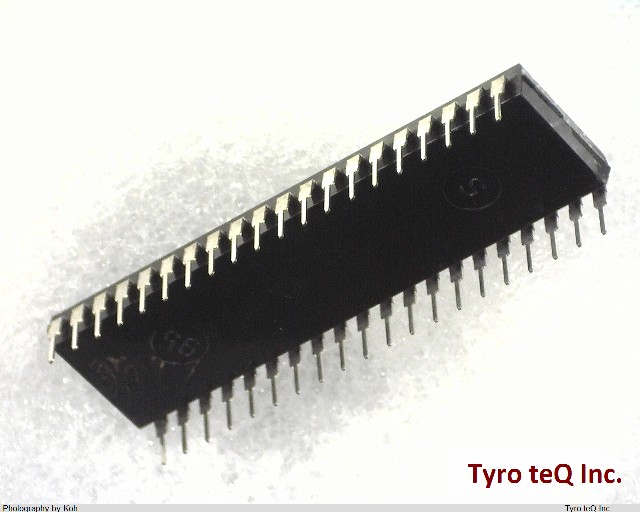

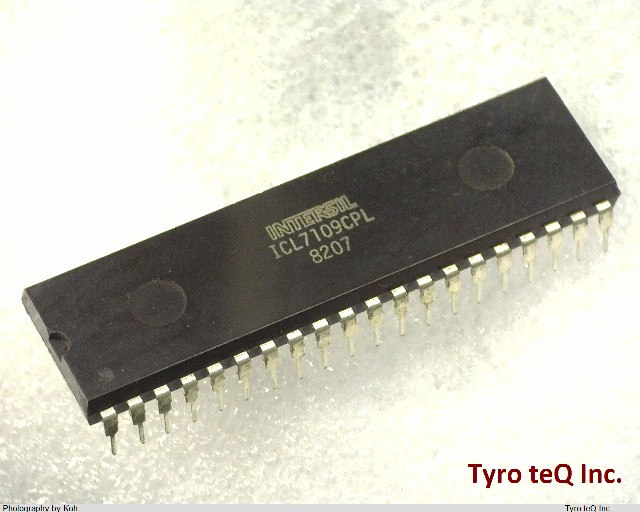

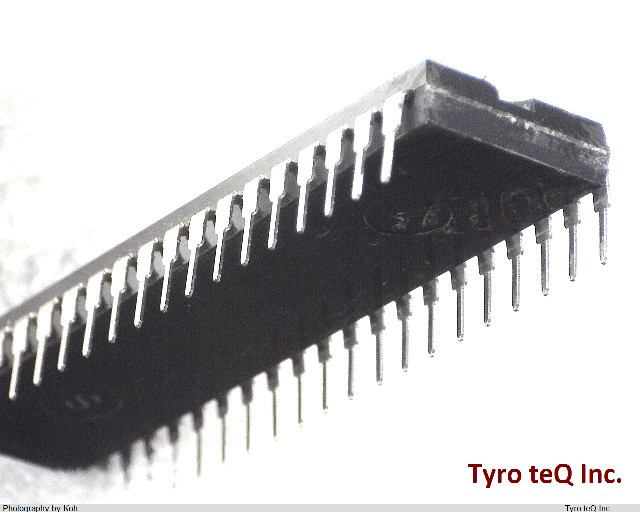

ICL7109CPL

Name: ICL7109CPL
Brand: INTERSIL
SKU: 190000156-0000-0000-0000

ICL7109CPL - INTERSIL の商品詳細ページです。

２営業日以内に回答いたします

ICL7109CPL の詳細情報

型番	ICL7109CPL
メーカー	INTERSIL
Analog Input Voltage-Max	2 V
Analog Input Voltage-Min	-9 V
Converter Type	A/D CONVERTER
JESD-30 Code	R-PDIP-T40
JESD-609 Code	e0
Length	51.75 mm
Linearity Error-Max (EL)	0.024 %
Moisture Sensitivity Level	1
Negative Supply Voltage-Nom	-5 V
Number of Analog In Channels	1
Number of Bits	12
Number of Functions	1
Number of Terminals	40
Operating Temperature-Max	70 Cel
Operating Temperature-Min	0 Cel
Output Bit Code	BINARY
Output Format	PARALLEL, WORD
Package Body Material	PLASTIC/EPOXY
Package Code	DIP
Package Equivalence Code	DIP40,.6
Package Shape	RECTANGULAR
Package Style	IN-LINE Meter
Peak Reflow Temperature (Cel)	240
Power Supplies	+-5 V
Qualification Status	Not Qualified
Sample Rate	50 MHz
Seated Height-Max	5.08 mm
Sub Category	Analog to Digital Converters
Supply Current-Max	1.5 mA
Supply Voltage-Nom	5 V
Surface Mount	NO
Technology	CMOS
Temperature Grade	COMMERCIAL
Terminal Finish	MATTE TIN
Terminal Form	THROUGH-HOLE
Terminal Pitch	2.54 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	20
Width	15.24 mm
