HIP6004BCV データシート

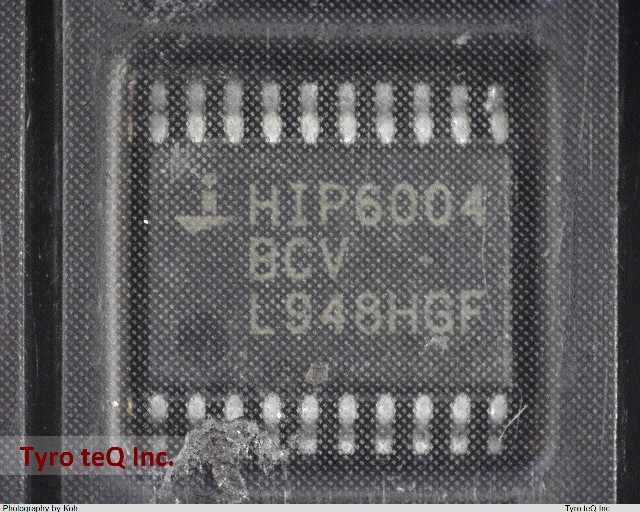

Name: HIP6004BCV
Brand: INTERSIL
SKU: 180016626-0000-0000-0000

HIP6004BCV - INTERSIL の商品詳細ページです。

２営業日以内に回答いたします

HIP6004BCV の詳細情報

型番	HIP6004BCV
メーカー	INTERSIL
データシート
Additional Feature	OPERATES FROM +5V OR +12V INPUT
Analog IC - Other Type	SWITCHING CONTROLLER
Control Mode	VOLTAGE-MODE
Control Technique	PULSE WIDTH MODULATION
Input Voltage-Max	13.2 V
Input Voltage-Min	10.8 V
Input Voltage-Nom	12 V
JESD-30 Code	R-PDSO-G20
JESD-609 Code	e0
Length	6.5 mm
Moisture Sensitivity Level	1
Number of Functions	1
Number of Terminals	20
Operating Temperature-Max	70 Cel
Operating Temperature-Min	0 Cel
Output Current-Max	0.3 A
Package Body Material	PLASTIC/EPOXY
Package Code	TSSOP
Package Equivalence Code	TSSOP20,.25
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE Meter
Peak Reflow Temperature (Cel)	260
Qualification Status	Not Qualified
Seated Height-Max	1.2 mm
Sub Category	Switching Regulator or Controllers
Surface Mount	YES
Switcher Configuration	BUCK
Switching Frequency-Max	200 kHz
Temperature Grade	COMMERCIAL
Terminal Finish	MATTE TIN
Terminal Form	GULL WING
Terminal Pitch	0.635 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	30
Width	4.4 mm
