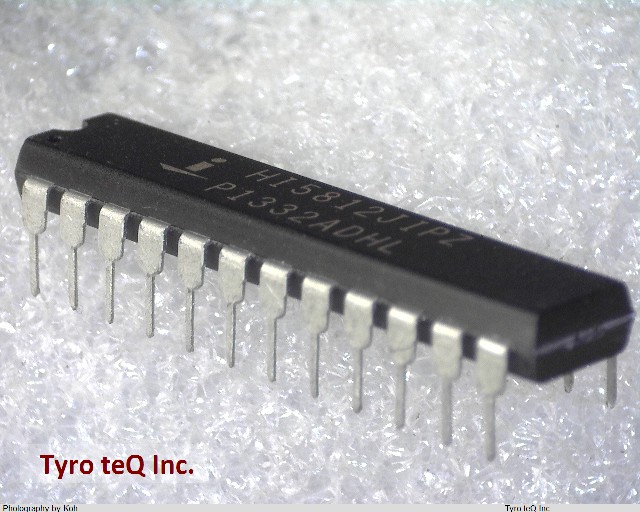

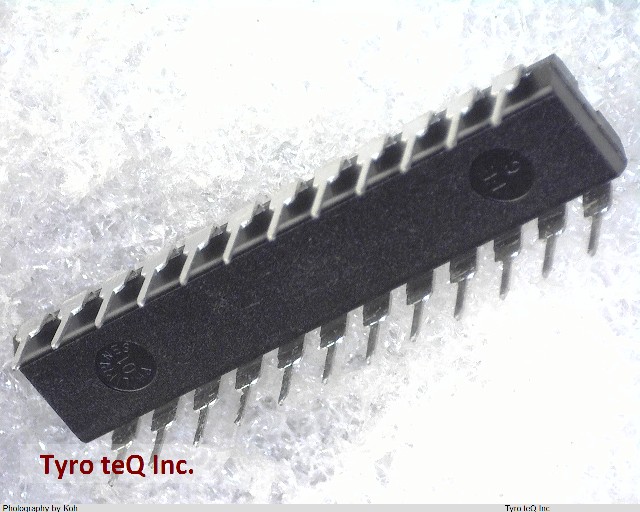

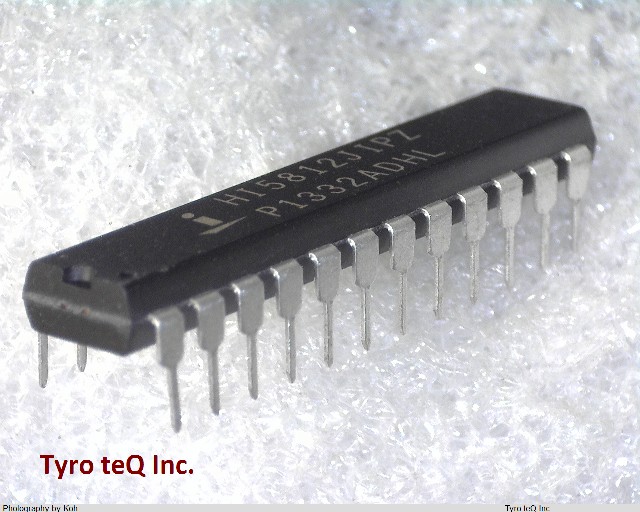

HI5812JIPZ データシート

Name: HI5812JIPZ
Brand: INTERSIL
SKU: 180030595-0000-0000-0000

HI5812JIPZ - INTERSIL の商品詳細ページです。

２営業日以内に回答いたします

HI5812JIPZ の詳細情報

型番	HI5812JIPZ
メーカー	INTERSIL
データシート
Analog Input Voltage-Max	6.8 V
Analog Input Voltage-Min	0 V
Conversion Time-Max	20 us
Converter Type	ADC, SUCCESSIVE APPROXIMATION
JESD-30 Code	R-PDIP-T24
JESD-609 Code	e3
Length	31.875 mm
Linearity Error-Max (EL)	0.03662 %
Number of Analog In Channels	1
Number of Bits	12
Number of Functions	1
Number of Terminals	24
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Output Bit Code	BINARY
Output Format	PARALLEL, WORD
Package Body Material	PLASTIC/EPOXY
Package Code	DIP
Package Equivalence Code	DIP24,.3
Package Shape	RECTANGULAR
Package Style	IN-LINE Meter
Power Supplies	5 V
Qualification Status	Not Qualified
Sample Rate	0.05 MHz
Sample-and-Hold/Track-and-Hold	TRACK
Seated Height-Max	5.33 mm
Sub Category	Analog to Digital Converters
Supply Voltage-Nom	5 V
Surface Mount	NO
Technology	CMOS
Temperature Grade	INDUSTRIAL
Terminal Finish	MATTE TIN
Terminal Form	THROUGH-HOLE
Terminal Pitch	2.54 mm
Terminal Position	DUAL
Width	7.62 mm
