HI3-0201HS-5Z データシート

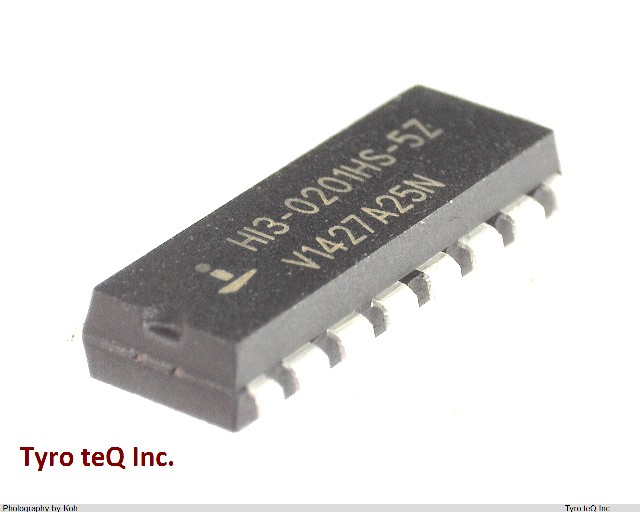

Name: HI3-0201HS-5Z
Brand: INTERSIL
SKU: 180030457-0000-0000-0000

HI3-0201HS-5Z - INTERSIL の商品詳細ページです。

２営業日以内に回答いたします

HI3-0201HS-5Z の詳細情報

型番	HI3-0201HS-5Z
メーカー	INTERSIL
データシート
Analog IC - Other Type	SPST
JESD-30 Code	R-PDIP-T16
JESD-609 Code	e3
Length	19.17 mm
Neg Supply Voltage-Nom (Vsup)	-15 V
Normal Position	NC V
Number of Channels	1
Number of Functions	4
Number of Terminals	16
Off-state Isolation-Nom	72 dB
On-state Resistance Match-Nom	0.9 ohm
On-state Resistance-Max (Ron)	50 ohm
Operating Temperature-Max	75 Cel
Operating Temperature-Min	0 Cel
Output	SEPARATE OUTPUT V
Package Body Material	PLASTIC/EPOXY
Package Code	DIP
Package Equivalence Code	DIP16,.3
Package Shape	RECTANGULAR
Package Style	IN-LINE Meter
Power Supplies	+-15 V
Qualification Status	Not Qualified
Seated Height-Max	5.33 mm
Sub Category	Multiplexer or Switches
Supply Voltage-Nom (Vsup)	15 V
Surface Mount	NO
Switch-off Time-Max	50 ns
Switch-on Time-Max	50 ns
Switching	BREAK-BEFORE-MAKE V
Technology	CMOS
Temperature Grade	COMMERCIAL EXTENDED
Terminal Finish	MATTE TIN
Terminal Form	THROUGH-HOLE
Terminal Pitch	2.54 mm
Terminal Position	DUAL
Width	7.62 mm
