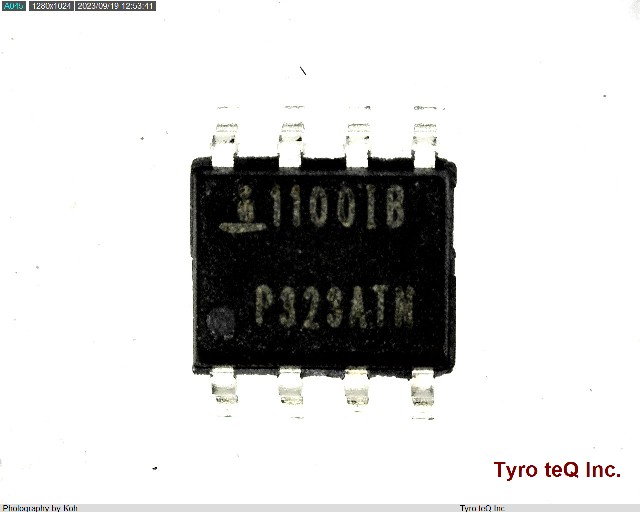

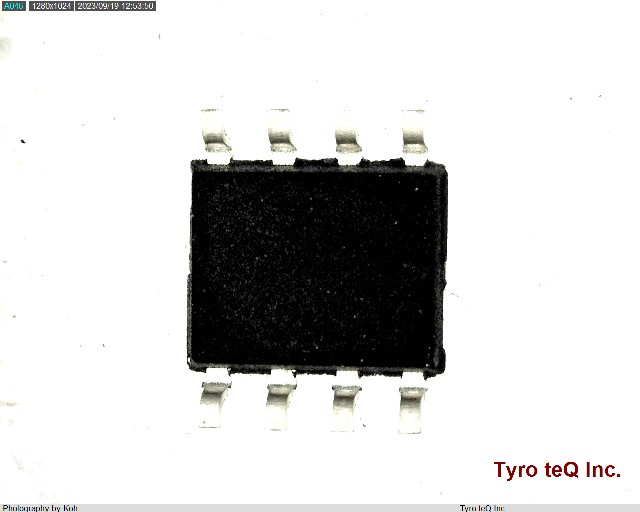

HFA1100IB データシート

Name: HFA1100IB
Brand: INTERSIL
SKU: 180015741-0000-0000-0000

HFA1100IB - INTERSIL の商品詳細ページです。

２営業日以内に回答いたします

HFA1100IB の詳細情報

型番	HFA1100IB
メーカー	INTERSIL
データシート
Amplifier Type	OPERATIONAL AMPLIFIER
Architecture	CURRENT-FEEDBACK
Bias Current-Max (IIB) @25C	50 uA
Common-mode Reject Ratio-Min	38 dB
Common-mode Reject Ratio-Nom	46 dB
Frequency Compensation	YES
Input Offset Voltage-Max	10000 uV
JESD-30 Code	R-PDSO-G8
JESD-609 Code	e0
Length	4.9 mm
Low-Bias	NO
Low-Offset	NO
Micropower	NO
Moisture Sensitivity Level	1
Neg Supply Voltage Limit-Max	-6 V
Neg Supply Voltage-Nom (Vsup)	-5 V
Number of Functions	1
Number of Terminals	8
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Package Body Material	PLASTIC/EPOXY
Package Code	SOP
Package Equivalence Code	SOP8,.25
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE Meter
Packing Method	TAPE AND REEL
Peak Reflow Temperature (Cel)	260
Power	NO
Power Supplies	+-5 V
Programmable Power	NO
Qualification Status	Not Qualified
Seated Height-Max	1.75 mm
Slew Rate-Min	1850 V/us
Slew Rate-Nom	2300 V/us
Sub Category	Operational Amplifier
Supply Current-Max	33 mA
Supply Voltage Limit-Max	6 V
Supply Voltage-Nom (Vsup)	5 V
Surface Mount	YES
Technology	BIPOLAR
Temperature Grade	INDUSTRIAL
Terminal Finish	MATTE TIN
Terminal Form	GULL WING
Terminal Pitch	1.27 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	30
Wideband	YES
Width	3.9 mm
