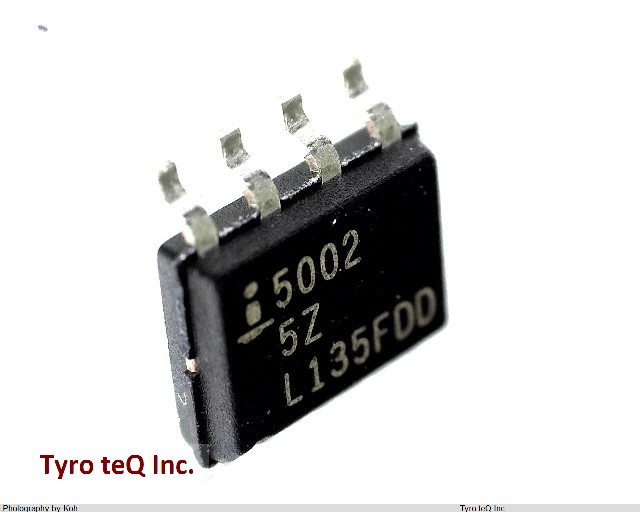

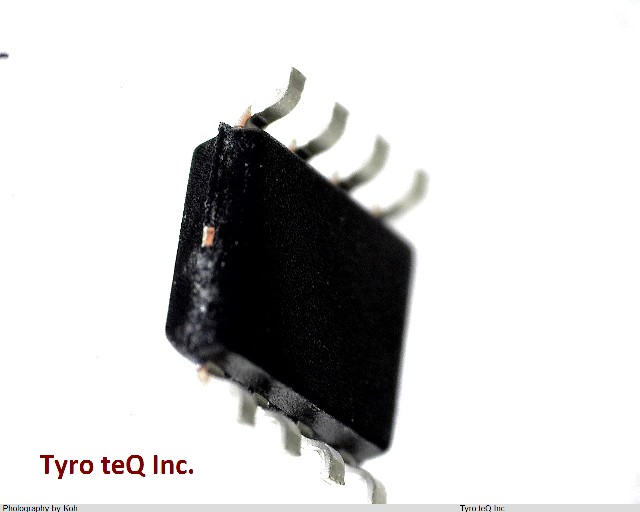

HA9P5002-5Z データシート

Name: HA9P5002-5Z
Brand: INTERSIL
SKU: 180023361-0000-0000-0000

HA9P5002-5Z - INTERSIL の商品詳細ページです。

２営業日以内に回答いたします

HA9P5002-5Z の詳細情報

型番	HA9P5002-5Z
メーカー	INTERSIL
データシート
Amplifier Type	BUFFER
Average Bias Current-Max (IIB)	10 uA
Bandwidth (3dB)-Nom	110 MHz
Bias Current-Max (IIB) @25C	10 uA
Input Offset Voltage-Max	30000 uV
JESD-30 Code	R-PDSO-G8
JESD-609 Code	e3
Length	4.9 mm
Moisture Sensitivity Level	1
Neg Supply Voltage Limit-Max	-22 V
Neg Supply Voltage-Nom (Vsup)	-12 V
Number of Functions	1
Number of Terminals	8
Operating Temperature-Max	75 Cel
Operating Temperature-Min	0 Cel
Package Body Material	PLASTIC/EPOXY
Package Code	SOP
Package Equivalence Code	SOP8,.25
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE Meter
Packing Method	TUBE
Peak Reflow Temperature (Cel)	260
Power Supplies	+-12/+-15 V
Qualification Status	Not Qualified
Seated Height-Max	1.75 mm
Slew Rate-Min	1 V/us
Slew Rate-Nom	0.0013 V/us
Sub Category	Buffer Amplifier
Supply Current-Max	10 mA
Supply Voltage Limit-Max	22 V
Supply Voltage-Nom (Vsup)	12 V
Surface Mount	YES
Technology	BIPOLAR
Temperature Grade	COMMERCIAL EXTENDED
Terminal Finish	MATTE TIN
Terminal Form	GULL WING
Terminal Pitch	1.27 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	30
Width	3.9 mm
