HA7-2640-2 データシート Intersil

HA7-2640-2 - INTERSIL の商品詳細ページです。

1

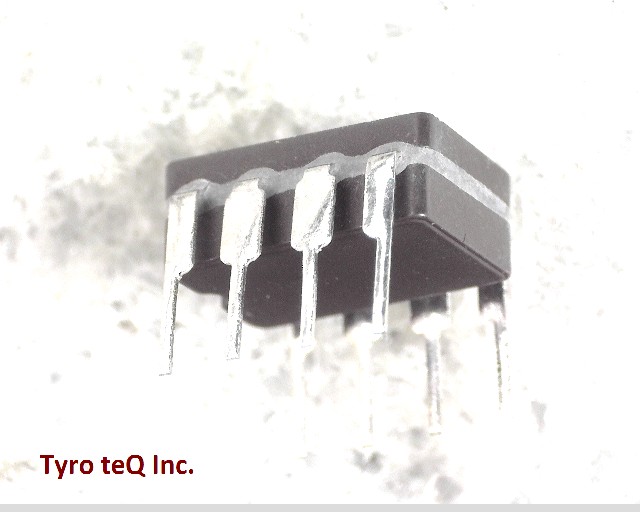

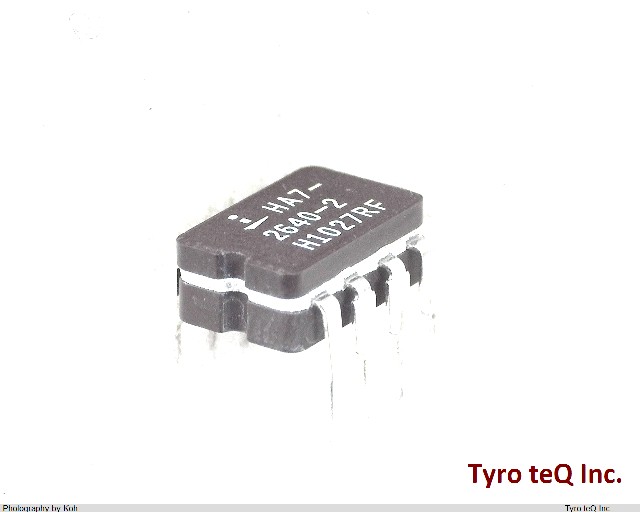

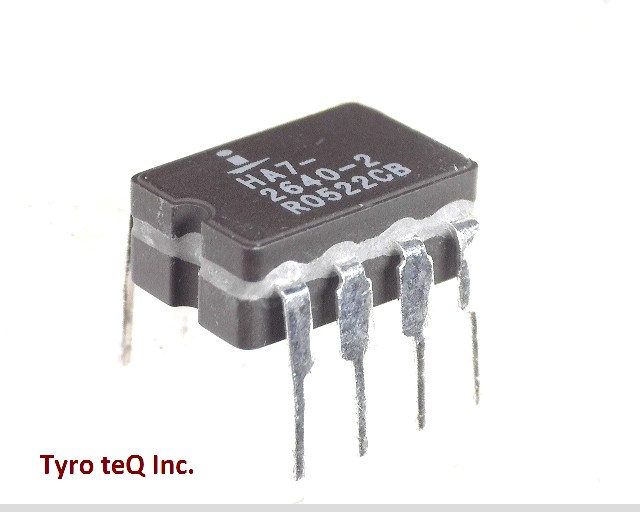

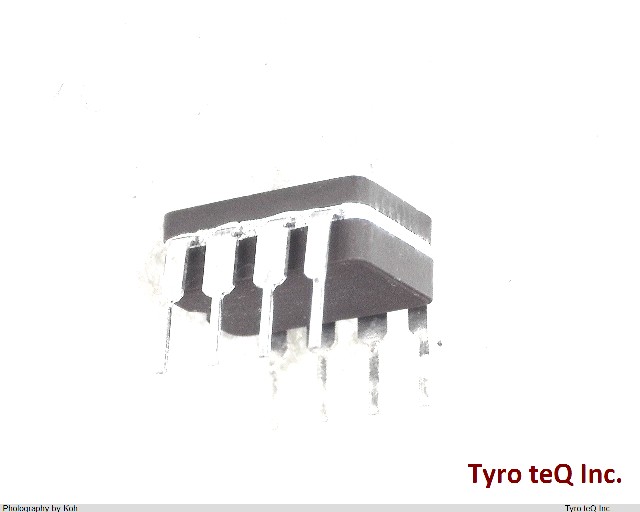

HA7-2640-2
  • HA7-2640-2
  • HA7-2640-2
  • HA7-2640-2
  • HA7-2640-2
  • no_image
  • no_image
  • no_image
  • no_image
  • no_image
  • no_image
  • 個
２営業日以内に回答いたします
この商品のお問い合わせ

HA7-2640-2 の詳細情報

  • 仕様・詳細
  • メーカー情報
型番HA7-2640-2
メーカーINTERSIL
データシートProduct_list_pdf
Amplifier Type OPERATIONAL AMPLIFIER
Architecture VOLTAGE-FEEDBACK
Average Bias Current-Max (IIB) 0.05 uA
Bias Current-Max (IIB) @25C 0.025 uA
Common-mode Reject Ratio-Min 80 dB
Common-mode Reject Ratio-Nom 100 dB
Frequency Compensation YES
Input Offset Voltage-Max 6000 uV
JESD-30 Code R-GDIP-T8
JESD-609 Code e0
Length 10.29 mm
Low-Offset NO
Neg Supply Voltage Limit-Max -50 V
Neg Supply Voltage-Nom (Vsup) -40 V
Number of Functions 1
Number of Terminals 8
Operating Temperature-Max 125 Cel
Operating Temperature-Min -55 Cel
Package Body Material CERAMIC, GLASS-SEALED
Package Code DIP
Package Equivalence Code DIP8,.3
Package Shape RECTANGULAR
Package Style IN-LINE Meter
Packing Method TUBE
Power Supplies +-40 V
Qualification Status Not Qualified
Seated Height-Max 5.08 mm
Slew Rate-Min 3 V/us
Slew Rate-Nom 5 V/us
Sub Category Operational Amplifier
Supply Current-Max 3.8 mA
Supply Voltage Limit-Max 50 V
Supply Voltage-Nom (Vsup) 40 V
Surface Mount NO
Technology BIPOLAR
Temperature Grade MILITARY
Terminal Finish TIN LEAD
Terminal Form THROUGH-HOLE
Terminal Pitch 2.54 mm
Terminal Position DUAL
Unity Gain BW-Nom 4000 kHz
Voltage Gain-Min 75000
Width 7.62 mm
会社名称Intersil Americas LLC
設立1967
所在地1001 Murphy Ranch Road Milpitas, CA 95035 USA
URLhttp://www.intersil.com/
