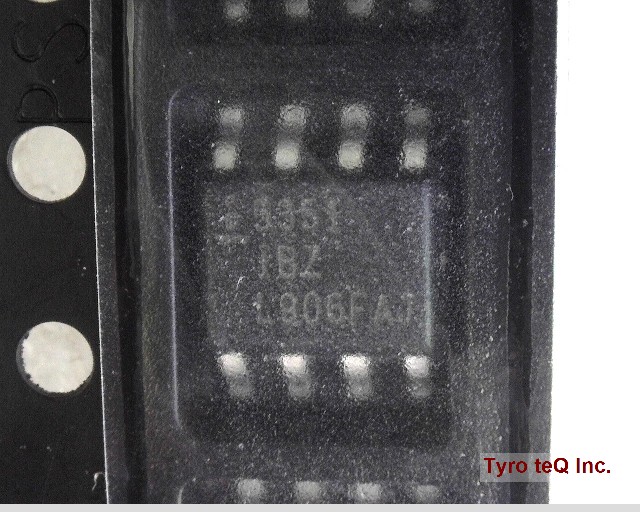

HA5351IBZ データシート

Name: HA5351IBZ
Brand: INTERSIL
SKU: 180023337-0000-0000-0000

HA5351IBZ - INTERSIL の商品詳細ページです。

２営業日以内に回答いたします

HA5351IBZ の詳細情報

型番	HA5351IBZ
メーカー	INTERSIL
データシート
Acquisition Time-Max	0.1 us
Acquisition Time-Nom	0.09 us
Amplifier Type	SAMPLE AND HOLD CIRCUIT
Analog Input Voltage-Max	2.5 V
Analog Input Voltage-Min	-2.5 V
Droop Rate-Max	2 V/s
JESD-30 Code	R-PDSO-G8
JESD-609 Code	e3
Length	4.9 mm
Moisture Sensitivity Level	1
Neg Supply Voltage Limit-Max	-5.5 V
Neg Supply Voltage-Nom (Vsup)	-5 V
Number of Functions	1
Number of Terminals	8
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Package Body Material	PLASTIC/EPOXY
Package Code	SOP
Package Equivalence Code	SOP8,.25
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE Meter
Packing Method	TUBE
Peak Reflow Temperature (Cel)	260
Power Supplies	+-5 V
Qualification Status	Not Qualified
Sample-and-Hold/Track-and-Hold	SAMPLE
Seated Height-Max	1.75 mm
Sub Category	Sample and Hold Circuit
Supply Current-Max	22 mA
Supply Voltage Limit-Max	5.5 V
Supply Voltage-Nom (Vsup)	5 V
Surface Mount	YES
Technology	BICMOS
Temperature Grade	INDUSTRIAL
Terminal Finish	MATTE TIN
Terminal Form	GULL WING
Terminal Pitch	1.27 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	30
Width	3.9 mm
