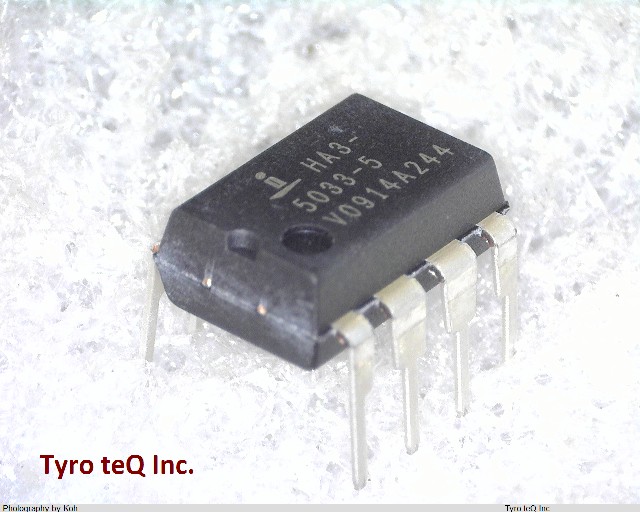

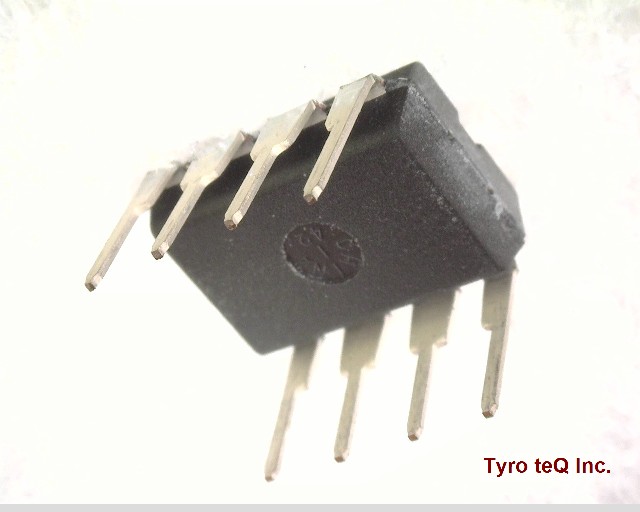

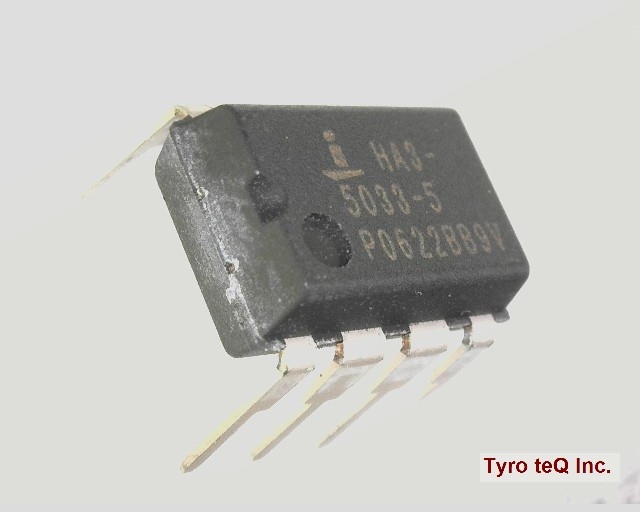

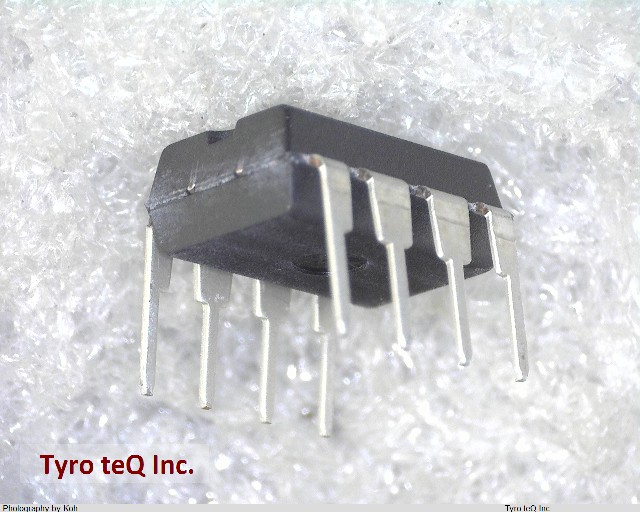

HA3-5033-5
  • HA3-5033-5
  • HA3-5033-5
  • HA3-5033-5
  • HA3-5033-5
  • no_image
  • no_image
  • no_image
  • no_image
  • no_image
  • no_image
  • 個
２営業日以内に回答いたします
この商品のお問い合わせ

HA3-5033-5 の詳細情報

  • 仕様・詳細
  • メーカー情報
型番HA3-5033-5
メーカーINTERSIL
Amplifier Type BUFFER
Average Bias Current-Max (IIB) 50 uA
Bandwidth (3dB)-Nom 250 MHz
Bias Current-Max (IIB) @25C 35 uA
Input Offset Voltage-Max 25000 uV
JESD-30 Code R-PDIP-T8
JESD-609 Code e0
Length 9.585 mm
Neg Supply Voltage Limit-Max -20 V
Neg Supply Voltage-Nom (Vsup) -12 V
Number of Functions 1
Number of Terminals 8
Operating Temperature-Max 75 Cel
Operating Temperature-Min 0 Cel
Output Current-Min 0.08 A
Package Body Material PLASTIC/EPOXY
Package Code DIP
Package Equivalence Code DIP8,.3
Package Shape RECTANGULAR
Package Style IN-LINE Meter
Power Supplies +-12 V
Qualification Status Not Qualified
Seated Height-Max 5.33 mm
Slew Rate-Min 1000 V/us
Slew Rate-Nom 0.0011 V/us
Sub Category Buffer Amplifier
Supply Current-Max 30 mA
Supply Voltage Limit-Max 20 V
Supply Voltage-Nom (Vsup) 12 V
Surface Mount NO
Technology BIPOLAR
Temperature Grade COMMERCIAL EXTENDED
Terminal Finish TIN LEAD
Terminal Form THROUGH-HOLE
Terminal Pitch 2.54 mm
Terminal Position DUAL
Width 7.62 mm
会社名称Intersil Americas LLC
設立1967
所在地1001 Murphy Ranch Road Milpitas, CA 95035 USA
URLhttp://www.intersil.com/
