HA3-2625-5 Intersil

HA3-2625-5 - INTERSIL の商品詳細ページです。

1

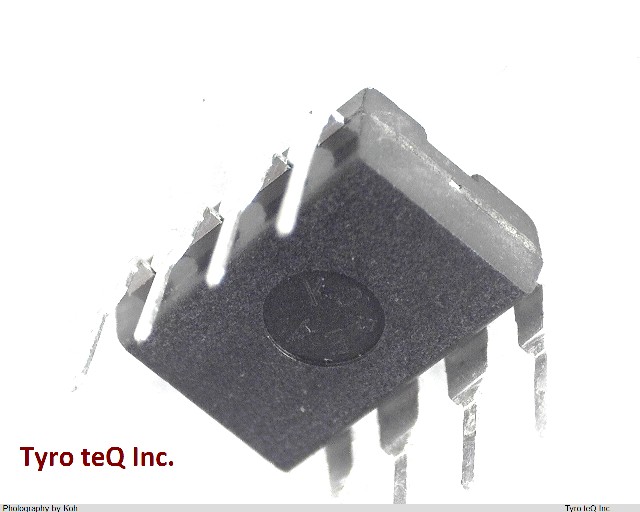

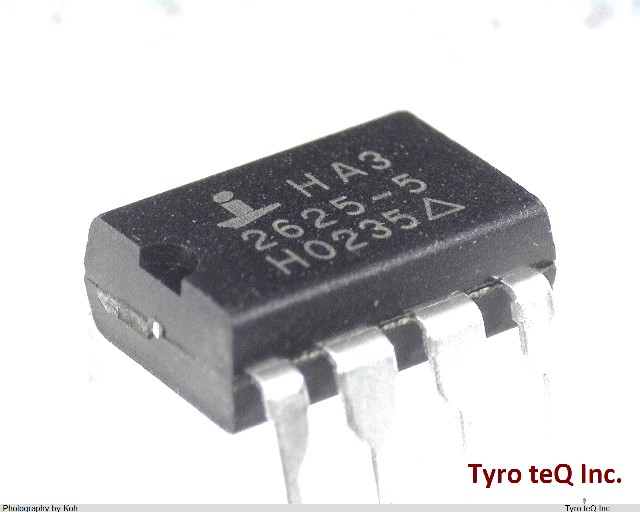

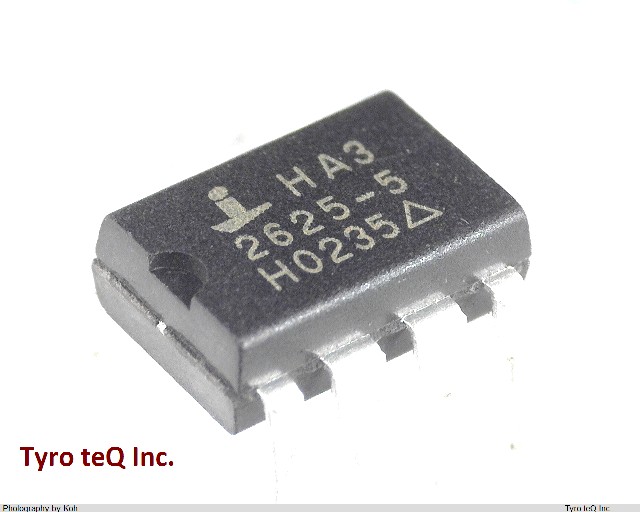

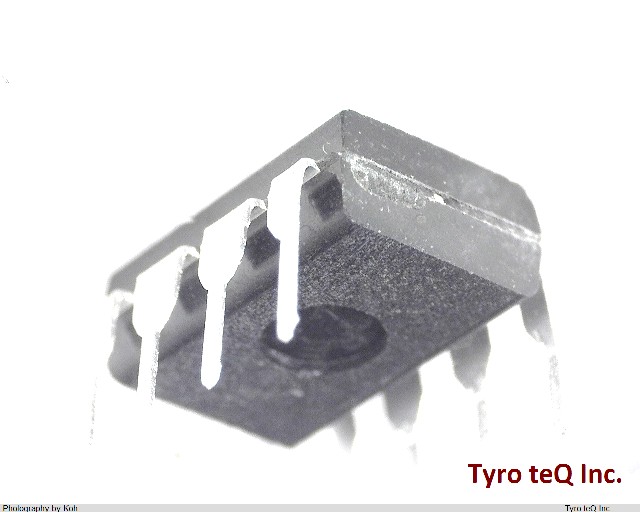

HA3-2625-5
  • HA3-2625-5
  • HA3-2625-5
  • HA3-2625-5
  • HA3-2625-5
  • no_image
  • no_image
  • no_image
  • no_image
  • no_image
  • no_image
  • 個
２営業日以内に回答いたします
この商品のお問い合わせ

HA3-2625-5 の詳細情報

  • 仕様・詳細
  • メーカー情報
型番HA3-2625-5
メーカーINTERSIL
Amplifier Type OPERATIONAL AMPLIFIER
Architecture VOLTAGE-FEEDBACK
Average Bias Current-Max (IIB) 0.04 uA
Bias Current-Max (IIB) @25C 0.025 uA
Common-mode Reject Ratio-Min 74 dB
Common-mode Reject Ratio-Nom 100 dB
Frequency Compensation NO
Input Offset Current-Max (IIO) 0.04 uA
Input Offset Voltage-Max 700 uV
JESD-30 Code R-PDIP-T8
JESD-609 Code e0
Length 9.585 mm
Low-Bias NO
Low-Offset NO
Micropower NO
Neg Supply Voltage Limit-Max -22.5 V
Neg Supply Voltage-Nom (Vsup) -15 V
Number of Functions 1
Number of Terminals 8
Operating Temperature-Max 75 Cel
Operating Temperature-Min 0 Cel
Package Body Material PLASTIC/EPOXY
Package Code DIP
Package Equivalence Code DIP8,.3
Package Shape RECTANGULAR
Package Style IN-LINE Meter
Power YES
Power Supplies +-15 V
Programmable Power NO
Qualification Status Not Qualified
Seated Height-Max 5.33 mm
Slew Rate-Min 20 V/us
Slew Rate-Nom 35 V/us
Sub Category Operational Amplifier
Supply Current-Max 4 mA
Supply Voltage Limit-Max 22.5 V
Supply Voltage-Nom (Vsup) 15 V
Surface Mount NO
Technology BIPOLAR
Temperature Grade COMMERCIAL EXTENDED
Terminal Finish TIN LEAD
Terminal Form THROUGH-HOLE
Terminal Pitch 2.54 mm
Terminal Position DUAL
Unity Gain BW-Nom 100000 kHz
Voltage Gain-Min 0.07
Wideband NO
Width 7.62 mm
会社名称Intersil Americas LLC
設立1967
所在地1001 Murphy Ranch Road Milpitas, CA 95035 USA
URLhttp://www.intersil.com/
