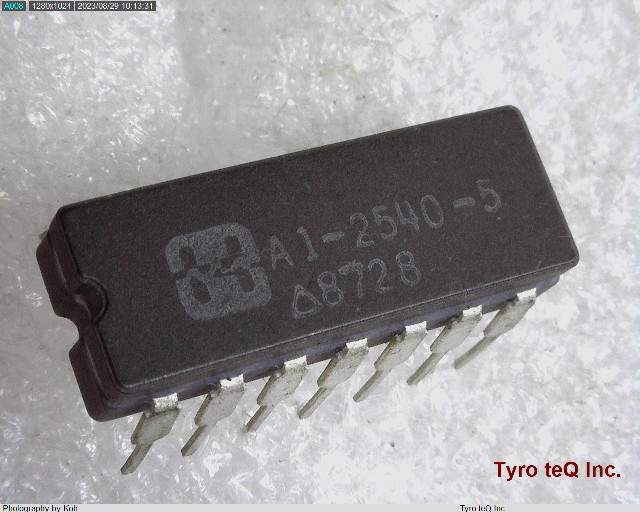

HA125405
1
-
- 個
２営業日以内に回答いたします
HA125405 の詳細情報
- 仕様・詳細
- メーカー情報
| 型番 | HA125405 |
|---|---|
| メーカー | INTERSIL |
| Amplifier Type | OPERATIONAL AMPLIFIER |
| Architecture | VOLTAGE-FEEDBACK |
| Average Bias Current-Max (IIB) | 25 uA |
| Bias Current-Max (IIB) @25C | 20 uA |
| Common-mode Reject Ratio-Min | 60 dB |
| Common-mode Reject Ratio-Nom | 72 dB |
| Frequency Compensation | NO |
| Input Offset Current-Max (IIO) | 8 uA |
| Input Offset Voltage-Max | 20000 uV |
| JESD-30 Code | R-CDIP-T14 |
| JESD-609 Code | e0 |
| Length | 19.94 mm |
| Low-Bias | YES |
| Low-Offset | NO |
| Micropower | NO |
| Neg Supply Voltage Limit-Max | -17.5 V |
| Neg Supply Voltage-Nom (Vsup) | -15 V |
| Number of Functions | 1 |
| Number of Terminals | 14 |
| Operating Temperature-Max | 70 Cel |
| Operating Temperature-Min | 0 Cel |
| Package Body Material | CERAMIC |
| Package Code | DIP |
| Package Equivalence Code | DIP14,.3 |
| Package Shape | RECTANGULAR |
| Package Style | IN-LINE Meter |
| Power | NO |
| Power Supplies | +-15 V |
| Programmable Power | NO |
| Qualification Status | Not Qualified |
| Seated Height-Max | 5.08 mm |
| Slew Rate-Min | 320 V/us |
| Slew Rate-Nom | 400 V/us |
| Sub Category | Operational Amplifier |
| Supply Current-Max | 25 mA |
| Supply Voltage Limit-Max | 17.5 V |
| Supply Voltage-Nom (Vsup) | 15 V |
| Surface Mount | NO |
| Technology | BIPOLAR |
| Temperature Grade | COMMERCIAL |
| Terminal Finish | TIN LEAD |
| Terminal Form | THROUGH-HOLE |
| Terminal Pitch | 2.54 mm |
| Terminal Position | DUAL |
| Unity Gain BW-Nom | 400000 kHz |
| Voltage Gain-Min | 10 |
| Wideband | NO |
| Width | 7.62 mm |
| 会社名称 | Intersil Americas LLC |
|---|---|
| 設立 | 1967 |
| 所在地 | 1001 Murphy Ranch Road Milpitas, CA 95035 USA |
| URL | http://www.intersil.com/ |
