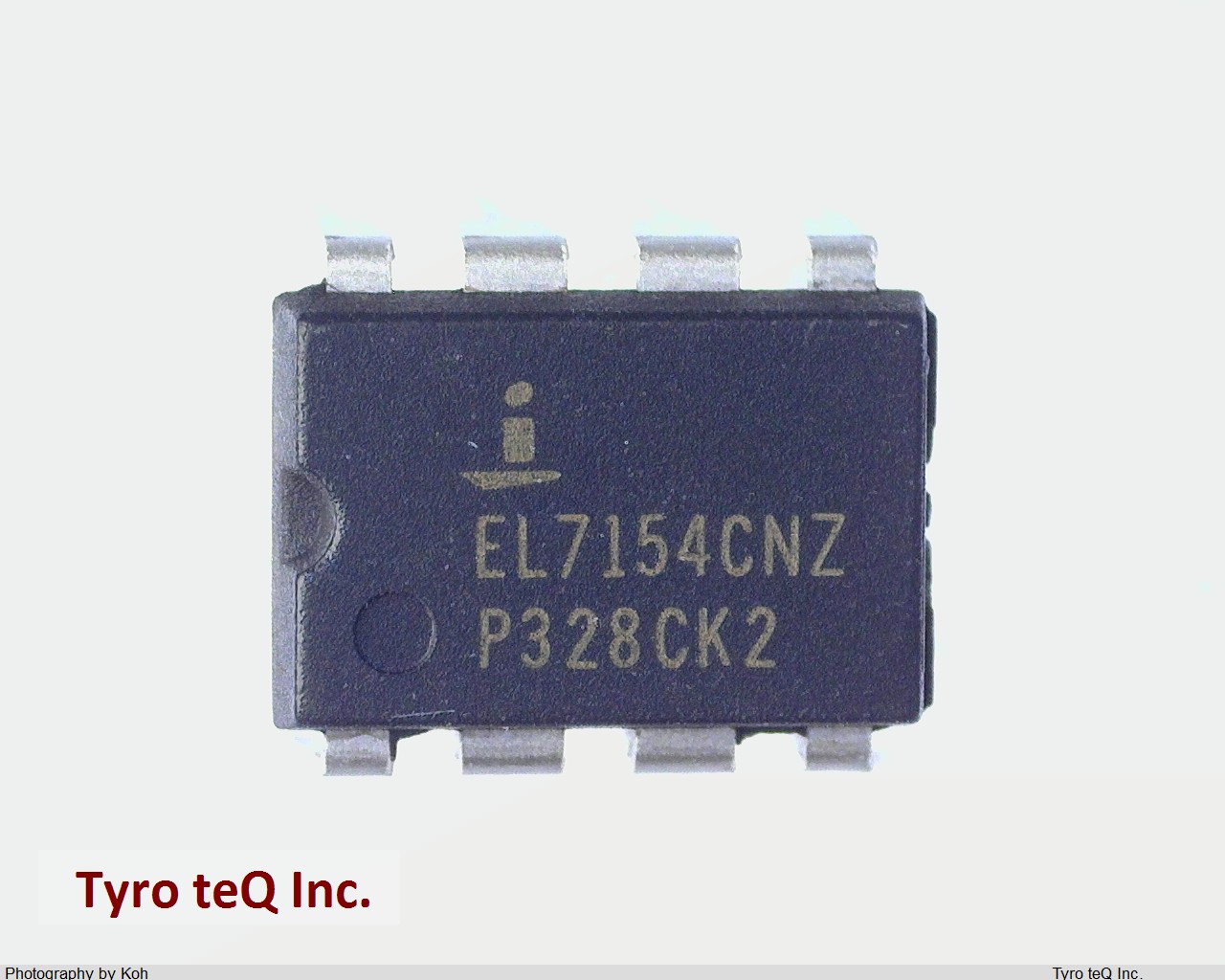

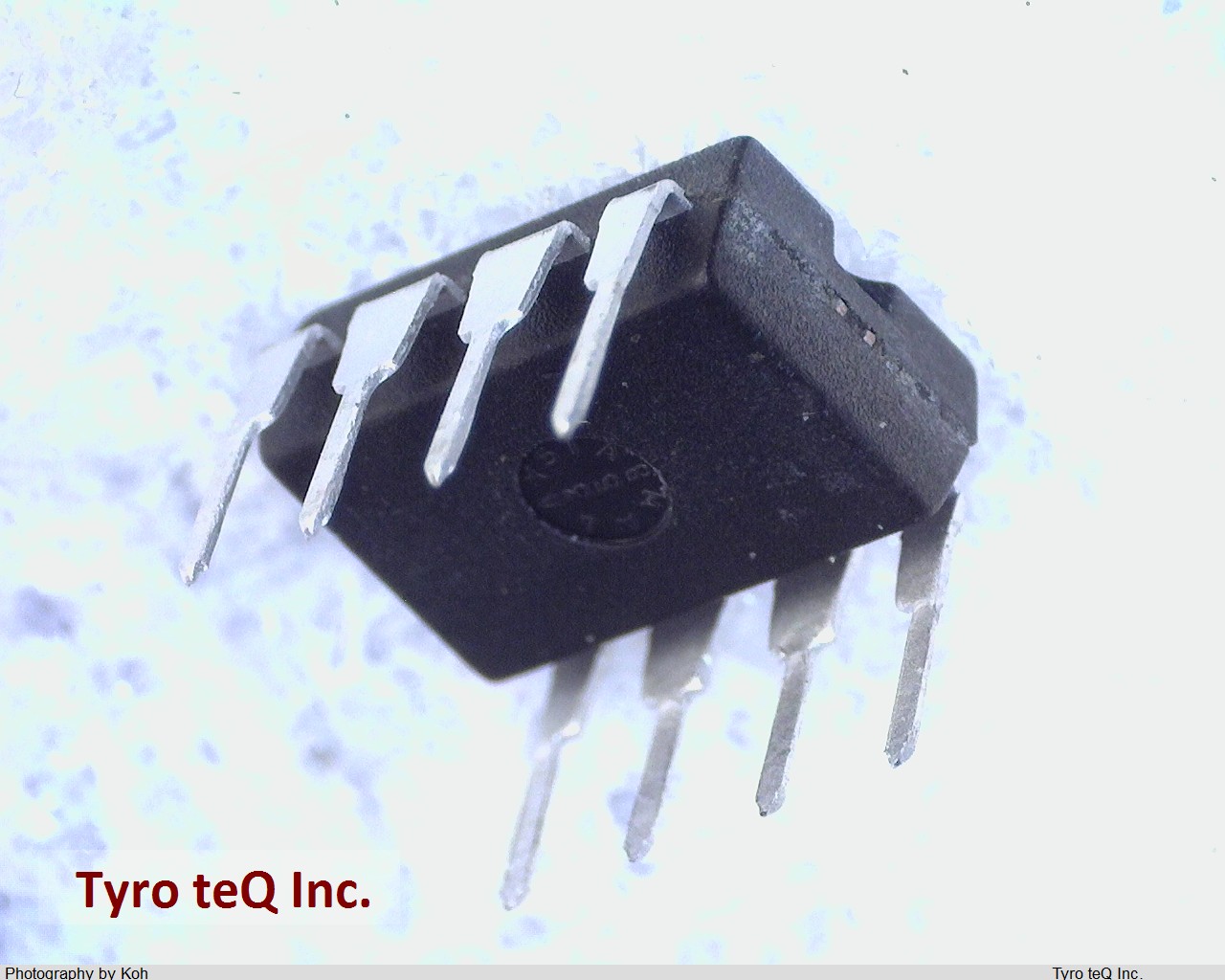

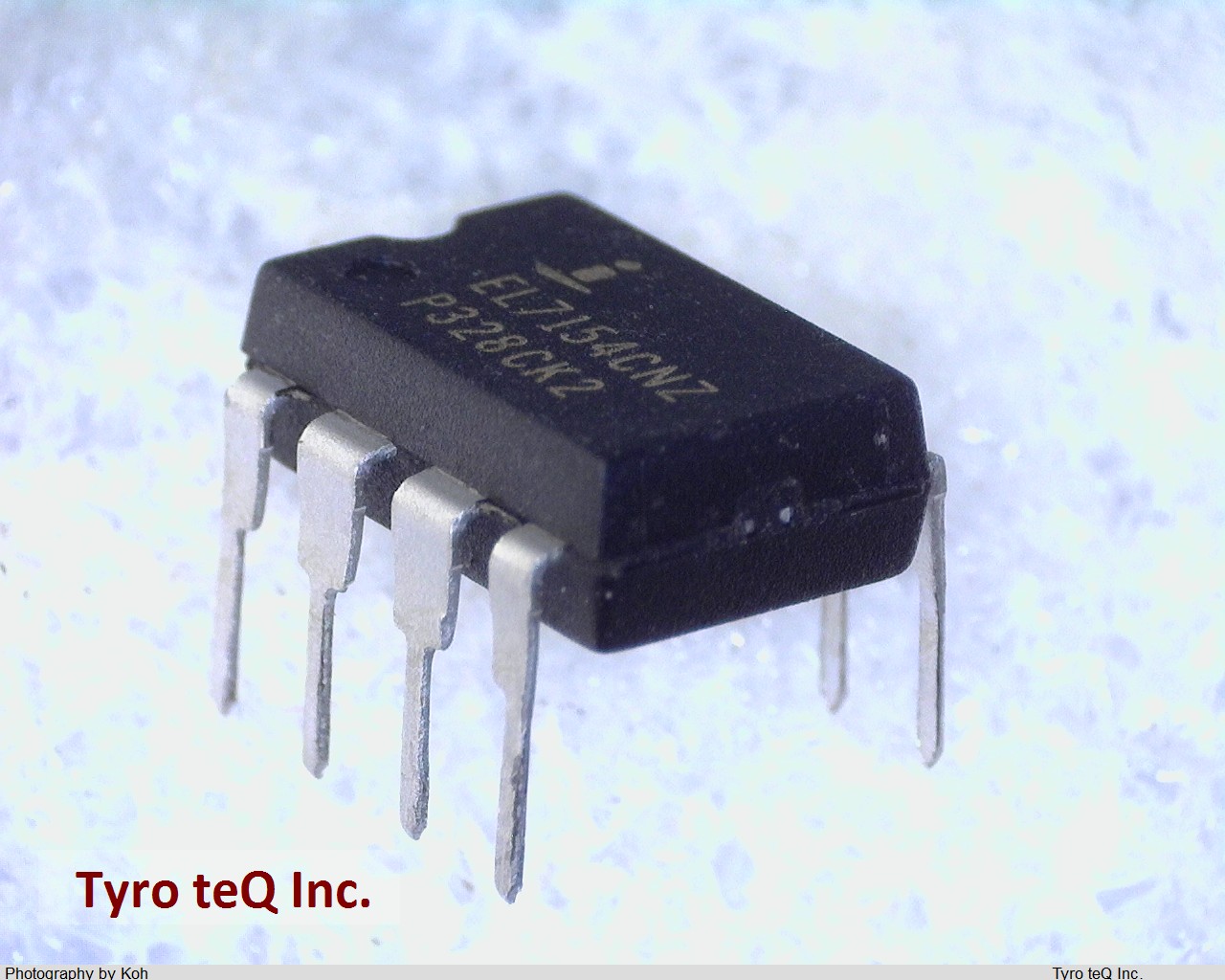

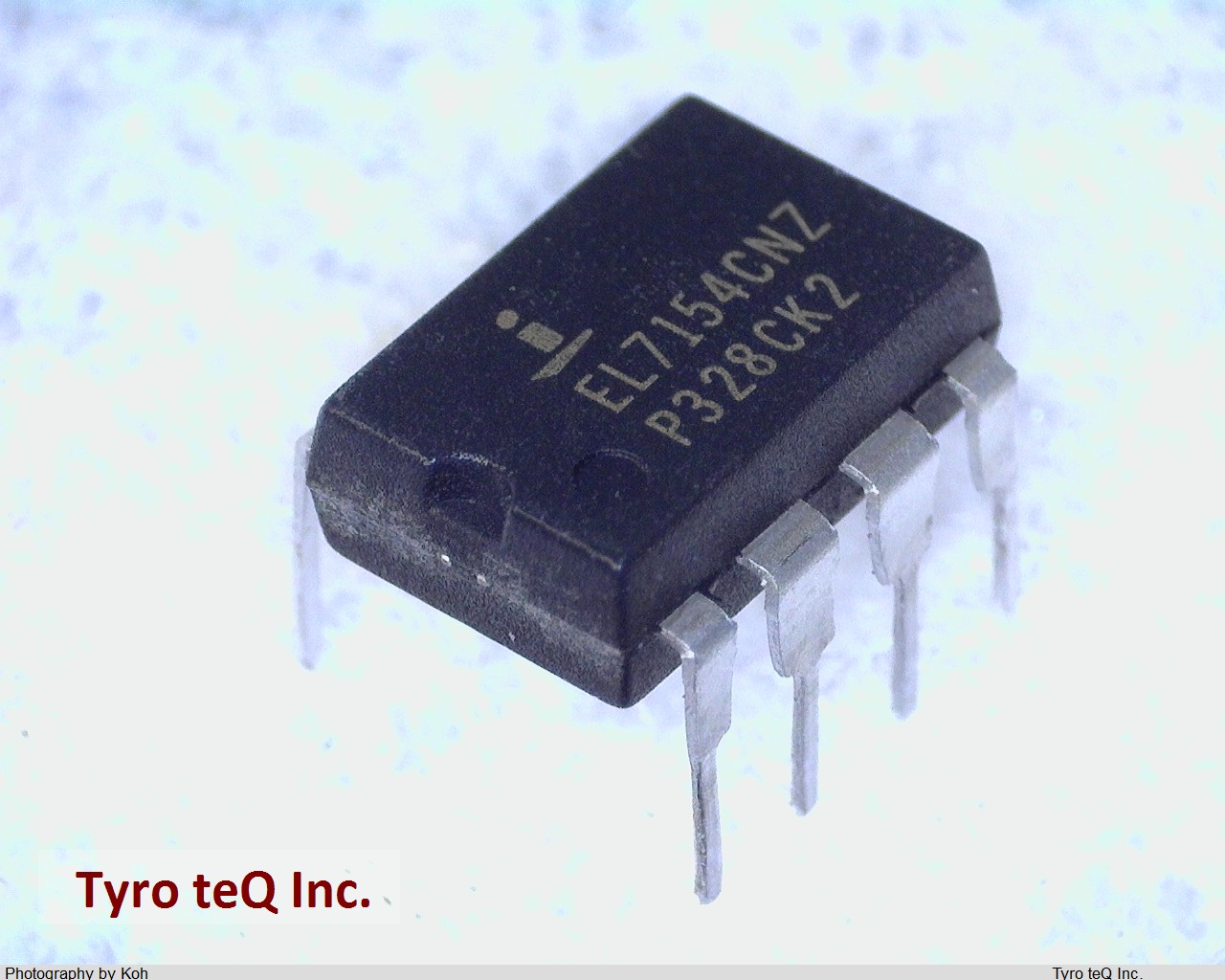

EL7154CNZ データシート

Name: EL7154CNZ
Brand: INTERSIL
SKU: 150032553-0000-0000-0000

EL7154CNZ - INTERSIL の商品詳細ページです。

２営業日以内に回答いたします

EL7154CNZ の詳細情報

型番	EL7154CNZ
メーカー	INTERSIL
データシート
Interface IC Type	BUFFER OR INVERTER BASED PERIPHERAL DRIVER
JESD-30 Code	R-PDIP-T8
JESD-609 Code	e3
Length	9.525 mm
Negative Supply Voltage-Nom	-3 V
Number of Functions	1
Number of Terminals	8
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Output Current Flow Direction	SOURCE AND SINK
Output Peak Current Limit-Nom	4 A
Package Body Material	PLASTIC/EPOXY
Package Code	DIP
Package Equivalence Code	DIP8,.3
Package Shape	RECTANGULAR
Package Style	IN-LINE Meter
Power Supplies	12 V
Qualification Status	Not Qualified
Seated Height-Max	5.334 mm
Sub Category	Other Interface ICs
Supply Voltage-Max	16 V
Supply Voltage-Min	4.5 V
Supply Voltage-Nom	12 V
Supply Voltage1-Nom	12 V
Surface Mount	NO
Temperature Grade	INDUSTRIAL
Terminal Finish	MATTE TIN
Terminal Form	THROUGH-HOLE
Terminal Pitch	2.54 mm
Terminal Position	DUAL
Turn-off Time	0.025 us
Turn-on Time	0.025 us
Width	7.62 mm
