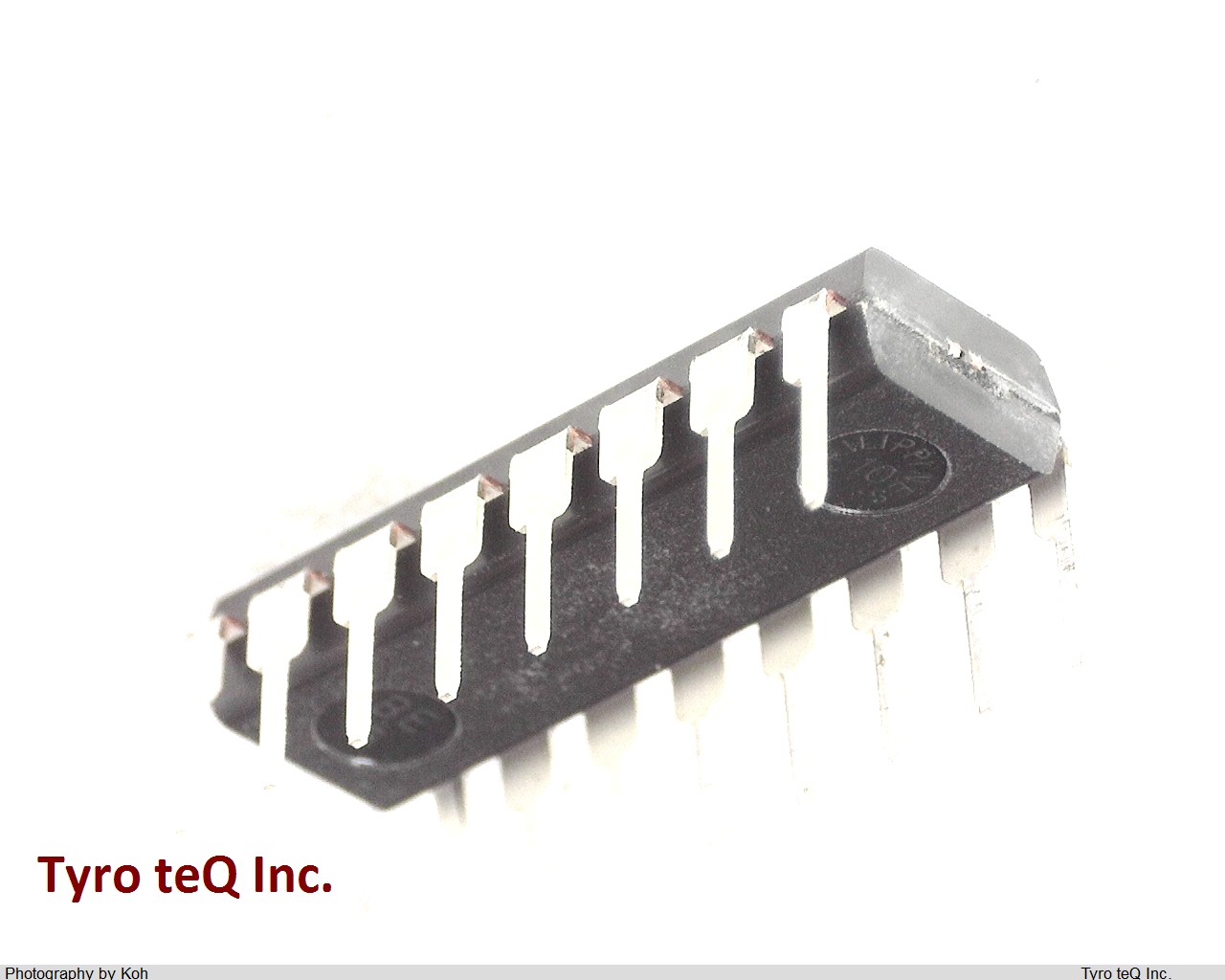

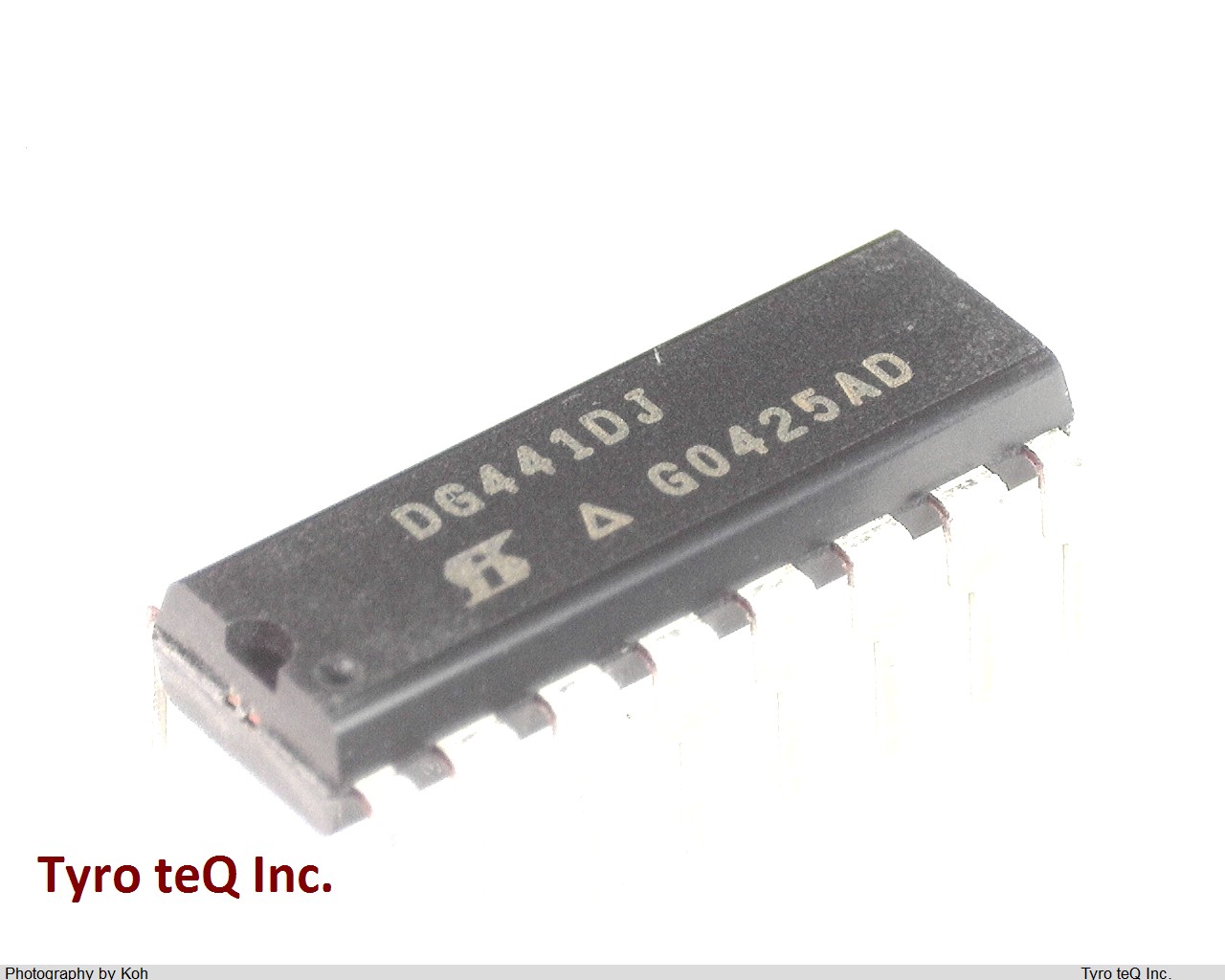

DG441DJ

Name: DG441DJ
Brand: INTERSIL
SKU: 140201733-0000-0000-0000

DG441DJ - INTERSIL の商品詳細ページです。

２営業日以内に回答いたします

DG441DJ の詳細情報

型番	DG441DJ
メーカー	INTERSIL
Additional Feature	IT CAN ALSO OPERATE WITH 5V TO 34V SINGLE SUPPLY
Analog IC - Other Type	SPST
JESD-30 Code	R-GDIP-T16
JESD-609 Code	e0
Length	19.17 mm
Moisture Sensitivity Level	1
Neg Supply Voltage-Max (Vsup)	-20 V
Neg Supply Voltage-Min (Vsup)	-5 V
Neg Supply Voltage-Nom (Vsup)	-15 V
Normal Position	NC V
Number of Channels	1
Number of Functions	4
Number of Terminals	16
Off-state Isolation-Nom	60 dB
On-state Resistance Match-Nom	4 ohm
On-state Resistance-Max (Ron)	85 ohm
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Output	SEPARATE OUTPUT V
Package Body Material	CERAMIC, GLASS-SEALED
Package Code	DIP
Package Equivalence Code	DIP16,.3
Package Shape	RECTANGULAR
Package Style	IN-LINE Meter
Peak Reflow Temperature (Cel)	260
Power Supplies	+-15 V
Qualification Status	Not Qualified
Seated Height-Max	4.572 mm
Sub Category	Multiplexer or Switches
Supply Current-Max (Isup)	0.1 mA
Supply Voltage-Max (Vsup)	20 V
Supply Voltage-Min (Vsup)	4.5 V
Supply Voltage-Nom (Vsup)	15 V
Surface Mount	NO
Switch-off Time-Max	120 ns
Switch-on Time-Max	250 ns
Switching	BREAK-BEFORE-MAKE V
Technology	CMOS
Temperature Grade	INDUSTRIAL
Terminal Finish	MATTE TIN
Terminal Form	THROUGH-HOLE
Terminal Pitch	2.54 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	30
Width	7.62 mm
