CS82C55A96 データシート

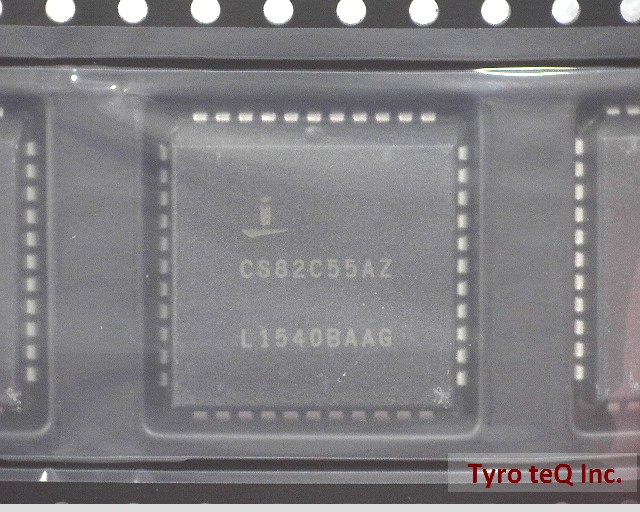

Name: CS82C55A96
Brand: INTERSIL
SKU: 130266218-0000-0000-0000

CS82C55A96 - INTERSIL の商品詳細ページです。

23時間26分後以内に見積もり依頼を頂ければ、
06月04日(火) 9:00 までに見積もり回答いたします。

検討リストに追加する

CS82C55A96 の詳細情報

型番	CS82C55A96
メーカー	INTERSIL
データシート
Clock Frequency-Max	8 MHz
External Data Bus Width	8
JESD-30 Code	S-PQCC-J44
JESD-609 Code	e0
Length	16.585 mm
Moisture Sensitivity Level	4
Number of I/O Lines	24
Number of Ports	3
Number of Terminals	44
Operating Temperature-Max	70 Cel
Operating Temperature-Min	0 Cel
Package Body Material	PLASTIC/EPOXY
Package Code	QCCJ
Package Equivalence Code	LDCC44,.7SQ
Package Shape	SQUARE
Package Style	CHIP CARRIER Meter
Power Supplies	5 V
Qualification Status	Not Qualified
Seated Height-Max	4.57 mm
Sub Category	Parallel IO Port
Supply Current-Max	8 mA
Supply Voltage-Max	5.5 V
Supply Voltage-Min	4.5 V
Supply Voltage-Nom	5 V
Surface Mount	YES
Technology	CMOS
Temperature Grade	COMMERCIAL
Terminal Finish	TIN LEAD
Terminal Form	J BEND
Terminal Pitch	1.27 mm
Terminal Position	QUAD
Width	16.585 mm
uPs/uCs/Peripheral ICs Type	PARALLEL IO PORT, GENERAL PURPOSE
