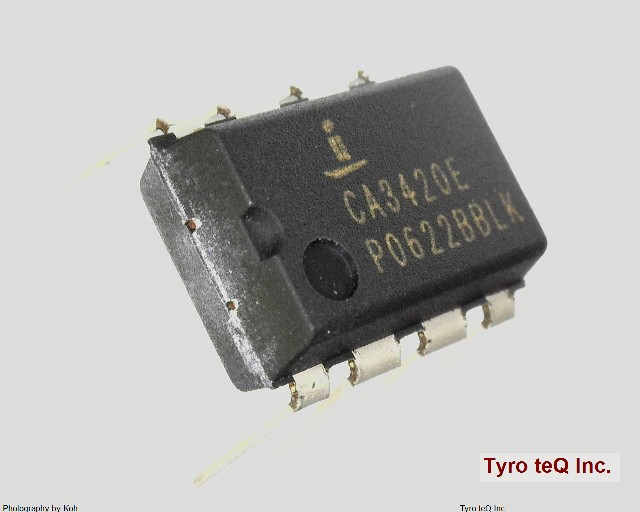

CA3420E
データシート
1
13時間45分後
以内に見積もり依頼を頂ければ、
05月27日(月) 9:00
までに見積もり回答いたします。
- 個
CA3420E の詳細情報
- 仕様・詳細
- メーカー情報
| 型番 | CA3420E |
|---|---|
| メーカー | INTERSIL |
| データシート |  |
| Amplifier Type | OPERATIONAL AMPLIFIER |
| Architecture | VOLTAGE-FEEDBACK |
| Average Bias Current-Max (IIB) | 5.0E-6 uA |
| Bias Current-Max (IIB) @25C | 5.0E-6 uA |
| Common-mode Reject Ratio-Min | 70 dB |
| Common-mode Reject Ratio-Nom | 80 dB |
| Frequency Compensation | YES |
| Input Offset Voltage-Max | 10000 uV |
| JESD-30 Code | R-PDIP-T8 |
| JESD-609 Code | e0 |
| Length | 9.585 mm |
| Low-Bias | YES |
| Low-Offset | NO |
| Micropower | NO |
| Neg Supply Voltage Limit-Max | -11 V |
| Neg Supply Voltage-Nom (Vsup) | -10 V |
| Number of Functions | 1 |
| Number of Terminals | 8 |
| Operating Temperature-Max | 125 Cel |
| Operating Temperature-Min | -55 Cel |
| Package Body Material | PLASTIC/EPOXY |
| Package Code | DIP |
| Package Equivalence Code | DIP8,.3 |
| Package Shape | RECTANGULAR |
| Package Style | IN-LINE Meter |
| Peak Reflow Temperature (Cel) | NOT SPECIFIED |
| Power | NO |
| Power Supplies | +-10 V |
| Programmable Power | NO |
| Qualification Status | Not Qualified |
| Seated Height-Max | 5.33 mm |
| Slew Rate-Nom | 0.5 V/us |
| Sub Category | Operational Amplifier |
| Supply Current-Max | 1 mA |
| Supply Voltage Limit-Max | 11 V |
| Supply Voltage-Nom (Vsup) | 10 V |
| Surface Mount | NO |
| Technology | BIMOS |
| Temperature Grade | MILITARY |
| Terminal Finish | MATTE TIN |
| Terminal Form | THROUGH-HOLE |
| Terminal Pitch | 2.54 mm |
| Terminal Position | DUAL |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED |
| Unity Gain BW-Nom | 500 kHz |
| Voltage Gain-Min | 10000 |
| Wideband | NO |
| Width | 7.62 mm |
| 会社名称 | Intersil Americas LLC |
|---|---|
| 設立 | 1967 |
| 所在地 | 1001 Murphy Ranch Road Milpitas, CA 95035 USA |
| URL | http://www.intersil.com/ |
