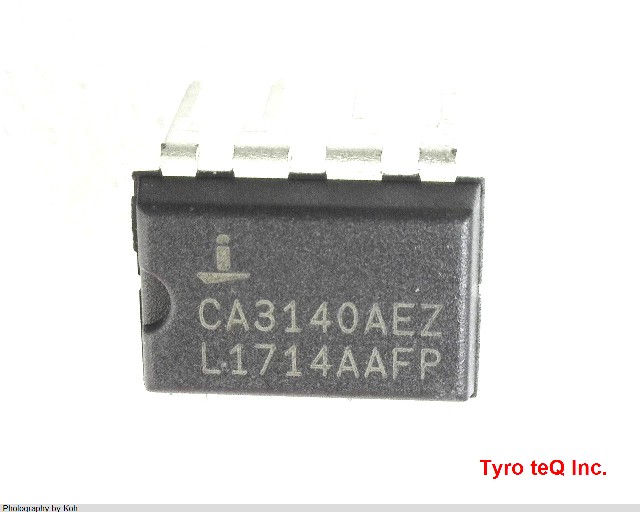

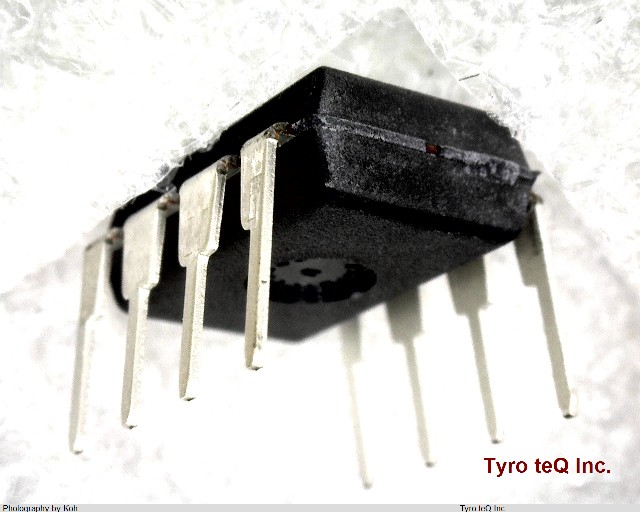

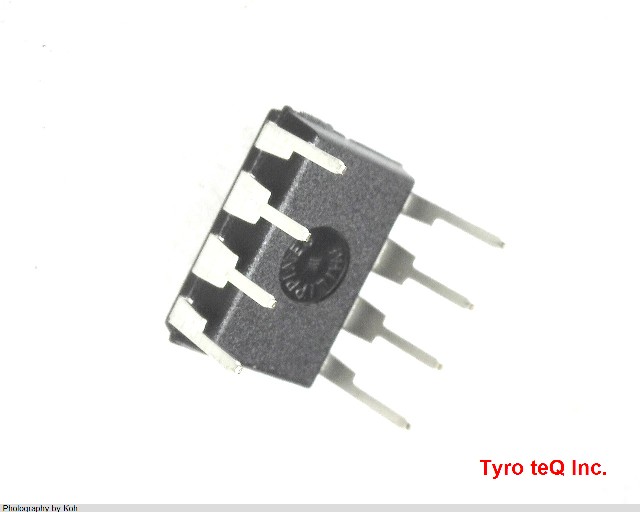

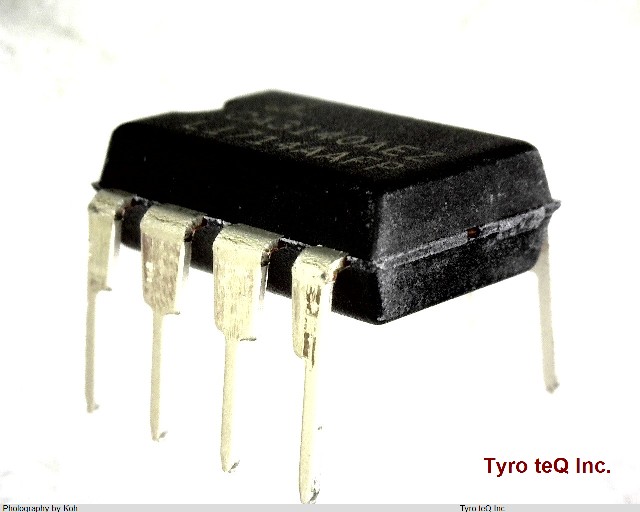

CA3140AEZ
CA3140AEZ
CA3140AEZ
CA3140AEZ

CA3140AEZ - INTERSIL の商品詳細ページです。

1

11時間10分後 以内に見積もり依頼を頂ければ、
04月30日(火) 9:00 までに見積もり回答いたします。

  • 個
この商品のお問い合わせ

CA3140AEZ の詳細情報

  • 仕様・詳細
  • メーカー情報
型番CA3140AEZ
メーカーINTERSIL
データシートProduct_list_pdf
Amplifier Type OPERATIONAL AMPLIFIER
Architecture VOLTAGE-FEEDBACK
Bias Current-Max (IIB) @25C 4.0E-5 uA
Common-mode Reject Ratio-Nom 90 dB
Frequency Compensation YES
Input Offset Voltage-Max 5000 uV
JESD-30 Code R-PDIP-T8
JESD-609 Code e3
Length 9.585 mm
Low-Bias YES
Low-Offset NO
Neg Supply Voltage Limit-Max -18 V
Neg Supply Voltage-Nom (Vsup) -15 V
Number of Functions 1
Number of Terminals 8
Operating Temperature-Max 125 Cel
Operating Temperature-Min -55 Cel
Package Body Material PLASTIC/EPOXY
Package Code DIP
Package Equivalence Code DIP8,.3
Package Shape RECTANGULAR
Package Style IN-LINE Meter
Packing Method TUBE
Power Supplies 5/+-15 V
Qualification Status Not Qualified
Seated Height-Max 5.33 mm
Slew Rate-Nom 9 V/us
Sub Category Operational Amplifier
Supply Current-Max 6 mA
Supply Voltage Limit-Max 18 V
Supply Voltage-Nom (Vsup) 15 V
Surface Mount NO
Technology BIMOS
Temperature Grade MILITARY
Terminal Finish MATTE TIN
Terminal Form THROUGH-HOLE
Terminal Pitch 2.54 mm
Terminal Position DUAL
Unity Gain BW-Nom 4500 kHz
Voltage Gain-Min 19950
Width 7.62 mm
