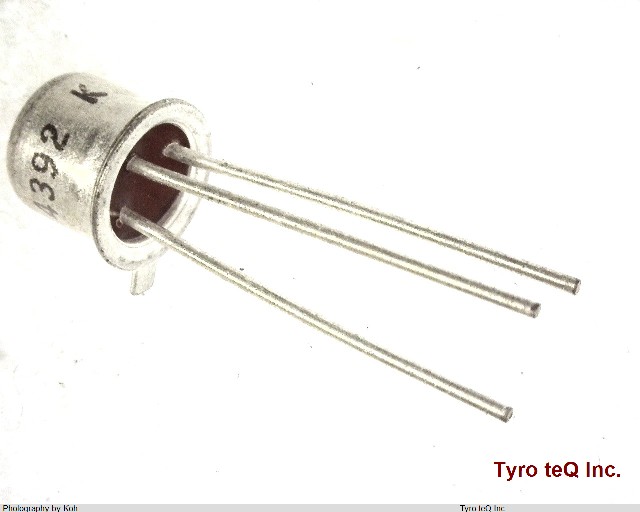

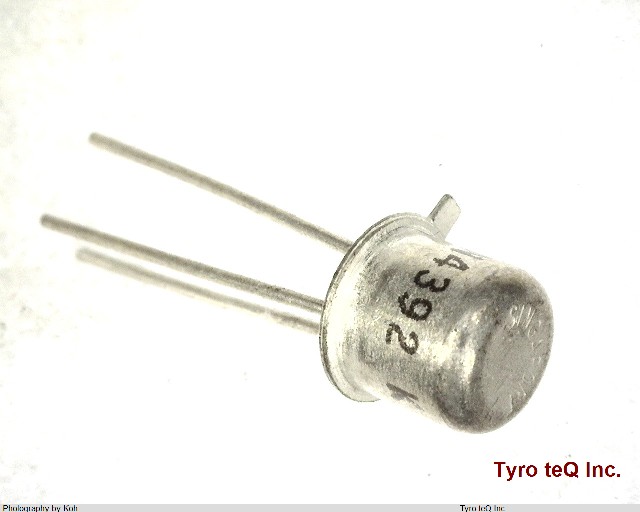

2N4392

Name: 2N4392
Brand: INTERSIL
SKU: 400063159-0000-0000-0000

2N4392 - INTERSIL の商品詳細ページです。

２営業日以内に回答いたします

2N4392 の詳細情報

型番	2N4392
メーカー	INTERSIL
Additional Feature	LOW INSERTION LOSS
Case Connection	GATE
Configuration	SINGLE
DS Breakdown Voltage-Min	40 V
Drain Current-Max (ID)	0.15 A
Drain-source On Resistance-Max	60 ohm
FET Technology	JUNCTION
Feedback Cap-Max (Crss)	3.5 pF
JEDEC-95 Code	TO-18
JESD-30 Code	O-MBCY-W3
JESD-609 Code	e0
Moisture Sensitivity Level	1
Number of Elements	1
Number of Terminals	3
Operating Mode	DEPLETION MODE
Operating Temperature-Max	150 Cel
Operating Temperature-Min	-65 Cel
Package Body Material	CERAMIC, METAL-SEALED COFIRED
Package Shape	RECTANGULAR
Package Style	CYLINDRICAL Meter
Peak Reflow Temperature (Cel)	260
Polarity/Channel Type	N-CHANNEL
Power Dissipation Ambient-Max	1.5 W
Power Dissipation-Max (Abs)	1.8 W
Qualification Status	Not Qualified
Sub Category	Other Transistors
Surface Mount	NO
Terminal Finish	GOLD
Terminal Form	GULL WING
Terminal Position	BOTTOM
Time@Peak Reflow Temperature-Max (s)	30
Transistor Application	CHOPPER
Transistor Element Material	SILICON
