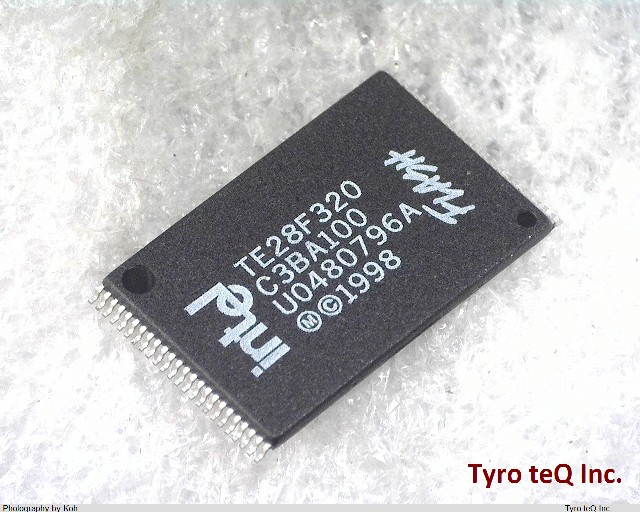

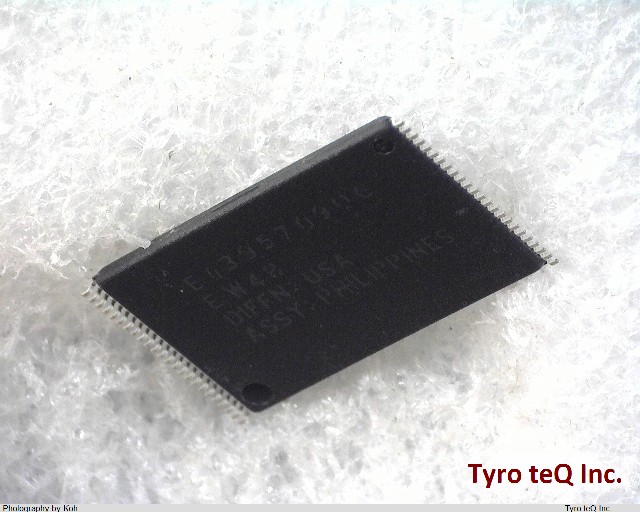

TE28F320C3BA100 データシート

Name: TE28F320C3BA100
Brand: INTEL
SKU: 300008890-0000-0000-0000

TE28F320C3BA100 - INTEL の商品詳細ページです。

２営業日以内に回答いたします

TE28F320C3BA100 の詳細情報

型番	TE28F320C3BA100
メーカー	INTEL
データシート
Access Time-Max	100 ns
Additional Feature	USER-SELECTABLE 3V OR 12V VPP; BOTTOM BOOT BLOCK
Boot Block	BOTTOM
Command User Interface	YES
Common Flash Interface	YES
Data Polling	NO
JESD-30 Code	R-PDSO-G48
JESD-609 Code	e0
Length	18.4 mm
Memory Density	33554432 bit
Memory IC Type	FLASH
Memory Width	16
Number of Functions	1
Number of Sectors/Size	8,63
Number of Terminals	48
Number of Words	2097152 words
Number of Words Code	2M
Operating Mode	ASYNCHRONOUS
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Organization	2MX16
Package Body Material	PLASTIC/EPOXY
Package Code	TSOP1
Package Equivalence Code	TSSOP48,.8,20
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE, THIN PROFILE Meter
Parallel/Serial	PARALLEL
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Power Supplies	1.8/3.3,3/3.3 V
Programming Voltage	3 V
Qualification Status	Not Qualified
Seated Height-Max	1.2 mm
Sector Size	4K,32K Words
Standby Current-Max	5.0E-6 Amp
Sub Category	Flash Memories
Supply Current-Max	0.018 mA
Supply Voltage-Max (Vsup)	3.3 V
Supply Voltage-Min (Vsup)	2.7 V
Supply Voltage-Nom (Vsup)	3 V
Surface Mount	YES
Technology	CMOS
Temperature Grade	INDUSTRIAL
Terminal Finish	TIN LEAD
Terminal Form	GULL WING
Terminal Pitch	0.5 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Toggle Bit	NO
Type	NOR TYPE
Width	12 mm
