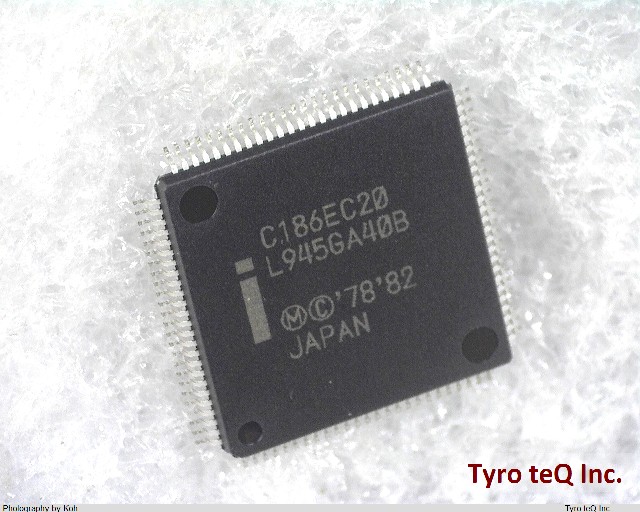

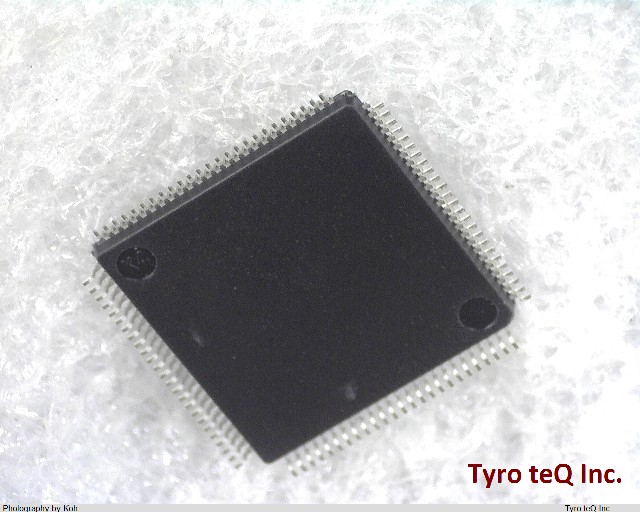

SB80C186EC20

Name: SB80C186EC20
Brand: INTEL
SKU: 290003923-0000-0000-0000

SB80C186EC20 - INTEL の商品詳細ページです。

２営業日以内に回答いたします

SB80C186EC20 の詳細情報

型番	SB80C186EC20
メーカー	INTEL
Address Bus Width	20
Bit Size	16
Boundary Scan	NO
Clock Frequency-Max	40 MHz
External Data Bus Width	16
Format	FIXED POINT
Integrated Cache	NO
JESD-30 Code	S-PQFP-G100
JESD-609 Code	e0
Length	14 mm
Low Power Mode	YES
Number of DMA Channels	4
Number of External Interrupts	9
Number of Serial I/Os	2
Number of Terminals	100
On Chip Data RAM Width	0
Operating Temperature-Max	70 Cel
Operating Temperature-Min	0 Cel
Package Body Material	PLASTIC/EPOXY
Package Code	LFQFP
Package Equivalence Code	QFP100,.63SQ,20
Package Shape	SQUARE
Package Style	FLATPACK, LOW PROFILE, FINE PITCH Meter
Power Supplies	5 V
Qualification Status	Not Qualified
RAM (words)	0
Seated Height-Max	1.66 mm
Speed	20 rpm
Sub Category	Microprocessors
Supply Current-Max	100 mA
Supply Voltage-Max	5.5 V
Supply Voltage-Min	4.5 V
Supply Voltage-Nom	5 V
Surface Mount	YES
Technology	CMOS
Temperature Grade	COMMERCIAL
Terminal Finish	TIN LEAD
Terminal Form	GULL WING
Terminal Pitch	0.5 mm
Terminal Position	QUAD
Width	14 mm
uPs/uCs/Peripheral ICs Type	MICROPROCESSOR
