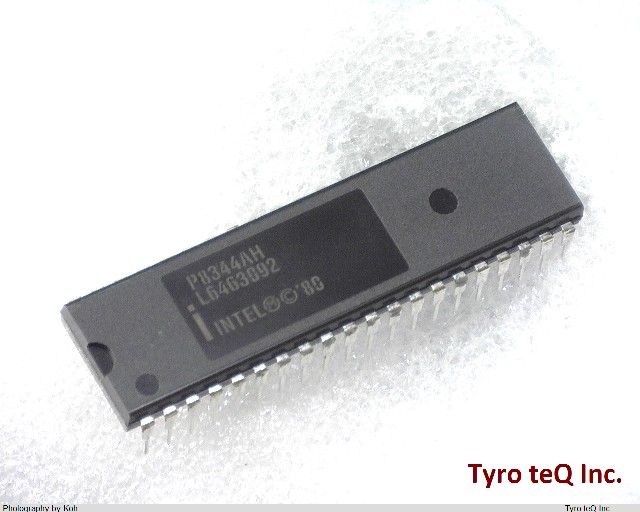

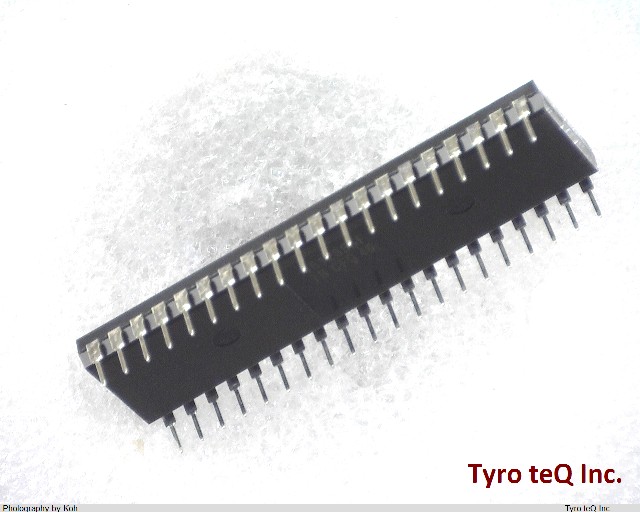

P8344AH

Name: P8344AH
Brand: INTEL
SKU: 260231827-0000-0000-0000

P8344AH - INTEL の商品詳細ページです。

２営業日以内に回答いたします

P8344AH の詳細情報

型番	P8344AH
メーカー	INTEL
ADC Channels	NO
Additional Feature	BOOLEAN PROCESSOR; SERIAL INTERFACE UNIT
Address Bus Width	16
Bit Size	8
Boundary Scan	NO
CPU Family	8051
Clock Frequency-Max	12 MHz
DAC Channels	NO
DMA Channels	NO
External Data Bus Width	8
Format	FIXED POINT
Integrated Cache	NO
JESD-30 Code	R-PDIP-T40
Low Power Mode	NO
Number of DMA Channels	0
Number of External Interrupts	2
Number of I/O Lines	32
Number of Serial I/Os	1
Number of Terminals	40
Number of Timers	1
On Chip Data RAM Width	8
Operating Temperature-Max	70 Cel
Operating Temperature-Min	0 Cel
PWM Channels	NO
Package Body Material	PLASTIC/EPOXY
Package Code	DIP
Package Equivalence Code	DIP40,.6
Package Shape	RECTANGULAR
Package Style	IN-LINE Meter
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Power Supplies	5 V
Qualification Status	Not Qualified
RAM (bytes)	192
RAM (words)	192
ROM Programmability	MROM
Speed	12 rpm
Sub Category	Microcontrollers
Supply Current-Max	200 mA
Supply Voltage-Max	5.5 V
Supply Voltage-Min	4.5 V
Supply Voltage-Nom	5 V
Surface Mount	NO
Technology	CMOS
Temperature Grade	COMMERCIAL
Terminal Form	THROUGH-HOLE
Terminal Pitch	2.54 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
uPs/uCs/Peripheral ICs Type	MICROCONTROLLER
