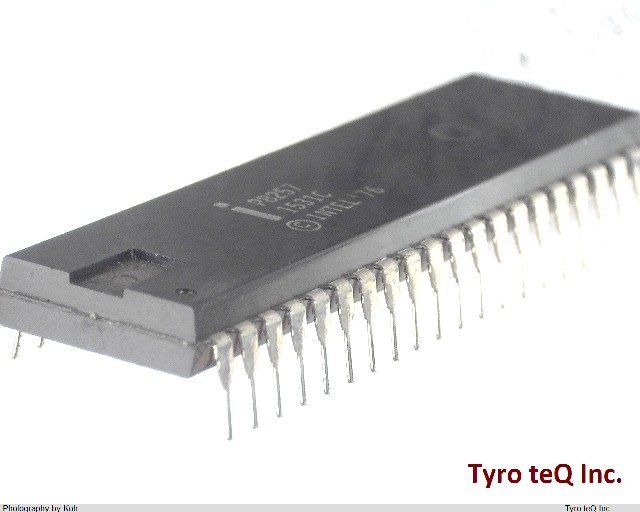

P8257
1
-
- 個
２営業日以内に回答いたします
P8257 の詳細情報
- 仕様・詳細
- メーカー情報
| 型番 | P8257 |
|---|---|
| メーカー | INTEL |
| Address Bus Width | 8 |
| Bus Compatibility | 8080A; 9080A |
| Clock Frequency-Max | 3.125 MHz |
| External Data Bus Width | 8 |
| JESD-30 Code | R-PDIP-T40 |
| JESD-609 Code | e0 |
| Length | 52.26 mm |
| Number of DMA Channels | 4 |
| Number of Terminals | 40 |
| Operating Temperature-Max | 70 Cel |
| Operating Temperature-Min | 0 Cel |
| Package Body Material | PLASTIC/EPOXY |
| Package Code | DIP |
| Package Equivalence Code | DIP40,.6 |
| Package Shape | RECTANGULAR |
| Package Style | IN-LINE Meter |
| Power Supplies | 5 V |
| Qualification Status | Not Qualified |
| Seated Height-Max | 5.08 mm |
| Sub Category | DMA Controllers |
| Supply Current-Max | 120 mA |
| Supply Voltage-Max | 5.25 V |
| Supply Voltage-Min | 4.5 V |
| Supply Voltage-Nom | 5 V |
| Surface Mount | NO |
| Technology | CMOS |
| Temperature Grade | COMMERCIAL |
| Terminal Finish | TIN LEAD |
| Terminal Form | THROUGH-HOLE |
| Terminal Pitch | 2.54 mm |
| Terminal Position | DUAL |
| Width | 15.24 mm |
| uPs/uCs/Peripheral ICs Type | DMA CONTROLLER |
| 会社名称 | Intel Corporation |
|---|---|
| 設立 | 1989 |
| 所在地 | 2200 Mission College Blvd. Santa Clara, CA 95054-1549 USA |
| URL | http://www.intel.com/ |
P8257のレビュー
P8257 のご注文について
050-3612-7934
045-263-9989
P8257 - INTEL の商品詳細ページです。
