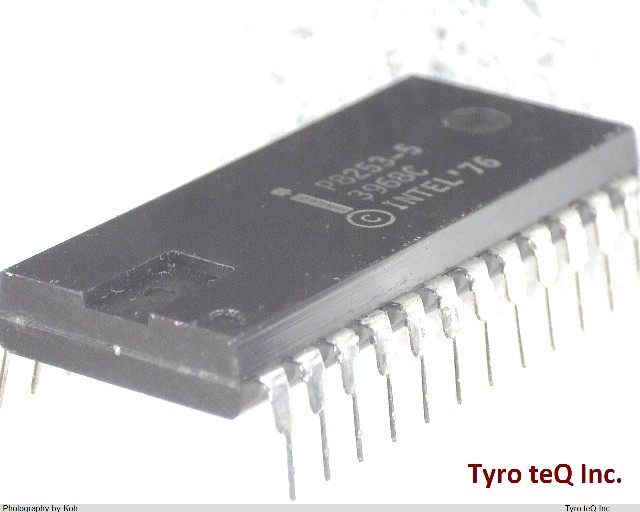

P8253-5
1
-
- 個
２営業日以内に回答いたします
P8253-5 の詳細情報
- 仕様・詳細
- メーカー情報
| 型番 | P8253-5 |
|---|---|
| メーカー | INTEL |
| Additional Feature | PROGRAMMABLE MODES |
| Bus Compatibility | 8085A; 8080A |
| External Data Bus Width | 8 |
| Information Access Method | PARALLEL, DIRECT ADDRESS |
| JESD-30 Code | R-PDIP-T24 |
| JESD-609 Code | e0 |
| Length | 31.877 mm |
| Number of Bits | 16 |
| Number of Terminals | 24 |
| Number of Timers | 3 |
| Operating Temperature-Max | 70 Cel |
| Operating Temperature-Min | 0 Cel |
| Package Body Material | PLASTIC/EPOXY |
| Package Code | DIP |
| Package Shape | RECTANGULAR |
| Package Style | IN-LINE Meter |
| Peak Reflow Temperature (Cel) | NOT SPECIFIED |
| Qualification Status | Not Qualified |
| Seated Height-Max | 5.461 mm |
| Supply Current-Max | 140 mA |
| Supply Voltage-Max | 5.5 V |
| Supply Voltage-Min | 4.5 V |
| Supply Voltage-Nom | 5 V |
| Surface Mount | NO |
| Technology | CMOS |
| Temperature Grade | COMMERCIAL |
| Terminal Finish | TIN LEAD |
| Terminal Form | THROUGH-HOLE |
| Terminal Pitch | 2.54 mm |
| Terminal Position | DUAL |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED |
| Width | 15.24 mm |
| uPs/uCs/Peripheral ICs Type | TIMER, MEMORY REFRESH |
| 会社名称 | Intel Corporation |
|---|---|
| 設立 | 1989 |
| 所在地 | 2200 Mission College Blvd. Santa Clara, CA 95054-1549 USA |
| URL | http://www.intel.com/ |
