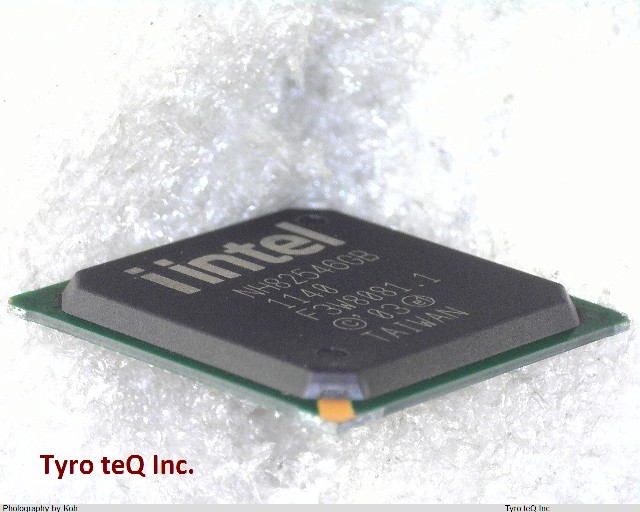

NH82546GB

Name: NH82546GB
Brand: INTEL
SKU: 240007561-0000-0000-0000

NH82546GB - INTEL の商品詳細ページです。

２営業日以内に回答いたします

NH82546GB の詳細情報

型番	NH82546GB
メーカー	INTEL
Address Bus Width	64
Boundary Scan	YES
Bus Compatibility	PCI
Clock Frequency-Max	25 MHz
Data Transfer Rate-Max	125 MBps
External Data Bus Width	64
JESD-30 Code	S-PBGA-B364
JESD-609 Code	e1
Length	21 mm
Low Power Mode	YES
Number of Serial I/Os	2
Number of Terminals	364
Operating Temperature-Max	55 Cel
Operating Temperature-Min	0 Cel
Package Body Material	PLASTIC/EPOXY
Package Code	BGA
Package Equivalence Code	BGA364,20X20,40
Package Shape	SQUARE
Package Style	GRID ARRAY Meter
Power Supplies	1.5,2.5,3.3 V
Qualification Status	Not Qualified
Seated Height-Max	2.43 mm
Sub Category	Serial IO/Communication Controllers
Supply Voltage-Max	1.57 V
Supply Voltage-Min	1.43 V
Supply Voltage-Nom	1.5 V
Surface Mount	YES
Technology	CMOS
Temperature Grade	COMMERCIAL
Terminal Finish	TIN SILVER COPPER

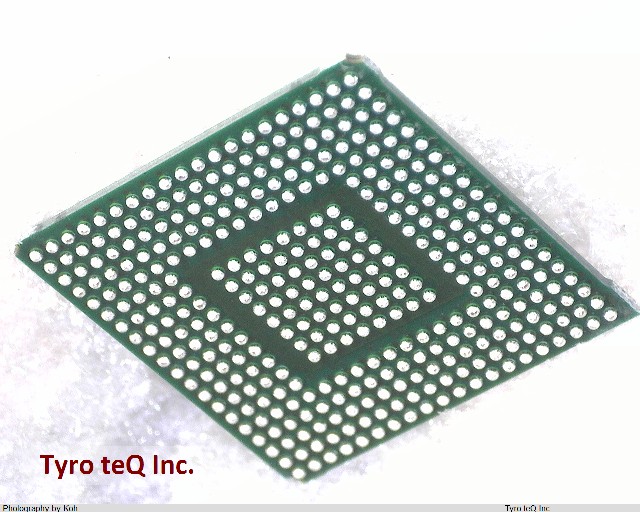

Terminal Form	BALL
Terminal Pitch	1 mm
Terminal Position	BOTTOM
Width	21 mm
uPs/uCs/Peripheral ICs Type	SERIAL IO/COMMUNICATION CONTROLLER, LAN
