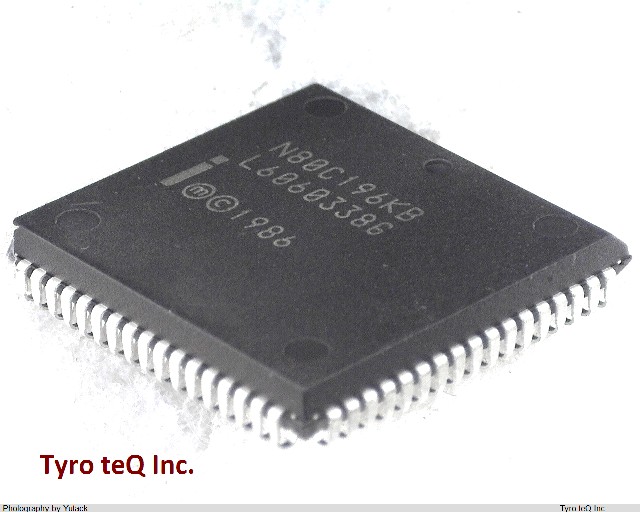

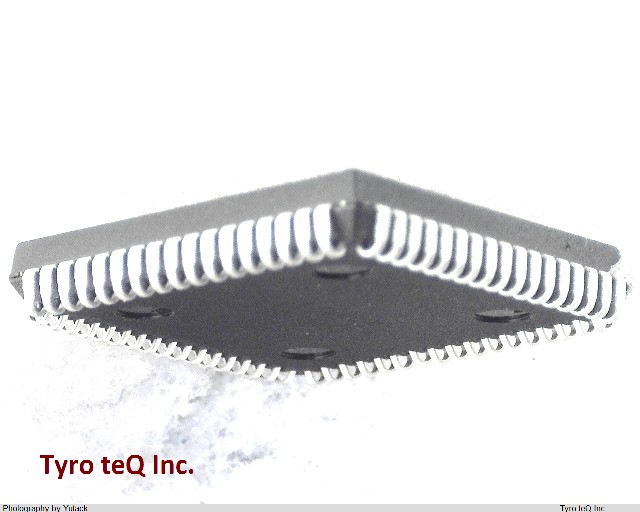

N80C196KB

Name: N80C196KB
Brand: INTEL
SKU: 240001042-0000-0000-0000

N80C196KB - INTEL の商品詳細ページです。

２営業日以内に回答いたします

N80C196KB の詳細情報

型番	N80C196KB
メーカー	INTEL
ADC Channels	YES
Additional Feature	FOUR SOFTWARE TIMERS; DYNAMIC BUS SIZING
Address Bus Width	16
Bit Size	16
Boundary Scan	NO
Clock Frequency-Max	10 MHz
DAC Channels	NO
DMA Channels	NO
External Data Bus Width	16
Format	FIXED POINT
Integrated Cache	NO
JESD-30 Code	S-PQCC-J68
Length	24.2 mm
Low Power Mode	YES
Number of DMA Channels	0
Number of External Interrupts	2
Number of I/O Lines	40
Number of Serial I/Os	1
Number of Terminals	68
Number of Timers	1
On Chip Data RAM Width	8
Operating Temperature-Max	70 Cel
Operating Temperature-Min	0 Cel
PWM Channels	YES
Package Body Material	PLASTIC/EPOXY
Package Code	QCCJ
Package Equivalence Code	LDCC68,1.0SQ
Package Shape	SQUARE
Package Style	CHIP CARRIER Meter
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Power Supplies	5 V
Qualification Status	Not Qualified
RAM (bytes)	232
RAM (words)	232
Seated Height-Max	4.83 mm
Speed	10 rpm
Sub Category	Microcontrollers
Supply Current-Max	47.23 mA
Supply Voltage-Max	5.5 V
Supply Voltage-Min	4.5 V
Supply Voltage-Nom	5 V
Surface Mount	YES
Technology	CMOS
Temperature Grade	COMMERCIAL
Terminal Form	J BEND
Terminal Pitch	1.27 mm
Terminal Position	QUAD
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Width	24.2 mm
uPs/uCs/Peripheral ICs Type	MICROCONTROLLER
