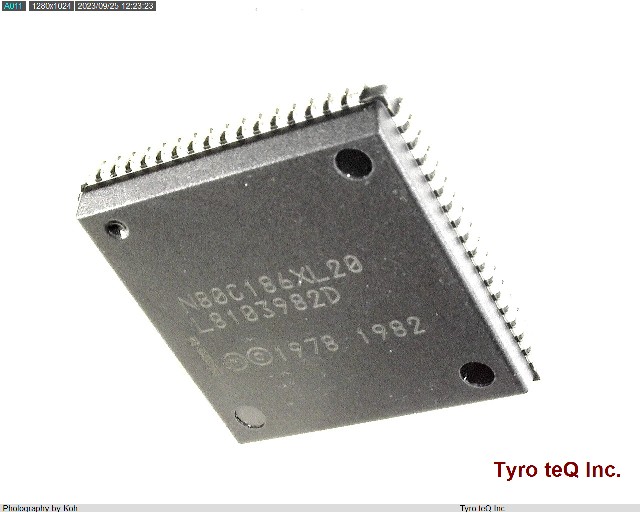

N80C186XL20 データシート

Name: N80C186XL20
Brand: INTEL
SKU: 240005660-0000-0000-0000

N80C186XL20 - INTEL の商品詳細ページです。

２営業日以内に回答いたします

N80C186XL20 の詳細情報

型番	N80C186XL20
メーカー	INTEL
データシート
Additional Feature	DRAM REFRESH CONTROLLER; 3 PROGRAMMABLE TIMERS; NUMERIC COPROCESSOR INTERFACE
Address Bus Width	20
Bit Size	16
Boundary Scan	NO
Clock Frequency-Max	40 MHz
External Data Bus Width	16
Format	FIXED POINT
Integrated Cache	NO
JESD-30 Code	S-PQCC-J68
JESD-609 Code	e0
Length	24.2316 mm
Low Power Mode	YES
Number of DMA Channels	2
Number of External Interrupts	5
Number of Serial I/Os	0
Number of Terminals	68
On Chip Data RAM Width	0
Operating Temperature-Max	70 Cel
Operating Temperature-Min	0 Cel
Package Body Material	PLASTIC/EPOXY
Package Code	QCCJ
Package Equivalence Code	LDCC68,1.0SQ
Package Shape	SQUARE
Package Style	CHIP CARRIER Meter
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Power Supplies	5 V
Qualification Status	Not Qualified
RAM (words)	0
Seated Height-Max	4.83 mm
Speed	20 rpm
Sub Category	Microprocessors
Supply Current-Max	90 mA
Supply Voltage-Max	5.5 V
Supply Voltage-Min	4.5 V
Supply Voltage-Nom	5 V
Surface Mount	YES
Technology	CMOS
Temperature Grade	COMMERCIAL
Terminal Form	J BEND
Terminal Pitch	1.27 mm
Terminal Position	QUAD
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Width	24.2316 mm
uPs/uCs/Peripheral ICs Type	MICROPROCESSOR
