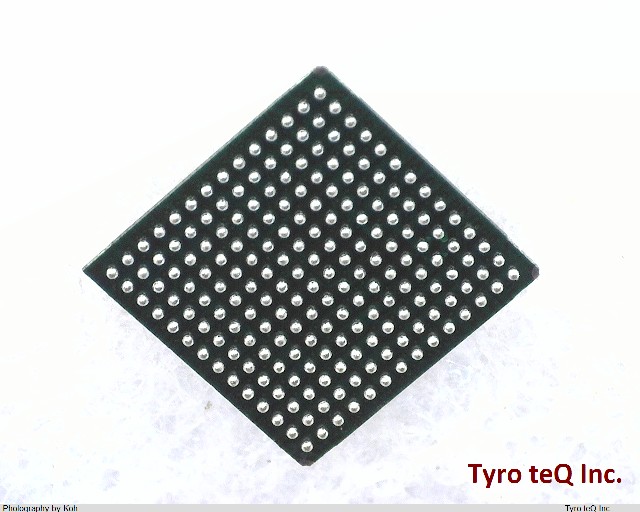

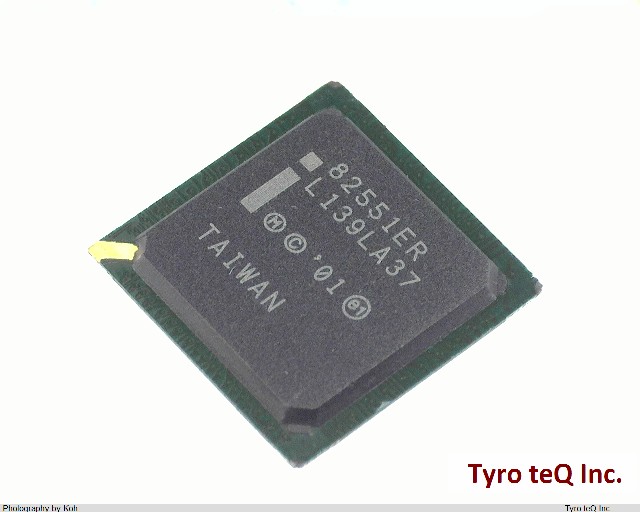

LU82551ER

Name: LU82551ER
Brand: INTEL
SKU: 220008687-0000-0000-0000

LU82551ER - INTEL の商品詳細ページです。

２営業日以内に回答いたします

LU82551ER の詳細情報

型番	LU82551ER
メーカー	INTEL
Address Bus Width	32
Boundary Scan	NO
Clock Frequency-Max	25 MHz
Data Encoding/Decoding Method	NRZ; NRZI; BIPH-LEVEL(MANCHESTER)
Data Transfer Rate-Max	12.5 MBps
External Data Bus Width	32
JESD-30 Code	S-PBGA-B196
JESD-609 Code	e1
Length	15 mm
Low Power Mode	YES
Moisture Sensitivity Level	3
Number of Serial I/Os	1
Number of Terminals	196
Operating Temperature-Max	85 Cel
Operating Temperature-Min	0 Cel
Package Body Material	PLASTIC/EPOXY
Package Code	BGA
Package Equivalence Code	BGA196,14X14,40
Package Shape	SQUARE
Package Style	GRID ARRAY Meter
Peak Reflow Temperature (Cel)	260
Power Supplies	3.3 V
Qualification Status	Not Qualified
Seated Height-Max	1.75 mm
Sub Category	Serial IO/Communication Controllers
Supply Current-Max	155 mA
Supply Voltage-Max	3.6 V
Supply Voltage-Min	3 V
Supply Voltage-Nom	3.3 V
Surface Mount	YES
Technology	CMOS
Temperature Grade	OTHER
Terminal Finish	Tin/Silver/Copper (Sn/Ag/Cu)
Terminal Form	BALL
Terminal Pitch	1 mm
Terminal Position	BOTTOM
Time@Peak Reflow Temperature-Max (s)	30
Width	15 mm
uPs/uCs/Peripheral ICs Type	SERIAL IO/COMMUNICATION CONTROLLER, LAN
