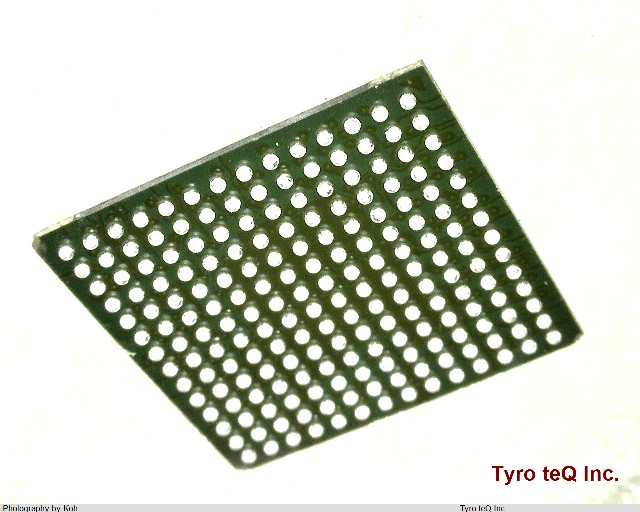

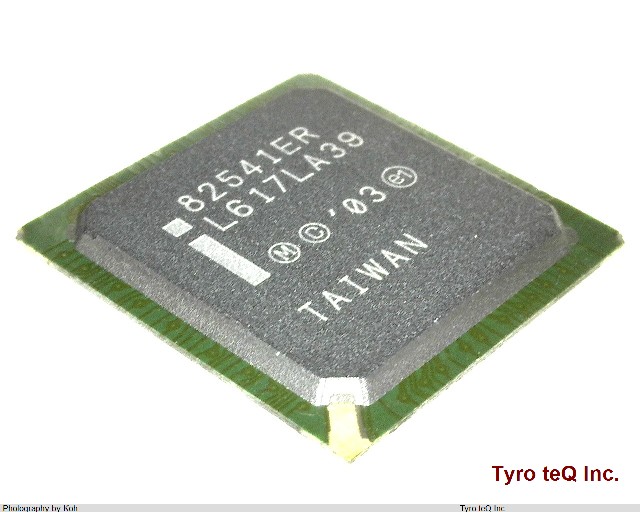

LU82541ER Intel

LU82541ER - INTEL の商品詳細ページです。

1
No Image
  • 個
２営業日以内に回答いたします
この商品のお問い合わせ

LU82541ER の詳細情報

  • 仕様・詳細
  • メーカー情報
型番LU82541ER
メーカーINTEL
Additional Feature ALSO REQUIRES 1.8V AND 3.3V SUPPLIES
Address Bus Width 32
Boundary Scan YES
Bus Compatibility PCI
Clock Frequency-Max 25 MHz
Data Transfer Rate-Max 125 MBps
External Data Bus Width 32
JESD-30 Code S-PBGA-B196
JESD-609 Code e1
Length 15 mm
Low Power Mode YES
Number of Serial I/Os 1
Number of Terminals 196
Operating Temperature-Max 70 Cel
Operating Temperature-Min 0 Cel
Package Body Material PLASTIC/EPOXY
Package Code BGA
Package Equivalence Code BGA196,14X14,40
Package Shape SQUARE
Package Style GRID ARRAY Meter
Peak Reflow Temperature (Cel) NOT SPECIFIED
Power Supplies 1.2,1.8,3.3 V
Qualification Status Not Qualified
Seated Height-Max 1.75 mm
Sub Category Serial IO/Communication Controllers
Supply Voltage-Max 1.26 V
Supply Voltage-Min 1.14 V
Supply Voltage-Nom 1.2 V
Surface Mount YES
Technology CMOS
Temperature Grade COMMERCIAL
Terminal Form BALL
Terminal Pitch 1 mm
Terminal Position BOTTOM
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Width 15 mm
uPs/uCs/Peripheral ICs Type SERIAL IO/COMMUNICATION CONTROLLER, LAN
会社名称Intel Corporation
設立1989
所在地2200 Mission College Blvd. Santa Clara, CA 95054-1549 USA
URLhttp://www.intel.com/

LU82541ERのレビュー

LU82541ER のご注文について
