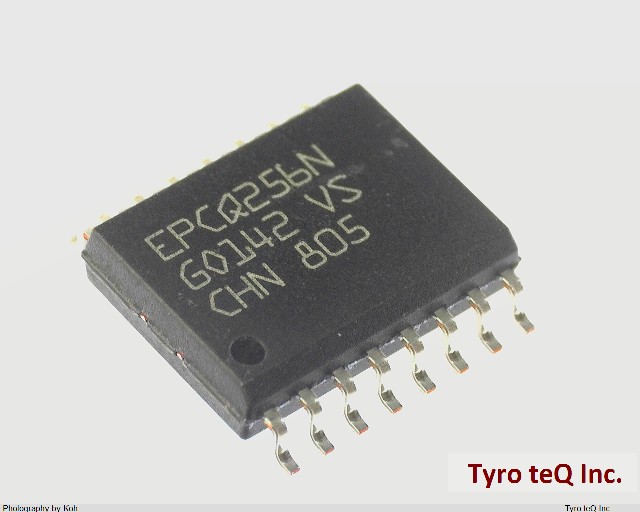

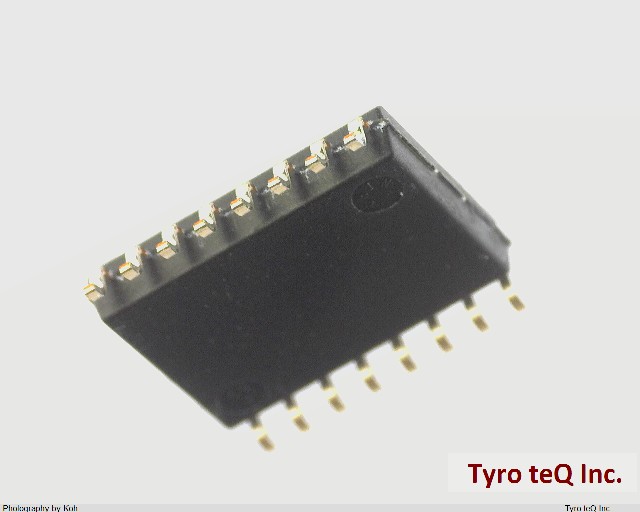

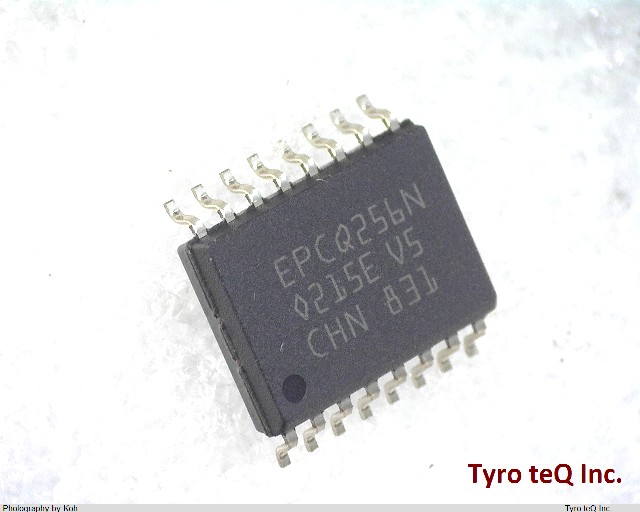

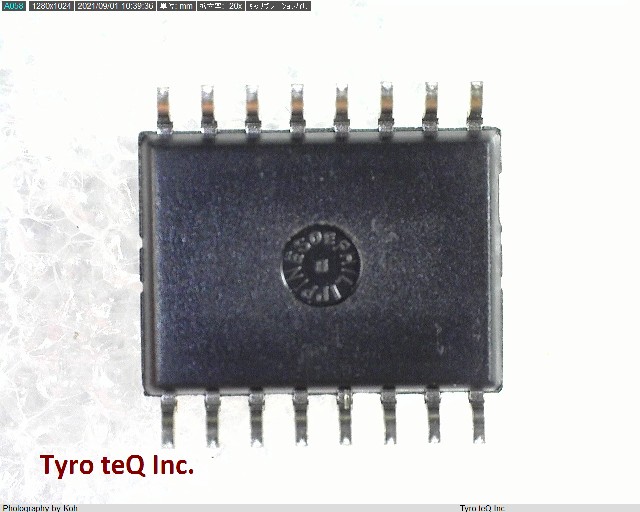

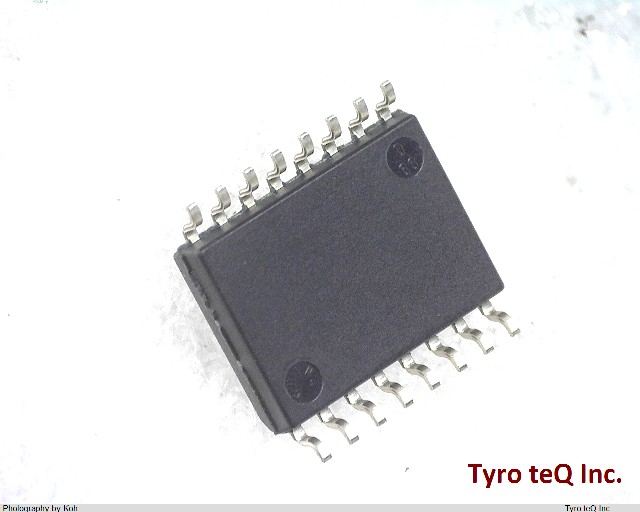

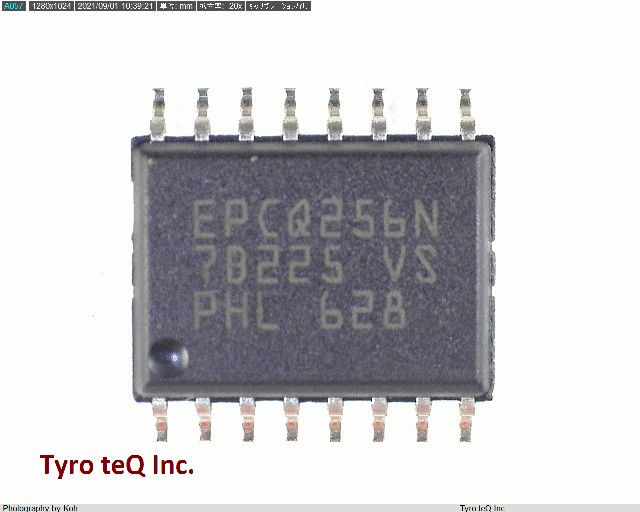

EPCQ256SI16N

Name: EPCQ256SI16N
Brand: INTEL
SKU: 150188471-0000-0000-0000

EPCQ256SI16N - INTEL の商品詳細ページです。

２営業日以内に回答いたします

EPCQ256SI16N の詳細情報

型番	EPCQ256SI16N
メーカー	INTEL
Clock Frequency-Max (fCLK)	20 MHz
Data Retention Time-Min	20
Endurance	100000 Write/Erase Cycles
JESD-30 Code	R-PDSO-G16
JESD-609 Code	e4
Length	10.3 mm
Memory Density	268435456 bit
Memory IC Type	CONFIGURATION MEMORY
Memory Width	1
Moisture Sensitivity Level	3
Number of Functions	1
Number of Terminals	16
Number of Words	33554432 words
Number of Words Code	32M
Operating Mode	SYNCHRONOUS
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Organization	32MX8
Output Characteristics	3-STATE
Package Body Material	PLASTIC/EPOXY
Package Code	SOP
Package Equivalence Code	SOP16,.4
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE Meter
Parallel/Serial	SERIAL
Peak Reflow Temperature (Cel)	260
Power Supplies	3/3.3 V
Programming Voltage	3 V
Qualification Status	Not Qualified
Seated Height-Max	2.65 mm
Serial Bus Type	SPI
Standby Current-Max	1.0E-5 Amp
Sub Category	Flash Memories
Supply Current-Max	0.02 mA
Supply Voltage-Max (Vsup)	3.6 V
Supply Voltage-Min (Vsup)	2.7 V
Supply Voltage-Nom (Vsup)	3.3 V
Surface Mount	YES
Technology	CMOS
Temperature Grade	INDUSTRIAL
Terminal Finish	NICKEL PALLADIUM GOLD
Terminal Form	GULL WING
Terminal Pitch	1.27 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	40
Type	NOR TYPE
Width	7.5 mm
Write Cycle Time-Max (tWC)	8 ms
