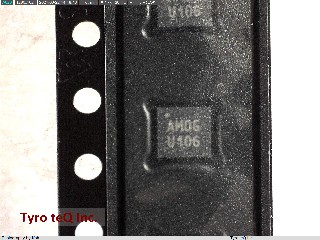

EP53A8HQI

Name: EP53A8HQI
Brand: INTEL
SKU: 150188827-0000-0000-0000

EP53A8HQI - INTEL の商品詳細ページです。

２営業日以内に回答いたします

EP53A8HQI の詳細情報

型番	EP53A8HQI
メーカー	INTEL
Additional Feature	ADJUSTABLE OUTPUT MODE FROM 1.8 TO 3.3 VOLT
Analog IC - Other Type	SWITCHING REGULATOR
Control Mode	VOLTAGE-MODE
Control Technique	PULSE WIDTH MODULATION
Input Voltage-Max	5.5 V
Input Voltage-Min	2.4 V
Input Voltage-Nom	3.6 V
JESD-30 Code	S-PQCC-N16
JESD-609 Code	e3
Length	3 mm
Moisture Sensitivity Level	3
Number of Functions	1
Number of Terminals	16
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Output Current-Max	1 A
Package Body Material	PLASTIC/EPOXY
Package Code	QCCN
Package Equivalence Code	LCC16,.12SQ,20
Package Shape	SQUARE
Package Style	CHIP CARRIER Meter
Peak Reflow Temperature (Cel)	260
Qualification Status	Not Qualified
Seated Height-Max	1.15 mm
Sub Category	Switching Regulator or Controllers
Surface Mount	YES
Switcher Configuration	BUCK
Switching Frequency-Max	5000 kHz
Temperature Grade	INDUSTRIAL
Terminal Finish	MATTE TIN
Terminal Form	NO LEAD
Terminal Pitch	0.5 mm
Terminal Position	QUAD
Time@Peak Reflow Temperature-Max (s)	10
Width	3 mm
