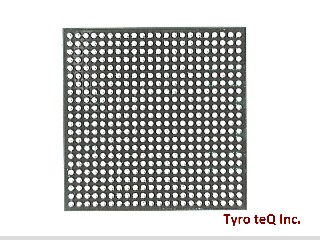

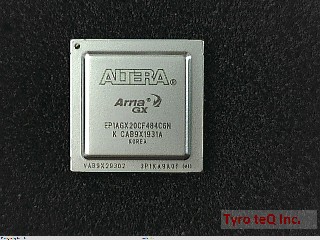

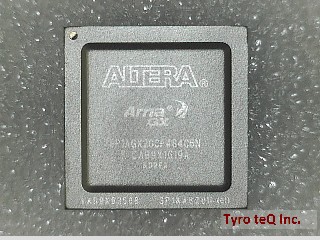

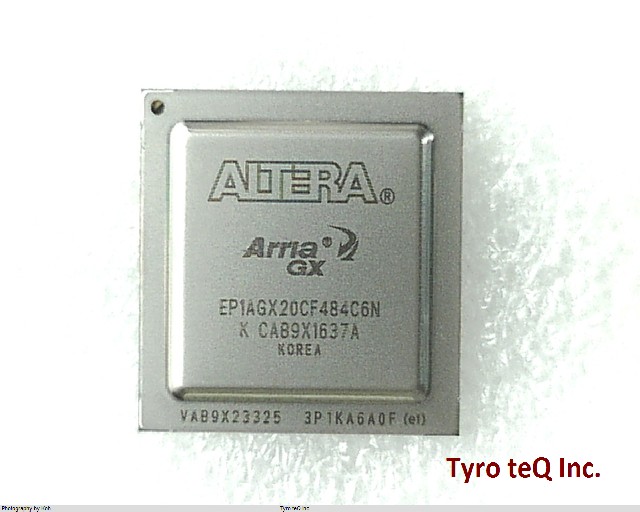

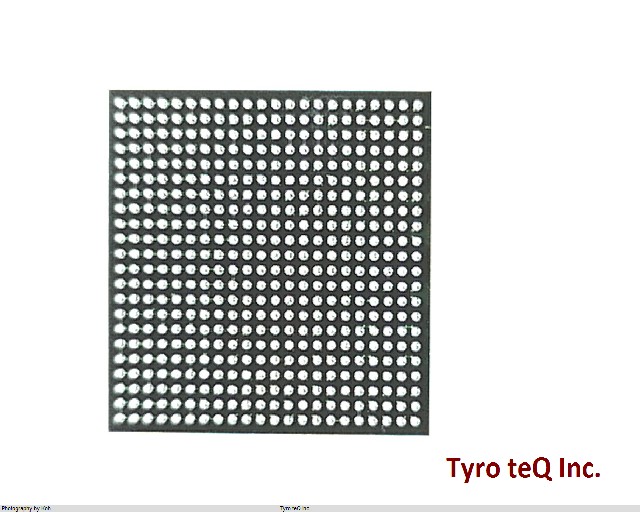

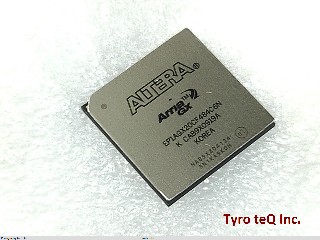

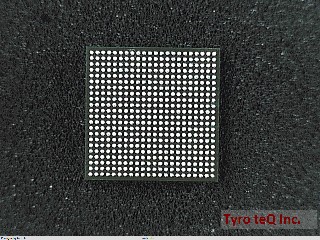

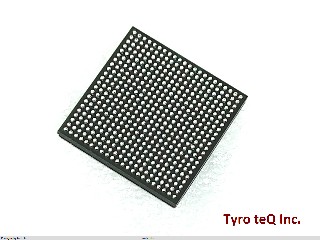

EP1AGX20CF484C6N

Name: EP1AGX20CF484C6N
Brand: INTEL
SKU: 150188668-0000-0000-0000

EP1AGX20CF484C6N - INTEL の商品詳細ページです。

２営業日以内に回答いたします

EP1AGX20CF484C6N の詳細情報

型番	EP1AGX20CF484C6N
メーカー	INTEL
Clock Frequency-Max	640 MHz
JESD-30 Code	S-PBGA-B484
JESD-609 Code	e1
Length	23 mm
Moisture Sensitivity Level	3
Number of CLBs	21580
Number of Inputs	230
Number of Outputs	230
Number of Terminals	484
Operating Temperature-Max	85 Cel
Operating Temperature-Min	0 Cel
Organization	21580 CLBS
Package Body Material	PLASTIC/EPOXY
Package Code	BGA
Package Equivalence Code	BGA484,22X22,40
Package Shape	SQUARE
Package Style	GRID ARRAY Meter
Peak Reflow Temperature (Cel)	245
Power Supplies	1.2,2.5/3.3 V
Programmable Logic Type	FIELD PROGRAMMABLE GATE ARRAY
Qualification Status	Not Qualified
Seated Height-Max	3.5 mm
Sub Category	Field Programmable Gate Arrays
Supply Voltage-Max	1.25 V
Supply Voltage-Min	1.15 V
Supply Voltage-Nom	1.2 V
Surface Mount	YES
Temperature Grade	OTHER
Terminal Finish	TIN SILVER COPPER
Terminal Form	BALL
Terminal Pitch	1 mm
Terminal Position	BOTTOM
Time@Peak Reflow Temperature-Max (s)	30
Width	23 mm
