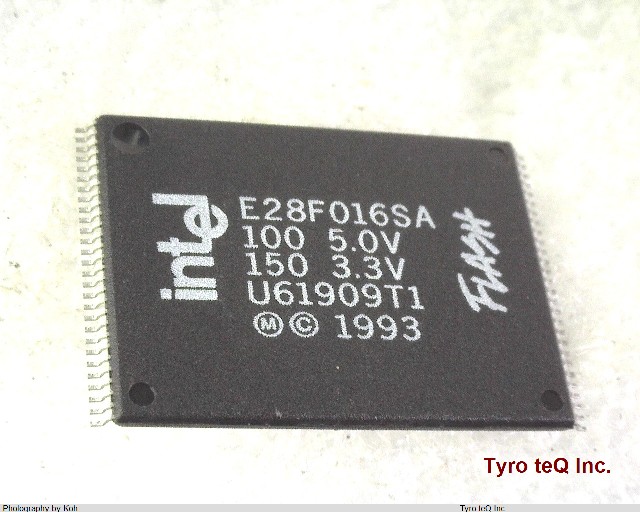

E28F016SA-100
1
-
- 個
２営業日以内に回答いたします
E28F016SA-100 の詳細情報
- 仕様・詳細
- メーカー情報
| 型番 | E28F016SA-100 |
|---|---|
| メーカー | INTEL |
| Access Time-Max (ns) | 100 |
| Additional Feature | ALSO CAN BE CONFIGURED AS 1M X 16 |
| Alternate Memory Width | 8 |
| Command User Interface | YES |
| DLA Qualification | Not Qualified |
| Data Polling | NO |
| JESD-30 Code | R-PDSO-G56 |
| Length (mm) | 18.4 |
| Memory Density (bits) | 16777216 |
| Memory IC Type | FLASH |
| Memory Organization | 1MX16 |
| Memory Width | 16 |
| Number of Functions | 1 |
| Number of Sectors/Size | 32 |
| Number of Terminals | 56 |
| Number of Words (words) | 1048576 |
| Number of Words Code | 1M |
| Operating Mode | ASYNCHRONOUS |
| Operating Temperature-Max (Cel) | 70 |
| Operating Temperature-Min (Cel) | 0 |
| Output Characteristics | 3-STATE |
| Package Body Material | PLASTIC/EPOXY |
| Package Code | TSSOP |
| Package Equivalence Code | TSSOP56,.8,20 |
| Package Shape | RECTANGULAR |
| Package Style | SMALL OUTLINE, THIN PROFILE, SHRINK PITCH Meter |
| Page Size (words) | 128/256 |
| Parallel/Serial | PARALLEL |
| Power Supplies (V) | 5 |
| Programming Voltage (V) | 12 |
| Ready/Busy | YES |
| Seated Height-Max (mm) | 1.2 |
| Sector Size (words) | 64K |
| Standby Current-Max (A) | 5.0E-6 |
| Sub Category | Flash Memories |
| Supply Current-Max (mA) | 60 |
| Supply Voltage-Max (V) | 5.5 |
| Supply Voltage-Min (V) | 4.5 |
| Supply Voltage-Nom (V) | 5 |
| Surface Mount | YES |
| Technology | MOS |
| Temperature Grade | COMMERCIAL |
| Terminal Form | GULL WING |
| Terminal Pitch (mm) | 0.5 |
| Terminal Position | DUAL |
| Toggle Bit | NO |
| Type | NOR TYPE |
| Width (mm) | 14 |
| 会社名称 | Intel Corporation |
|---|---|
| 設立 | 1989 |
| 所在地 | 2200 Mission College Blvd. Santa Clara, CA 95054-1549 USA |
| URL | http://www.intel.com/ |
