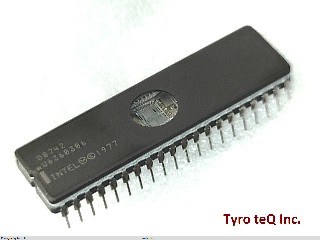

D8742

Name: D8742
Brand: INTEL
SKU: 140000814-0000-0000-0000

D8742 - INTEL の商品詳細ページです。

２営業日以内に回答いたします

D8742 の詳細情報

型番	D8742
メーカー	INTEL
ADC Channels	NO
Additional Feature	ADDITIONAL SUPPLY VDD = 5V+/-10%
Address Bus Width	0
Bit Size	8
Boundary Scan	NO
CPU Family	8048
Clock Frequency-Max	12 MHz
DAC Channels	NO
DMA Channels	NO
External Data Bus Width	8
Format	FIXED POINT
Integrated Cache	NO
JESD-30 Code	R-GDIP-T40
JESD-609 Code	e0
Length	52.325 mm
Low Power Mode	NO
Number of DMA Channels	0
Number of External Interrupts	0
Number of I/O Lines	16
Number of Serial I/Os	0
Number of Terminals	40
Number of Timers	1
On Chip Data RAM Width	8
Operating Temperature-Max	70 Cel
Operating Temperature-Min	0 Cel
PWM Channels	NO
Package Body Material	CERAMIC
Package Code	DIP
Package Equivalence Code	DIP40,.6
Package Shape	RECTANGULAR
Package Style	IN-LINE Meter
Power Supplies	5 V
Qualification Status	Not Qualified
RAM (bytes)	128
ROM (words)	2048
ROM Programmability	UVPROM
Seated Height-Max	5.72 mm
Speed	0.8 rpm
Sub Category	Microcontrollers
Supply Current-Max	115 mA
Supply Voltage-Max	5.5 V
Supply Voltage-Min	4.5 V
Supply Voltage-Nom	5 V
Surface Mount	NO
Technology	MOS
Temperature Grade	COMMERCIAL
Terminal Finish	TIN LEAD
Terminal Form	THROUGH-HOLE
Terminal Pitch	2.54 mm
Terminal Position	DUAL
