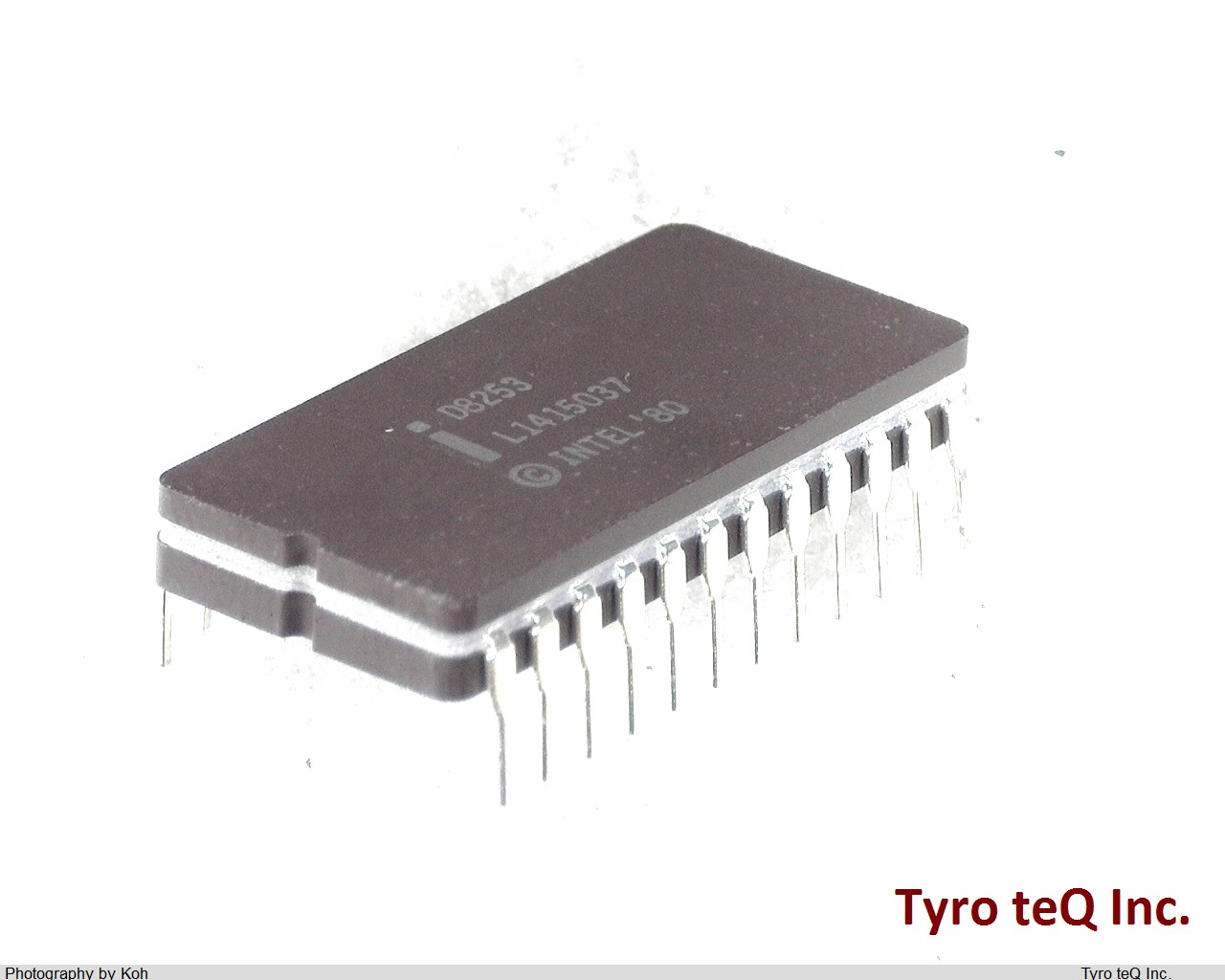

D8253

Name: D8253
Brand: INTEL
SKU: 140007544-0000-0000-0000

D8253 - INTEL の商品詳細ページです。

２営業日以内に回答いたします

D8253 の詳細情報

型番	D8253
メーカー	INTEL
Boundary Scan	NO
Bus Compatibility	8085A; 8080A
Clock Frequency-Max	4 MHz
Communication Protocol	ASYNC, BIT; SYNC, BYTE; SYNC, SDLC; X.25; BISYNC; EXT SYNC
Data Encoding/Decoding Method	NRZ; NRZI-SPACE; BIPH-MARK(FM1); BIPH-SPACE(FM0); BIPH-LEVEL(MANCHESTER)
Data Transfer Rate-Max	0.125 MBps
External Data Bus Width	8
Information Access Method	PARALLEL, DIRECT ADDRESS
JESD-30 Code	R-CDIP-T24
JESD-609 Code	e0
Length	31.9405 mm
Low Power Mode	NO
Number of Bits	16
Number of DMA Channels	0
Number of I/O Lines	8
Number of Serial I/Os	2
Number of Terminals	24
Number of Timers	3
On Chip Data RAM Width	0
Operating Temperature-Max	70 Cel
Operating Temperature-Min	0 Cel
Package Body Material	CERAMIC, GLASS-SEALED
Package Code	DIP
Package Equivalence Code	DIP40,.6
Package Shape	RECTANGULAR
Package Style	IN-LINE Meter
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Power Supplies	5 V
Qualification Status	Not Qualified
RAM (words)	0
Seated Height-Max	5.715 mm
Sub Category	Other Microprocessor ICs
Supply Current-Max	140 mA
Supply Voltage-Max	5.5 V
Supply Voltage-Min	4.5 V
Supply Voltage-Nom	5 V
Surface Mount	NO
Technology	CMOS
Temperature Grade	COMMERCIAL
Terminal Finish	TIN LEAD
Terminal Form	THROUGH-HOLE
Terminal Pitch	2.54 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Width	15.24 mm
uPs/uCs/Peripheral ICs Type	SERIAL IO/COMMUNICATION CONTROLLER, MULTI PROTOCOL
