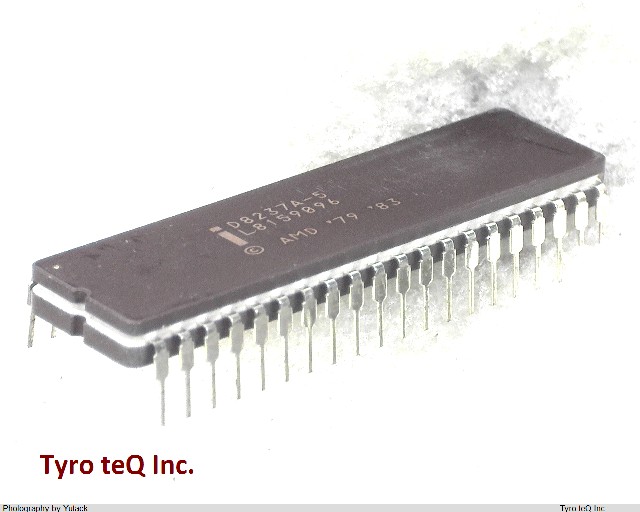

D8237A-5

Name: D8237A-5
Brand: INTEL
SKU: 140075207-0000-0000-0000

D8237A-5 - INTEL の商品詳細ページです。

２営業日以内に回答いたします

D8237A-5 の詳細情報

型番	D8237A-5
メーカー	INTEL
Additional Feature	SINGLE/BLOCK/DEMAND TRANSFER MODES; FIXED & ROTATIONAL PRIORITY INTERRUPT MODES
Address Bus Width	8
Bus Compatibility	8080; 8085
Clock Frequency-Max	5 MHz
External Data Bus Width	8
JESD-30 Code	R-CDIP-T40
JESD-609 Code	e0
Length	52.2605 mm
Number of DMA Channels	4
Number of Terminals	40
Operating Temperature-Max	70 Cel
Operating Temperature-Min	0 Cel
Package Body Material	CERAMIC, GLASS-SEALED
Package Code	DIP
Package Equivalence Code	DIP40,.6
Package Shape	RECTANGULAR
Package Style	IN-LINE Meter
Power Supplies	5 V
Qualification Status	Not Qualified
Seated Height-Max	5.588 mm
Sub Category	DMA Controllers
Supply Current-Max	150 mA
Supply Voltage-Max	5.25 V
Supply Voltage-Min	4.75 V
Supply Voltage-Nom	5 V
Surface Mount	NO
Technology	NMOS
Temperature Grade	COMMERCIAL
Terminal Finish	TIN LEAD
Terminal Form	THROUGH-HOLE
Terminal Pitch	2.54 mm
Terminal Position	DUAL
Width	15.24 mm
uPs/uCs/Peripheral ICs Type	DMA CONTROLLER
