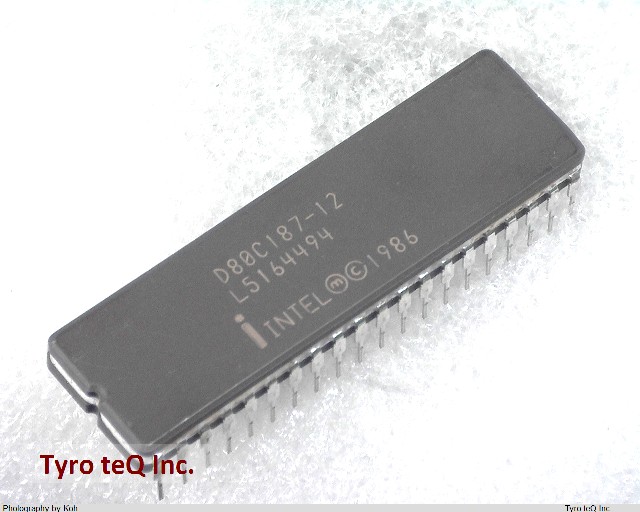

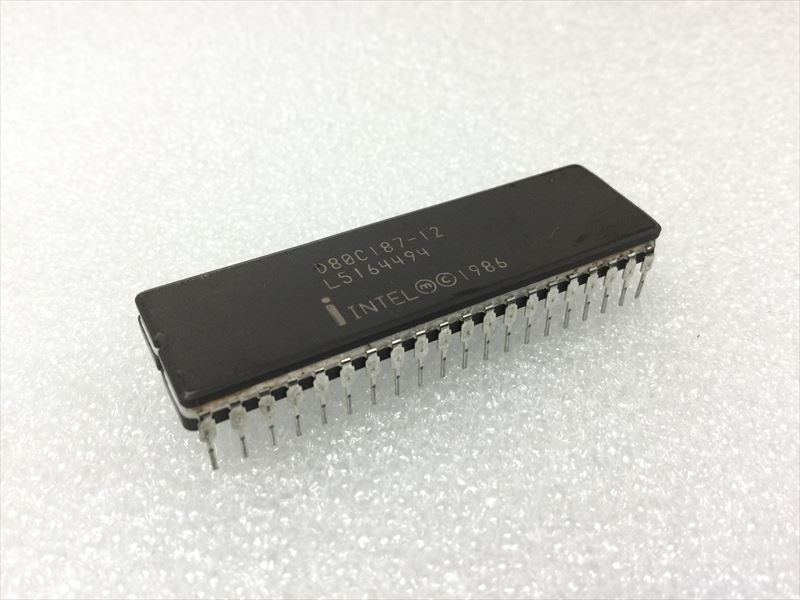

D80C18712
1
-
- 個
２営業日以内に回答いたします
D80C18712 の詳細情報
- 仕様・詳細
- メーカー情報
| 型番 | D80C18712 |
|---|---|
| メーカー | INTEL |
| Address Bus Width | 0 |
| Barrel Shifter | YES |
| Boundary Scan | NO |
| Bus Compatibility | 80C186 |
| Clock Frequency-Max | 12.5 MHz |
| External Data Bus Width | 16 |
| JESD-30 Code | R-GDIP-T40 |
| Length | 52.325 mm |
| Number of Terminals | 40 |
| Operating Temperature-Max | 85 Cel |
| Operating Temperature-Min | 0 Cel |
| Package Body Material | CERAMIC, GLASS-SEALED |
| Package Code | DIP |
| Package Equivalence Code | DIP40,.6 |
| Package Shape | RECTANGULAR |
| Package Style | IN-LINE Meter |
| Power Supplies | 5 V |
| Qualification Status | Not Qualified |
| Seated Height-Max | 5.72 mm |
| Sub Category | Math Processors |
| Supply Current-Max | 135 mA |
| Supply Voltage-Max | 5.5 V |
| Supply Voltage-Min | 4.5 V |
| Supply Voltage-Nom | 5 V |
| Surface Mount | NO |
| Technology | CMOS |
| Temperature Grade | OTHER |
| Terminal Form | THROUGH-HOLE |
| Terminal Pitch | 2.54 mm |
| Terminal Position | DUAL |
| Width | 15.24 mm |
| uPs/uCs/Peripheral ICs Type | MATH PROCESSOR, COPROCESSOR |
| 会社名称 | Intel Corporation |
|---|---|
| 設立 | 1989 |
| 所在地 | 2200 Mission College Blvd. Santa Clara, CA 95054-1549 USA |
| URL | http://www.intel.com/ |
