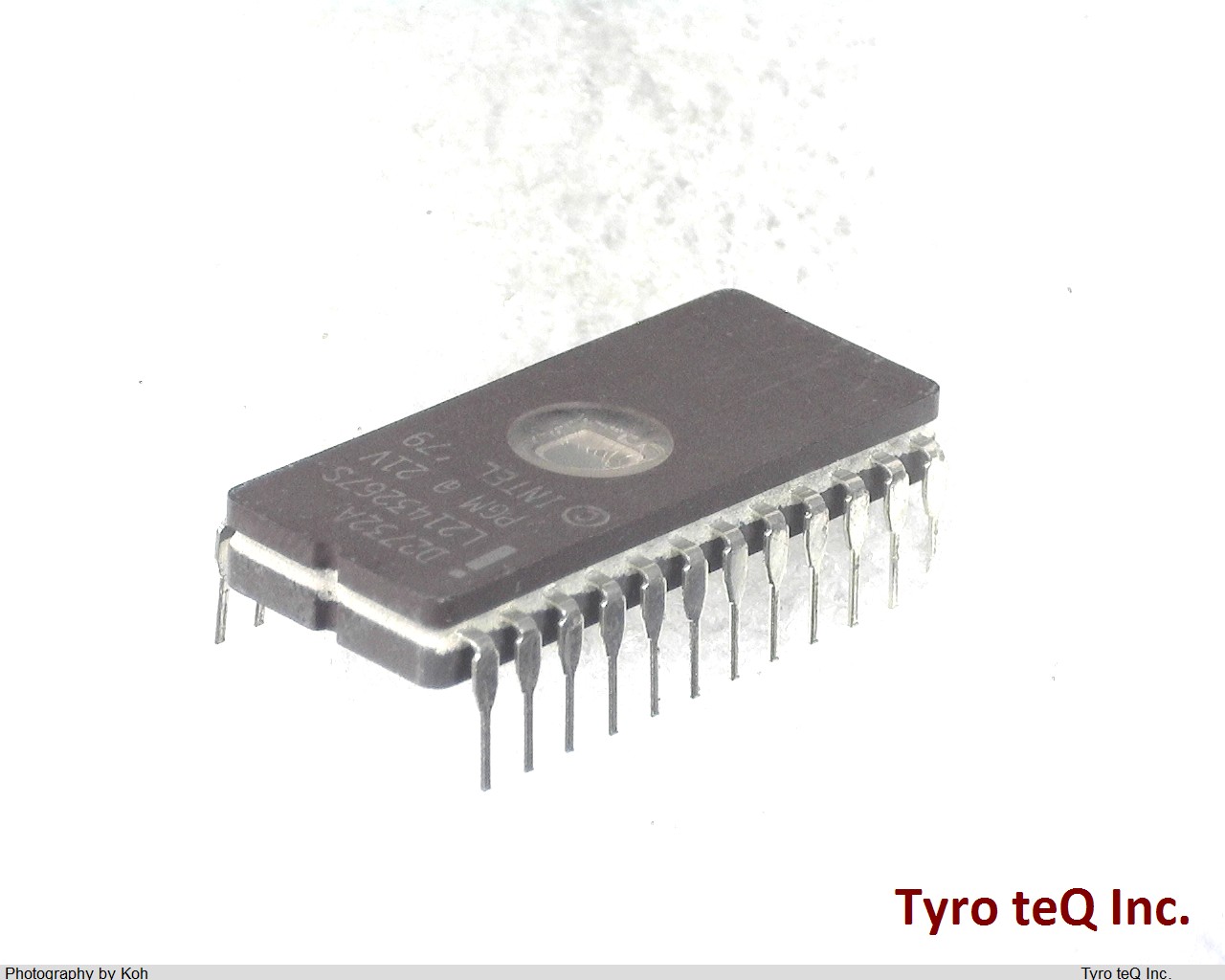

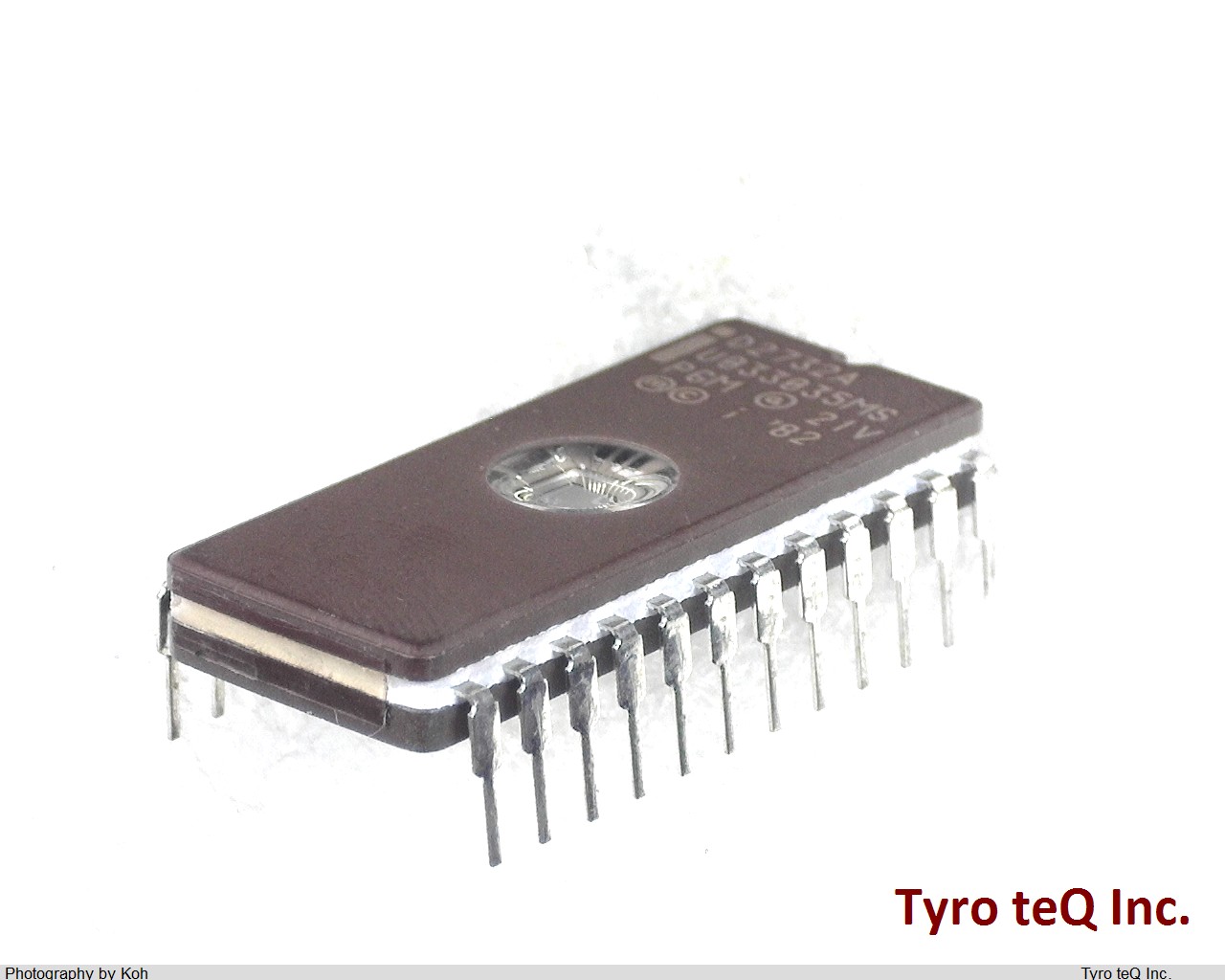

D2732A

Name: D2732A
Brand: INTEL
SKU: 140000122-0000-0000-0000

D2732A - INTEL の商品詳細ページです。

２営業日以内に回答いたします

D2732A の詳細情報

型番	D2732A
メーカー	INTEL
Access Time-Max	200 ns
I/O Type	COMMON
JESD-30 Code	R-XDIP-T24
JESD-609 Code	e0
Memory Density	32768 bit
Memory IC Type	UVPROM
Memory Width	8
Number of Terminals	24
Number of Words	4096 words
Number of Words Code	4K
Operating Temperature-Max	70 Cel
Operating Temperature-Min	0 Cel
Organization	4KX8
Output Characteristics	3-STATE
Package Body Material	CERAMIC
Package Code	DIP
Package Equivalence Code	DIP24,.6
Package Shape	RECTANGULAR
Package Style	IN-LINE Meter
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Power Supplies	5 V
Programming Voltage	21 V
Qualification Status	Not Qualified
Sub Category	EPROMs
Supply Current-Max	0.1 mA
Supply Voltage-Nom (Vsup)	5 V
Surface Mount	NO
Technology	MOS
Temperature Grade	COMMERCIAL
Terminal Finish	Tin/Lead (Sn/Pb)
Terminal Form	THROUGH-HOLE
Terminal Pitch	2.54 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
