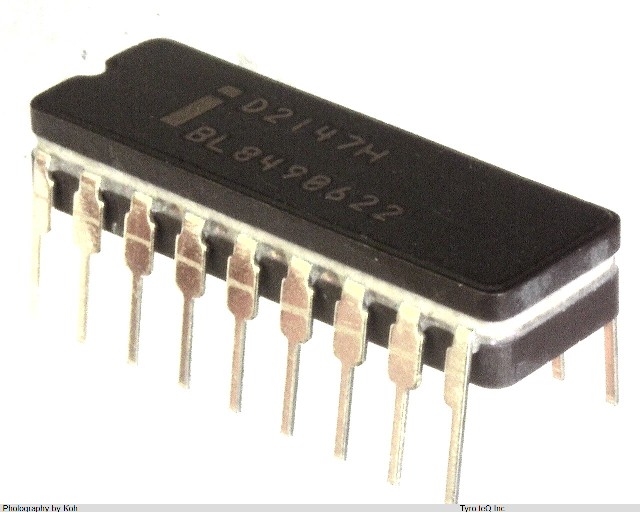

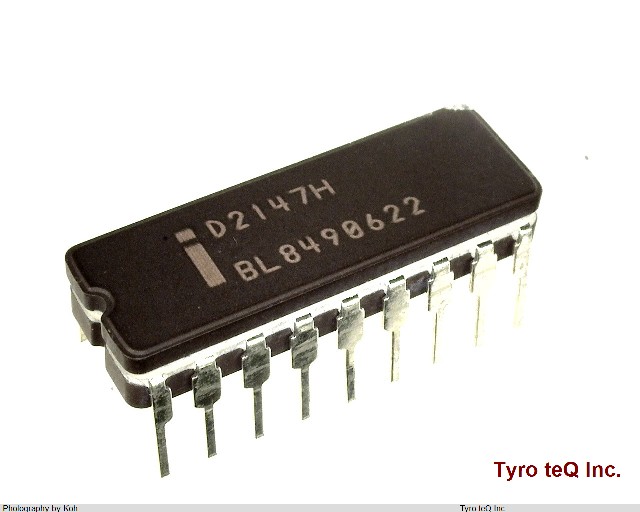

D2147H

Name: D2147H
Brand: INTEL
SKU: 400062294-0000-0000-0000

D2147H - INTEL の商品詳細ページです。

２営業日以内に回答いたします

D2147H の詳細情報

型番	D2147H
メーカー	INTEL
Access Time-Max	35 ns
I/O Type	SEPARATE
JESD-30 Code	R-XDIP-T18
JESD-609 Code	e0
Memory Density	4096 bit
Memory IC Type	STANDARD SRAM
Memory Width	1
Number of Terminals	18
Number of Words	4096 words
Number of Words Code	4K
Operating Mode	ASYNCHRONOUS
Operating Temperature-Max	70 Cel
Operating Temperature-Min	0 Cel
Organization	4KX1
Output Characteristics	3-STATE
Package Body Material	CERAMIC
Package Code	DIP
Package Equivalence Code	DIP18,.3
Package Shape	RECTANGULAR
Package Style	IN-LINE Meter
Parallel/Serial	PARALLEL
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Power Supplies	5 V
Qualification Status	Not Qualified
Standby Voltage-Min	4.5 V
Sub Category	SRAMs
Supply Current-Max	0.125 mA
Supply Voltage-Nom (Vsup)	5 V
Surface Mount	NO
Technology	MOS
Temperature Grade	COMMERCIAL
Terminal Finish	Tin/Lead (Sn/Pb)
Terminal Form	THROUGH-HOLE
Terminal Pitch	2.54 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
