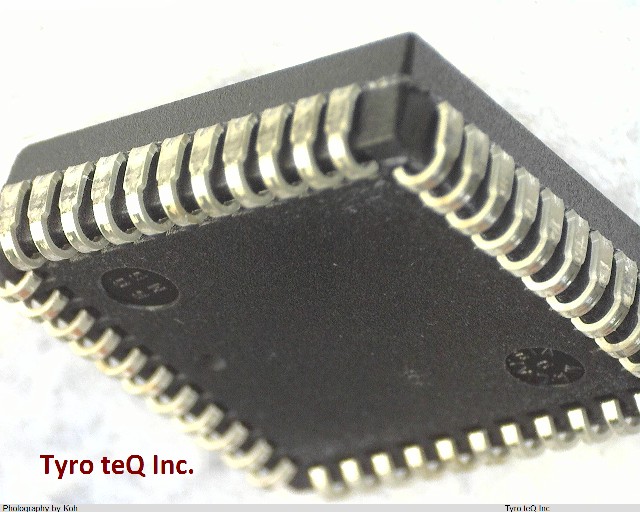

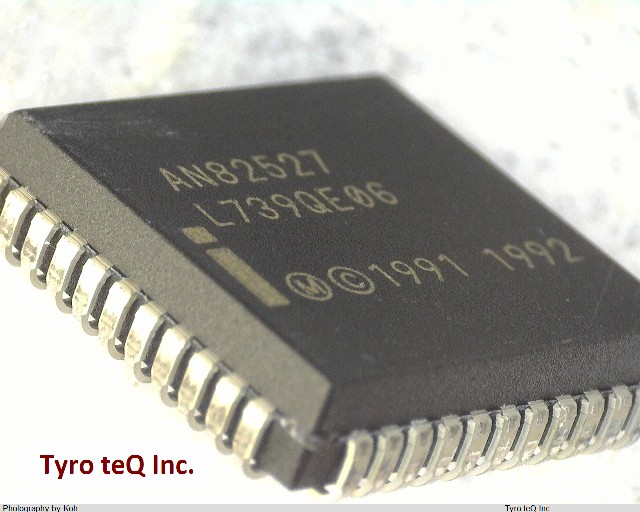

AN82527

Name: AN82527
Brand: INTEL
SKU: 110075930-0000-0000-0000

AN82527 - INTEL の商品詳細ページです。

２営業日以内に回答いたします

AN82527 の詳細情報

型番	AN82527
メーカー	INTEL
Additional Feature	IT IS ALSO AVAILABLE IN QFP-44 PACKAGE
Address Bus Width	16
Boundary Scan	NO
Clock Frequency-Max	16 MHz
Data Encoding/Decoding Method	NRZ
External Data Bus Width	16
JESD-30 Code	S-PQCC-J44
Length	16.5862 mm
Low Power Mode	YES
Number of DMA Channels	0
Number of I/O Lines	16
Number of Serial I/Os	2
Number of Terminals	44
On Chip Data RAM Width	8
Operating Temperature-Max	125 Cel
Operating Temperature-Min	-40 Cel
Package Body Material	PLASTIC/EPOXY
Package Code	QCCJ
Package Equivalence Code	LDCC44,.7SQ
Package Shape	SQUARE
Package Style	CHIP CARRIER Meter
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Power Supplies	5 V
Qualification Status	Not Qualified
RAM (words)	256
Seated Height-Max	4.57 mm
Sub Category	Other Microprocessor ICs
Supply Current-Max	50 mA
Supply Voltage-Max	5.5 V
Supply Voltage-Min	4.5 V
Supply Voltage-Nom	5 V
Surface Mount	YES
Technology	CMOS
Temperature Grade	AUTOMOTIVE
Terminal Form	J BEND
Terminal Pitch	1.27 mm
Terminal Position	QUAD
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Width	16.5862 mm
uPs/uCs/Peripheral ICs Type	SERIAL IO/COMMUNICATION CONTROLLER, LAN
